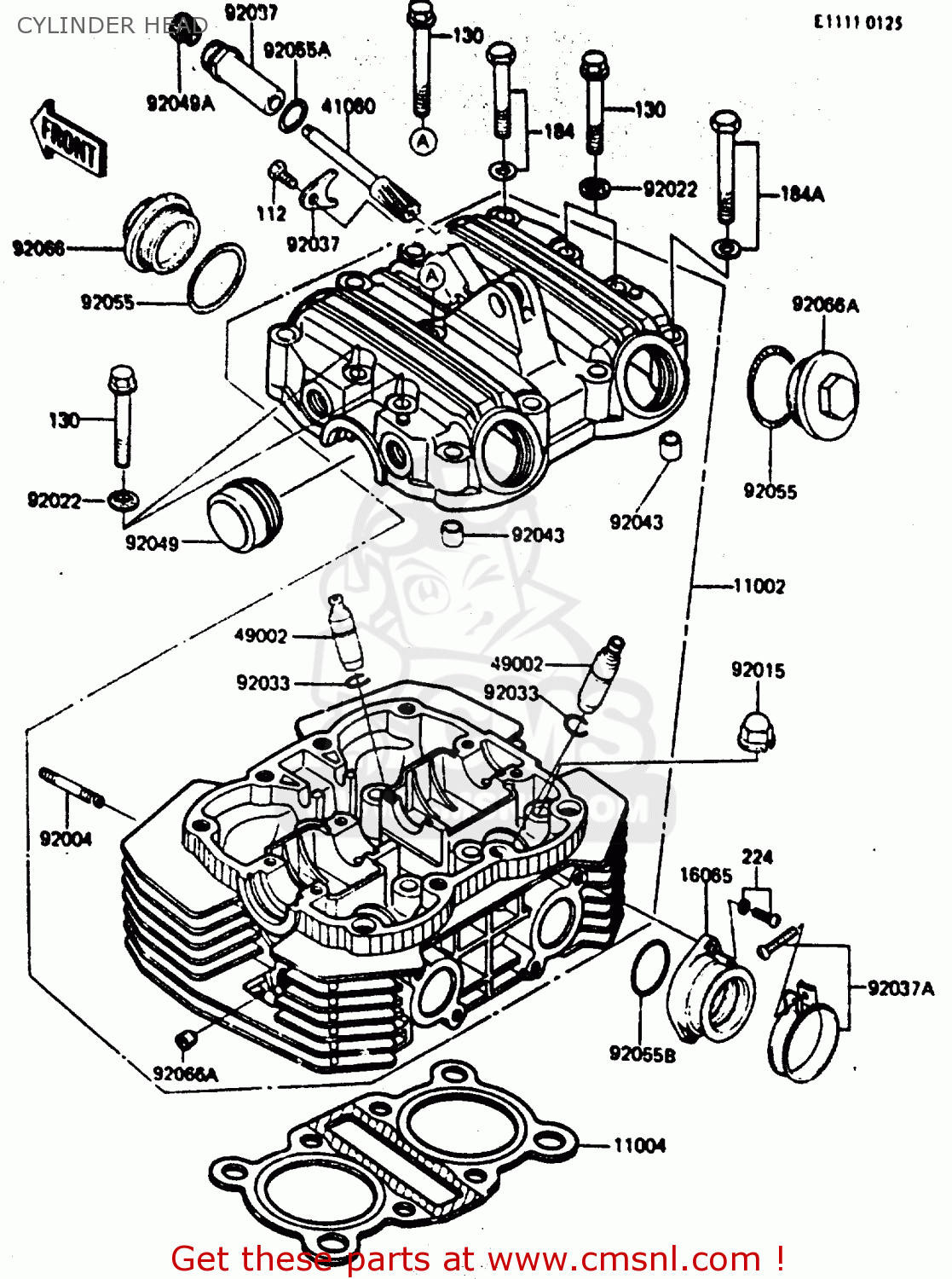

CYLINDER HEAD

ref

part #

description

quantity

11002

110021170
ref: 11002

HEAD-ASSY-CYLINDER,F.

€ 1,294.00

11004

110041009
ref: 11004

GASKET,HEAD (MCA)

€ 28.00

16065

160651069
ref: 16065

HOLDER-CARBURETOR

€ 30.00

41060

410601020
ref: 41060

GEAR-METER,SCREW

€ 16.00

49002

490021021
ref: 49002

GUIDE-VALVE

€ 25.50

92004

920041121
ref: 92004

STUD,8X30

€ 3.50

92015

920151151
ref: 92015

NUT,CAP,8MM

€ 3.00

92022

920221461
ref: 92022

WASHER,SEAL,6.3X13X1.

€ 1.00

92033

92036023
ref: 92033

CIRCLIP,VALVE GUIDE

€ 0.50

92037

920371030
ref: 92037

CLAMP,METER GEAR

€ 2.00

92037A

920371304
ref: 92037A

CLAMP,ID=53,BLACK

€ 7.00

92043

920431265
ref: 92043

PIN,9.2X12X14

€ 4.50

92049

920491152
ref: 92049

SEAL-OIL,PLUG

€ 8.50

92049A

92050075
ref: 92049A

OIL SEAL,TACHOMETER

€ 7.50

92055

920551005
ref: 92055

RING-O,35.8X3.0

€ 3.50

92055A

920551021
ref: 92055A

RING-O,13X1.9

€ 4.50

92055B

920551155
ref: 92055B

RING-O,33.2MM

€ 10.00

92066

920661151
ref: 92066

PLUG,M36X1.5

€ 9.50

92066A

920661173
ref: 92066A

PLUG,PT1/8X7

€ 3.50

92087

920871001
ref: 92087

BUSHING-METER GEAR

€ 18.00

112

112C0614
ref: 112

BOLT,6X14,BLACK

€ 3.00

130

130J0650
ref: 130

BOLT-FLANGED,6X50,BLA

€ 2.50

184

184J0850
ref: 184

BOLT-UPSET-WP-SMALL,8

€ 3.00

184A

184J0860
ref: 184A

BOLT-UPSET-WP-SMALL,8

€ 3.00

224

224C0618
ref: 224

SCREW-PAN-WP-CROS,6X1

€ 2.00

all assemblies
