CHANGE DRUM/SHIFT FORK
ER250B2 SCORPION 1984 USA

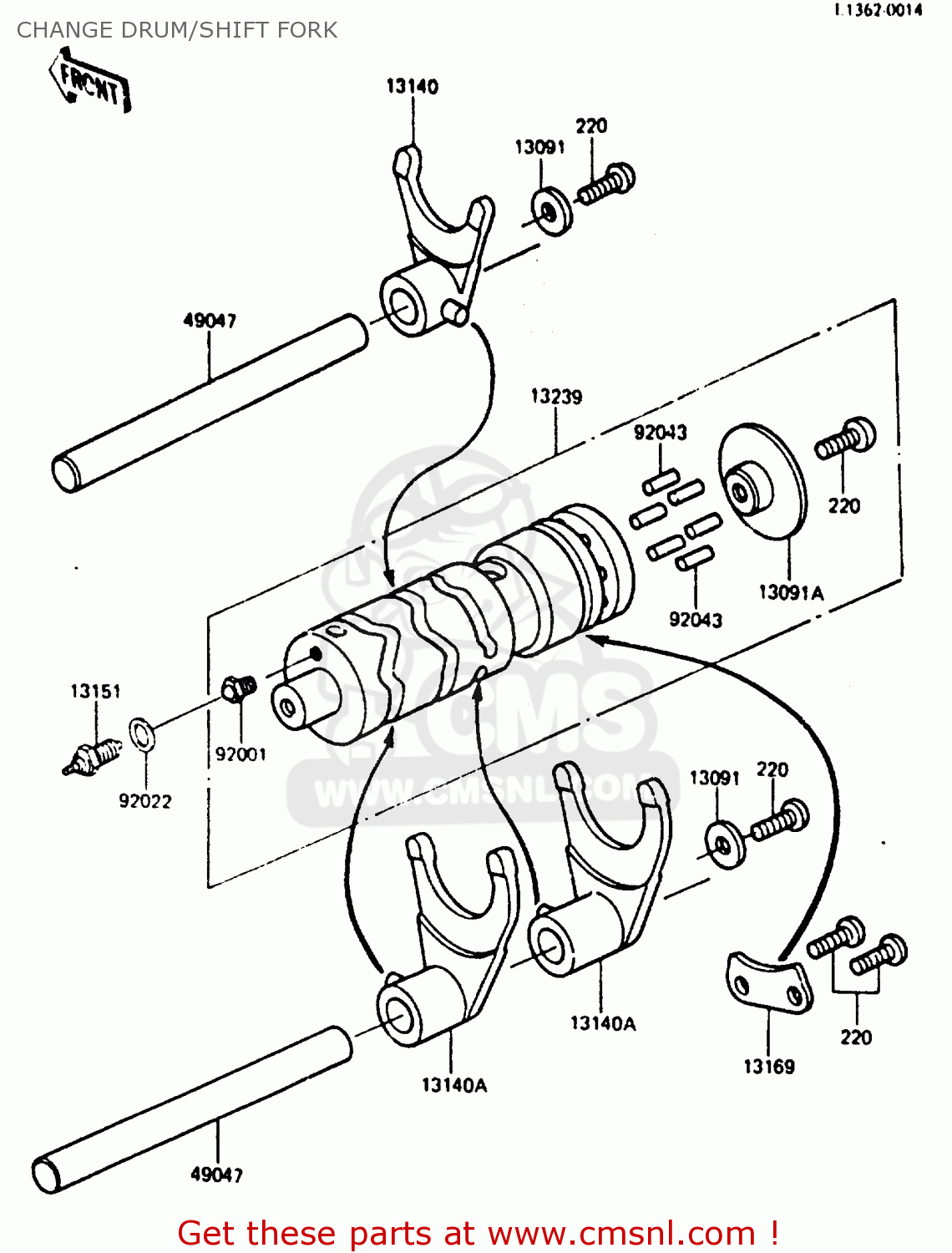

Change drum/shift fork diagram ER250B2 SCORPION 1984 USA
CHANGE DRUM/SHIFT FORK ER250B2 SCORPION 1984 USA
×
prices are in EUR
ref
part #
description
quantity
13091
13091011
ref: 13091
HOLDER,CLUTCH SPRING
€ 2.50
13091A
130911029
ref: 13091A
HOLDER,CHANGE DRUM
€ 8.00
13140
131401114
ref: 13140
FORK-SHIFT,DRIVE
€ 51.00
13140A
131401115
ref: 13140A
FORK-SHIFT,OUTPUT
€ 51.00
13151
131511008
ref: 13151
SWITCH,NEUTRAL
€ 16.00
13169
13169012
ref: 13169
PLATE,CHANGE DRAM
€ 11.50
13239
132391042
ref: 13239
DRUM-ASSY-CHANGE
€ 140.00
49047
490471007
ref: 49047
ROD-SHIFT,12X133
€ 13.50
92001
920011215
ref: 92001
BOLT,NEUTRAL POINT
€ 6.00
92022
920221208
ref: 92022
WASHER,PLAIN
€ 2.50
92043
92042014
ref: 92043
PIN-GEAR CHANGE DRUM
€ 0.50
220
220B0614
ref: 220
SCREW-PAN HEAD,6X14
€ 2.00
