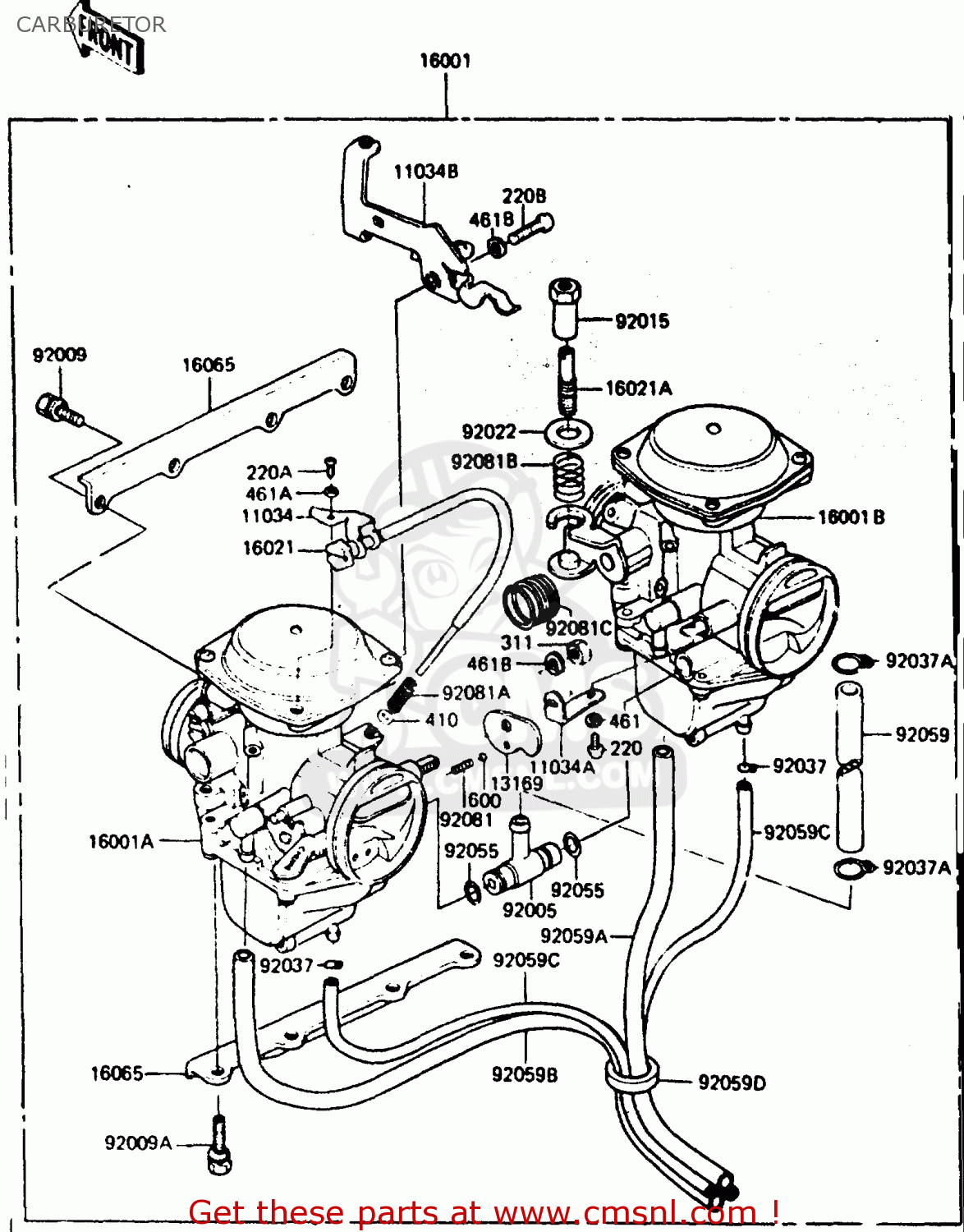

CARBURETOR

ref

part #

description

quantity

11034

110341202
ref: 11034

BRACKET,STOP SCREW

€ 17.50

11034A

110341203
ref: 11034A

BRACKET,CHOKE LEVER

€ 6.00

11034B

110341826
ref: 11034B

BRACKET,THROTTLE CABL

€ 36.50

13169

131691303
ref: 13169

PLATE,CHOKE LINK

€ 4.50

16001

160011798
ref: 16001

CARBURETOR

€ 1,032.00

16001A

160011880
ref: 16001A

CARBURETOR,LH

€ 459.00

16001B

160011881
ref: 16001B

CARBURETOR,RH

€ 459.00

16021

160211007
ref: 16021

SCREW-THROTTLE STOP

€ 18.50

16021A

160211027
ref: 16021A

SCREW,SLOTTED

€ 12.00

16065

160651012
ref: 16065

PLATE,STAY

€ 23.00

92005

920051032
ref: 92005

FITTING,FUEL HOSE

€ 29.00

92009

920091005
ref: 92009

BOLT, HEX HEAD, 6X16

€ 2.50

92009A

920091006
ref: 92009A

BOLT, HEX HEAD, 6X22

€ 3.00

92015

920151118
ref: 92015

NUT,5MM

€ 4.50

92022

920221204
ref: 92022

WASHER

€ 2.00

92037

920371142
ref: 92037

CLAMP,TUBE

€ 2.50

92037A

920371194
ref: 92037A

CLAMP,TUBE,TAP DIAPRM

€ 4.00

92055

920551004
ref: 92055

O RING

€ 2.50

92059

920591001
ref: 92059

HOSE, FUEL INLET

€ 13.50

92059A

92059110
ref: 92059A

HOSE

€ 11.50

92059B

920591106
ref: 92059B

HOSE,AIR,4.5X8X450

€ 11.50

92059C

92059111
ref: 92059C

HOSE,FUEL OVERFLOW

€ 17.50

92059D

920591114
ref: 92059D

TUBE,CLAMP

€ 7.50

92081

920811004
ref: 92081

SPRING

€ 3.00

92081A

920811062
ref: 92081A

SPRING,STOP SCREW

€ 4.50

92081B

920811252
ref: 92081B

SPRING

€ 2.50

92081C

920811453
ref: 92081C

SPRING,THROTTLE RETRN

€ 6.00

220

220B0306
ref: 220

SCREW-PAN-CROS

€ 0.50

220A

220B0410
ref: 220A

SCREW-PAN-CROS

€ 2.00

220B

220B0520
ref: 220B

SCREW-PAN-CROS

€ 0.50

311

311B0500
ref: 311

NUT-HEX

€ 0.50

410

410B0500
ref: 410

WASHER-PLAIN-SMALL,5M

€ 0.50

461

461F0300
ref: 461

WASHER-SPRING,3MM

€ 0.50

461A

461F0400
ref: 461A

WASHER-SPRING,4MM

€ 0.50

461B

461F0500
ref: 461B

WASHER-SPRING,5MM

€ 0.50

600

600A0400
ref: 600

BALL-STEEL,1/8

€ 2.00
