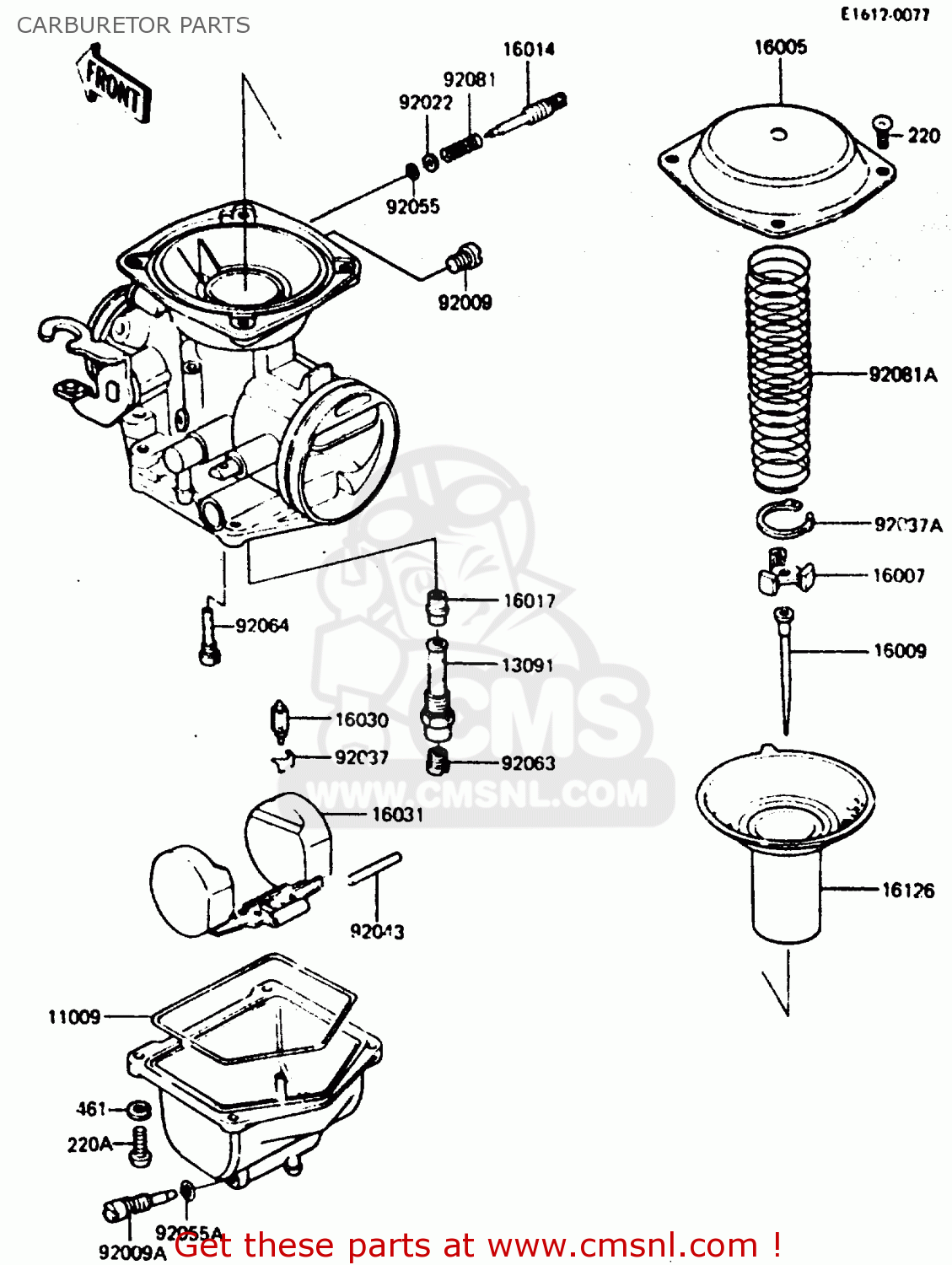

CARBURETOR PARTS

ref

part #

description

quantity

11009

16019024
ref: 11009

O RING,FLOAT CHAMBER

€ 15.00

13091

130911192
ref: 13091

HOLDER,NEEDLE JET

€ 15.50

16005

160051001
ref: 16005

TOP-CHAMBER,MIXING

€ 23.50

16007

160071001
ref: 16007

SEAT-SPRING,THROTTLE

€ 8.00

16009

160091201
ref: 16009

NEEDLE-JET,#N05H

€ 17.50

16014

160141029
ref: 16014

SCREW-PILOT AIR

€ 13.50

16017

160171139
ref: 16017

JET-NEEDLE,#6

€ 33.50

16030

160301007
ref: 16030

FLOAT VALVE ASSY

€ 37.00

16031

160311023
ref: 16031

FLOAT

€ 31.00

16126

161261101
ref: 16126

VALVE,VACUUM

€ 122.00

92009

920091004
ref: 92009

SCREW, PLUG

€ 5.50

92009A

920091095
ref: 92009A

SCREW,DRAIN

€ 10.00

92022

920221003
ref: 92022

WASHER,PLAIN

€ 2.50

92037

16044007
ref: 92037

CLIP, FLOAT VALVE

€ 4.00

92037A

920371005
ref: 92037A

CLAMP

€ 5.50

92043

920431002
ref: 92043

PIN,FLOAT

€ 3.50

92055

920551002
ref: 92055

O RING,PILOT ADJUST

€ 2.50

92055A

920551053
ref: 92055A

O RING,DRAIN SCREW

€ 3.00

92063

920631004
ref: 92063

JET-MAIN,#92

€ 10.00

92064

920641001
ref: 92064

JET-PILOT,#35

€ 14.00

92081

920811002
ref: 92081

SPRING,PIROT ADJ SCRW

€ 3.50

92081A

920811601
ref: 92081A

SPRING

€ 11.50

220

220B0408
ref: 220

SCREW-PAN-CROS

€ 0.50

220A

220B0412
ref: 220A

SCREW-PAN CROS 4X12

€ 0.50

461

461F0400
ref: 461

WASHER-SPRING,4MM

€ 0.50

all assemblies
