ELECTRICAL EQUIPMENT
ER250B2 SCORPION 1984 USA

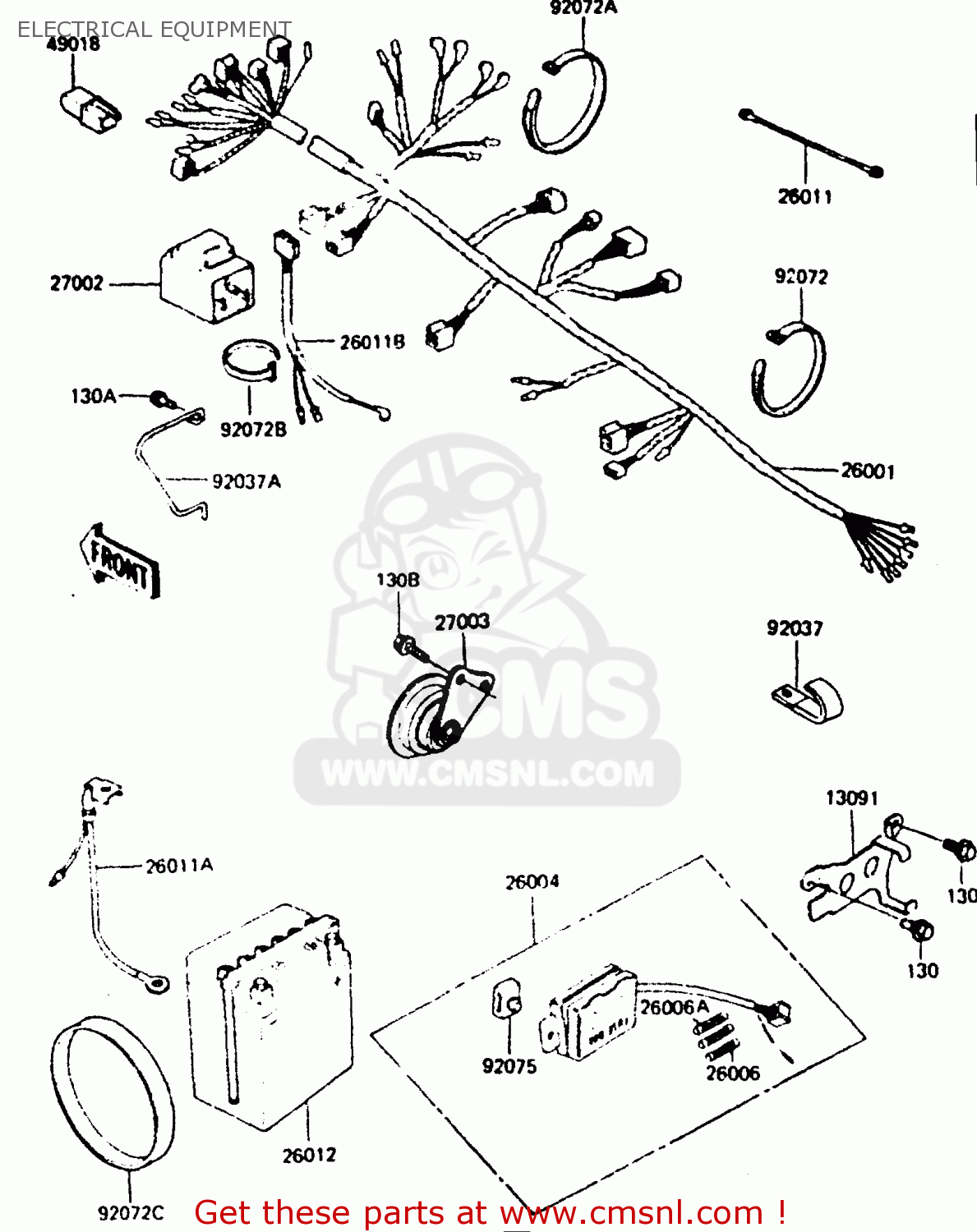

Electrical equipment diagram ER250B2 SCORPION 1984 USA
ELECTRICAL EQUIPMENT ER250B2 SCORPION 1984 USA
×
prices are in EUR
ref
part #
description
quantity
13091
130911252
ref: 13091
HOLDER,FUSE BOX
€ 10.50
26001
260011594
ref: 26001
HARNESS,MAIN
€ 176.50
26004
260041051
ref: 26004
FUSE-ASSY
€ 39.00
26006
26006003
ref: 26006
FUSE 10A
€ 3.00
26006A
26006005
ref: 26006A
FUSE 20A
€ 3.50
26011
260111034
ref: 26011
WIRE-LEAD,CRANKCASE G
€ 4.50
26011A
260111252
ref: 26011A
WIRE-LEAD,BATTERY GRO
€ 10.50
26011B
260111268
ref: 26011B
WIRE-LEAD,SIDE STAND
€ 12.50
26012
260121106
ref: 26012
BATTERY
€ 60.00
27002
270021053
ref: 27002
RELAY-ASSY,TURN SIGNA
€ 33.50
27003
270031060
ref: 27003
HORN
€ 46.50
49018
490181052
ref: 49018
DIODE
€ 35.50
92037
920371069
ref: 92037
CLAMP,L=60
€ 1.50
92037A
920371451
ref: 92037A
CLAMP,HARNESS&CLUTCH
€ 6.00
92072
92072031
ref: 92072
BAND,MIDDLE
€ 3.00
92072A
92072032
ref: 92072A
BAND,LONG
€ 3.00
92072B
92072067
ref: 92072B
BAND,L=95
€ 2.50
92072C
920721020
ref: 92072C
BAND,BATTERY
€ 7.00
92075
92075279
ref: 92075
DAMPER,FUSE
€ 3.50
130
130B0610
ref: 130
BOLT,FLANGED,6X10
€ 0.50
130A
130D0612
ref: 130A
BOLT,FLANGED
€ 0.50
130B
130D0614
ref: 130B
BOLT-FLANGED,6X14
€ 0.50
