BRAKE PEDAL
ER250B2 SCORPION 1984 USA

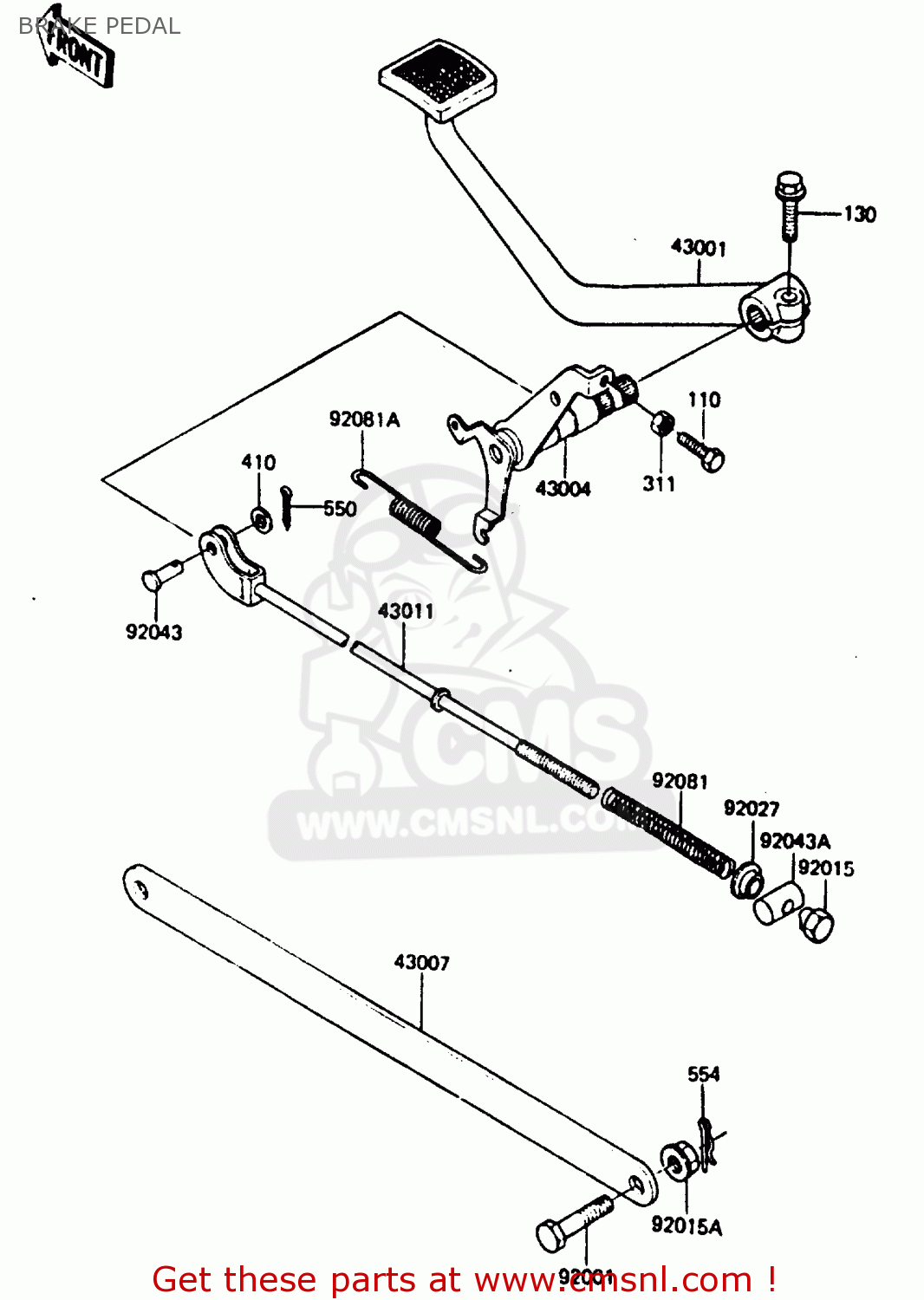

Brake pedal diagram ER250B2 SCORPION 1984 USA
BRAKE PEDAL ER250B2 SCORPION 1984 USA
×
prices are in EUR
ref
part #
description
quantity
43001
430011112
ref: 43001
LEVER-BRAKE,PEDAL
€ 34.50
43004
430041048
ref: 43004
SHAFT-BRAKE
€ 34.00
43007
430071042
ref: 43007
ROD-TORQUE,RR
€ 15.00
43011
430111062
ref: 43011
ROD-BRAKE,RR
€ 16.00
92001
92003034
ref: 92001
BOLT-HEX HEAD,10MM
€ 9.00
92015
92015042
ref: 92015
NUT-BRAKE ROD ADJUST
€ 4.00
92015A
920151428
ref: 92015A
NUT,FLANGED,10MM
€ 3.00
92027
92027122
ref: 92027
COLLAR,L=4.7
€ 5.50
92043
92043064
ref: 92043
PIN-BRAKE ROD FITTING
€ 4.50
92043A
92043065
ref: 92043A
PIN-BRAKE ROD
€ 3.50
92081
43012001
ref: 92081
SPRING,BRAKE ROD
€ 3.00
92081A
920811560
ref: 92081A
SPRING,BRAKE PEDAL
€ 5.00
110
110C0625
ref: 110
BOLT,6X25
€ 2.50
130
130J0825
ref: 130
BOLT-FLANGED,8X25,BLA
€ 2.00
311
311C0600
ref: 311
NUT-HEX,6MM,BLACK
€ 0.50
410
410B0600
ref: 410
WASHER-PLAIN-SMALL,6M
€ 0.50
550
550D2015
ref: 550
PIN-COTTER,2.0X15
€ 1.00
554
554A0800
ref: 554
PIN-SNAP,8MM
€ 1.00
