MUFFLER
ER250A1 Z250T 1983 CANADA

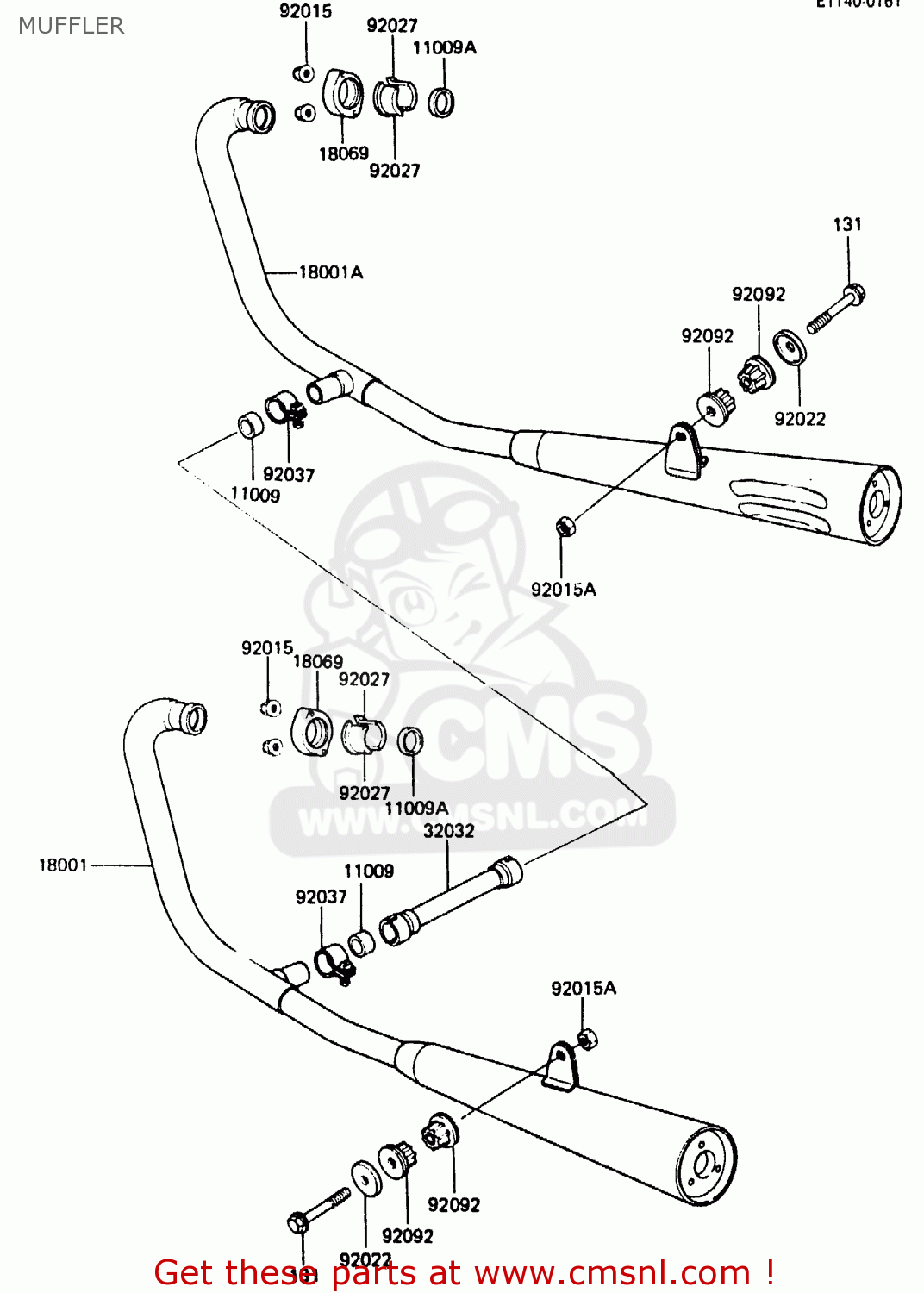

Muffler diagram ER250A1 Z250T 1983 CANADA
MUFFLER ER250A1 Z250T 1983 CANADA
×
prices are in EUR
ref
part #
description
quantity
11009
110091011
ref: 11009
GASKET, MUFLER CONECT (MCA)
€ 15.00
11009A
18067004
ref: 11009A
GASKET-EXHAUST PIPE (MCA)
€ 7.50
18001
180011400
ref: 18001
MUFFLER,LH
€ 312.00
18001A
180011401
ref: 18001A
MUFFLER,RH
€ 344.00
18069
180691030
ref: 18069
HOLDER-EXHAUST PIPE
€ 18.00
32032
320321671
ref: 32032
PIPE,MUFFLER CONNECTI
€ 17.50
92015
920151151
ref: 92015
NUT,CAP,8MM
€ 3.00
92015A
920151172
ref: 92015A
NUT,FLANGED,10MM
€ 3.00
92022
92022289
ref: 92022
WASHER,PLAIN
€ 11.50
92027
920271142
ref: 92027
COLLAR,L=14.5
€ 3.00
92037
920371227
ref: 92037
CLAMP,MUFFLER
€ 18.00
92092
920921013
ref: 92092
BUSHING-RUBBER,MUFFLE
€ 11.50
113
113N1055
ref: 113
BOLT-HEX HEAD,10X55
€ 7.00
