GEAR CHANGE MECHANISM
ER250A1 Z250T 1983 CANADA

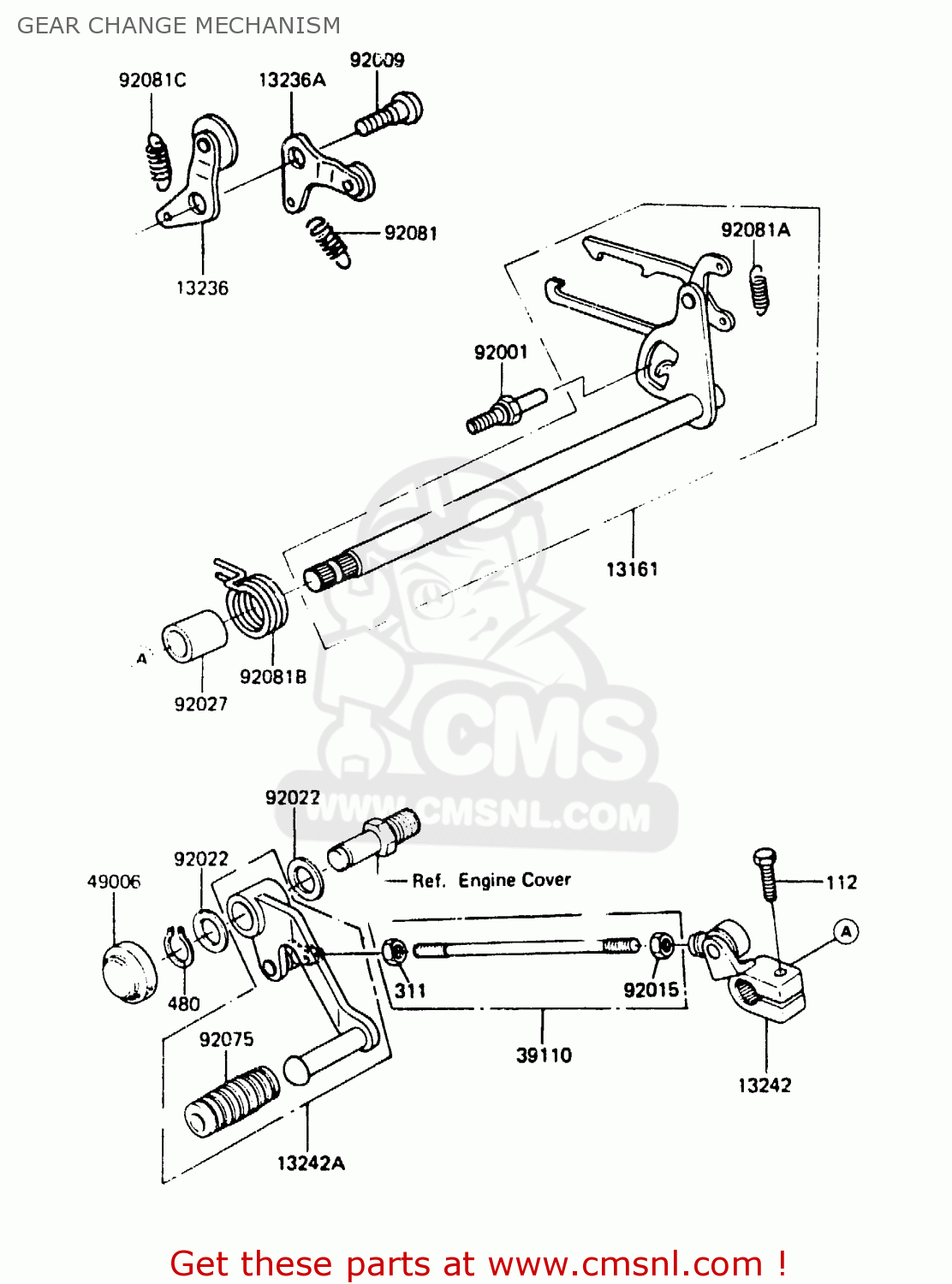

Gear change mechanism diagram ER250A1 Z250T 1983 CANADA
GEAR CHANGE MECHANISM ER250A1 Z250T 1983 CANADA
×
prices are in EUR
ref
part #
description
quantity
13161
131611007
ref: 13161
LEVER-COMP-CHANGE SHA
€ 66.00
13236
132361037
ref: 13236
LEVER-COMP,GEAR POSIT
€ 9.00
13236A
132361038
ref: 13236A
LEVER-COMP,NEUTRAL PO
€ 9.00
13242
132421057
ref: 13242
LEVER-ASSY-CHANGE,ROD
€ 20.50
13242A
132421096
ref: 13242A
LEVER-ASSY-CHANGE,PED
€ 51.00
39110
391101014
ref: 39110
ROD-ASSY-TIE,CHANGE P
€ 6.00
49006
490061061
ref: 49006
BOOT,CHANGE LEVER
€ 6.00
92001
920011401
ref: 92001
BOLT,RETURN SPRING
€ 3.00
92009
92011023
ref: 92009
SCREW-PAN HEAD
€ 2.50
92015
920151178
ref: 92015
NUT
€ 2.50
92022
92022072
ref: 92022
WASHER,12.5X22X1.2
€ 2.50
92027
920271440
ref: 92027
COLLAR,13X18.3X21.5
€ 3.50
92075
13157007
ref: 92075
RUBBER, SHIFT PEDAL
€ 3.50
92081
92081051
ref: 92081
SPRING-CHNG DRUM LEV
€ 2.50
92081A
92081076
ref: 92081A
SPRING-CHANG LEVER
€ 3.50
92081B
920811387
ref: 92081B
SPRING,RETURN
€ 6.50
92081C
92081156
ref: 92081C
SPRING,CHANGE LEVER
€ 4.00
112
112J0620
ref: 112
BOLT-UPSET 6X20
€ 2.50
311
311J0600
ref: 311
NUT-HEX
€ 1.00
480
480J1200
ref: 480
CIRCLIP-TYPE-C,12MM
€ 0.50
