BATTERY CASE
ER250A1 Z250T 1983 CANADA

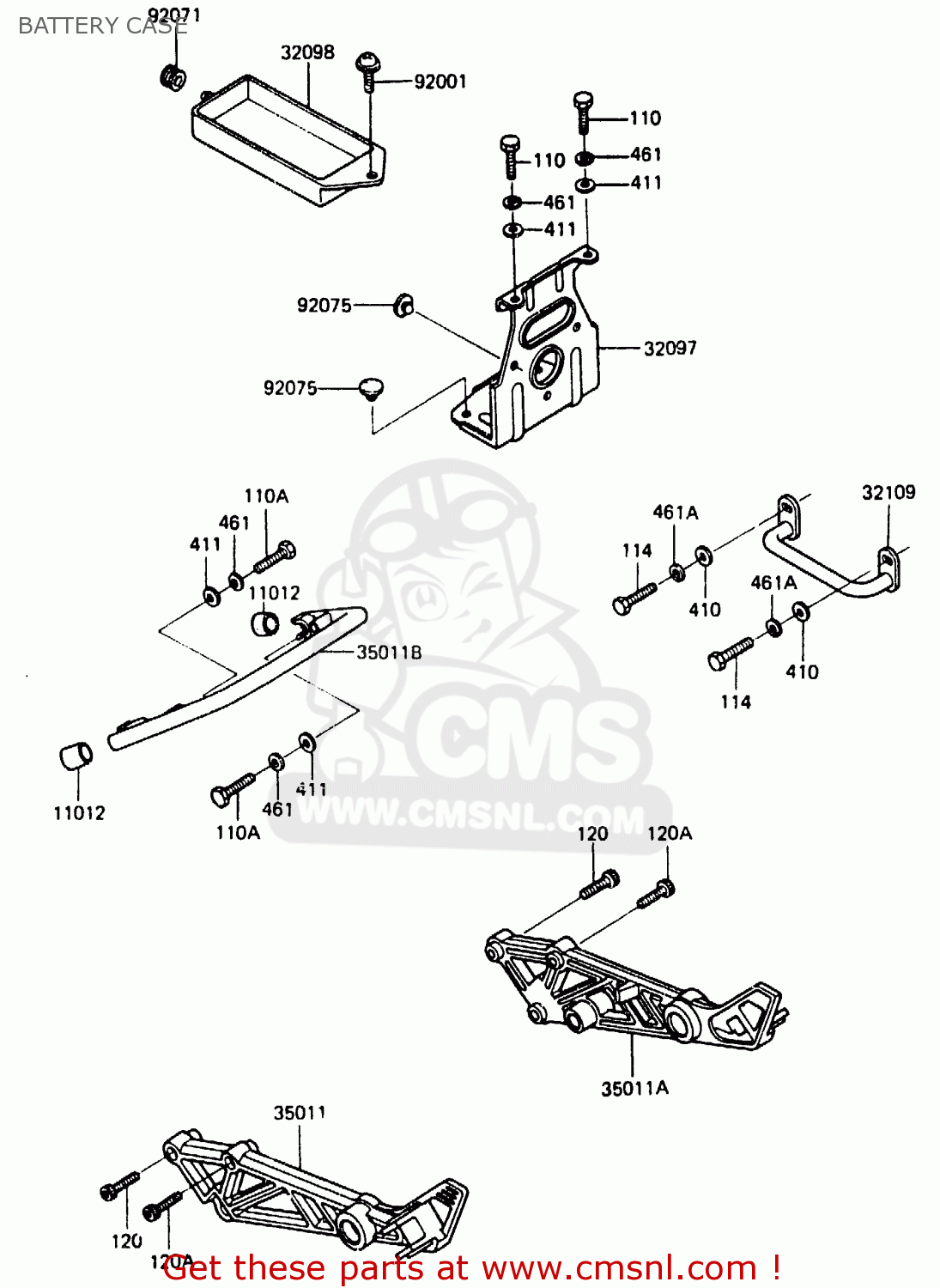

Battery case diagram ER250A1 Z250T 1983 CANADA
BATTERY CASE ER250A1 Z250T 1983 CANADA
×
prices are in EUR
ref
part #
description
quantity
11012
110121290
ref: 11012
CAP,RR STAY END
€ 3.00
32097
320971063
ref: 32097
CASE-BATTERY
€ 39.00
32098
320981023
ref: 32098
CASE-TOOL
€ 17.50
32109
321091041
ref: 32109
GRIP-FRAME
€ 22.00
35011
350111162
ref: 35011
STAY,MUFFLER,LH
€ 176.50
35011A
350111163
ref: 35011A
STAY,MUFFLER,RH
€ 176.50
35011B
350111164
ref: 35011B
STAY,RR
€ 81.00
92001
920011660
ref: 92001
BOLT,10MM
€ 2.00
92071
92071056
ref: 92071
GROMMET
€ 2.50
92075
92075261
ref: 92075
DAMPER,BATTERY CASE
€ 3.00
110
110B0614
ref: 110
BOLT-HEX HEAD,6X14
€ 2.50
110A
110B0622
ref: 110A
BOLT-HEX HEAD,6X22
€ 2.50
114
114C0814
ref: 114
BOLT-SMALL,8X14
€ 1.50
120
120S0830
ref: 120
BOLT-SOCKET,8X30,BLAC
€ 3.00
120A
120S0835
ref: 120A
BOLT-SOCKET,8X35,BLAC
€ 3.00
410
410F0800
ref: 410
WASHER-PLANE-SMALL,8M
€ 3.00
411
411B0600
ref: 411
WASHER-PLAIN,6MM
€ 0.50
461
461F0600
ref: 461
WASHER-SPRING,6MM
€ 0.50
461A
461K0800
ref: 461A
WASHER-SPRING,8MM,BLA
€ 1.50
