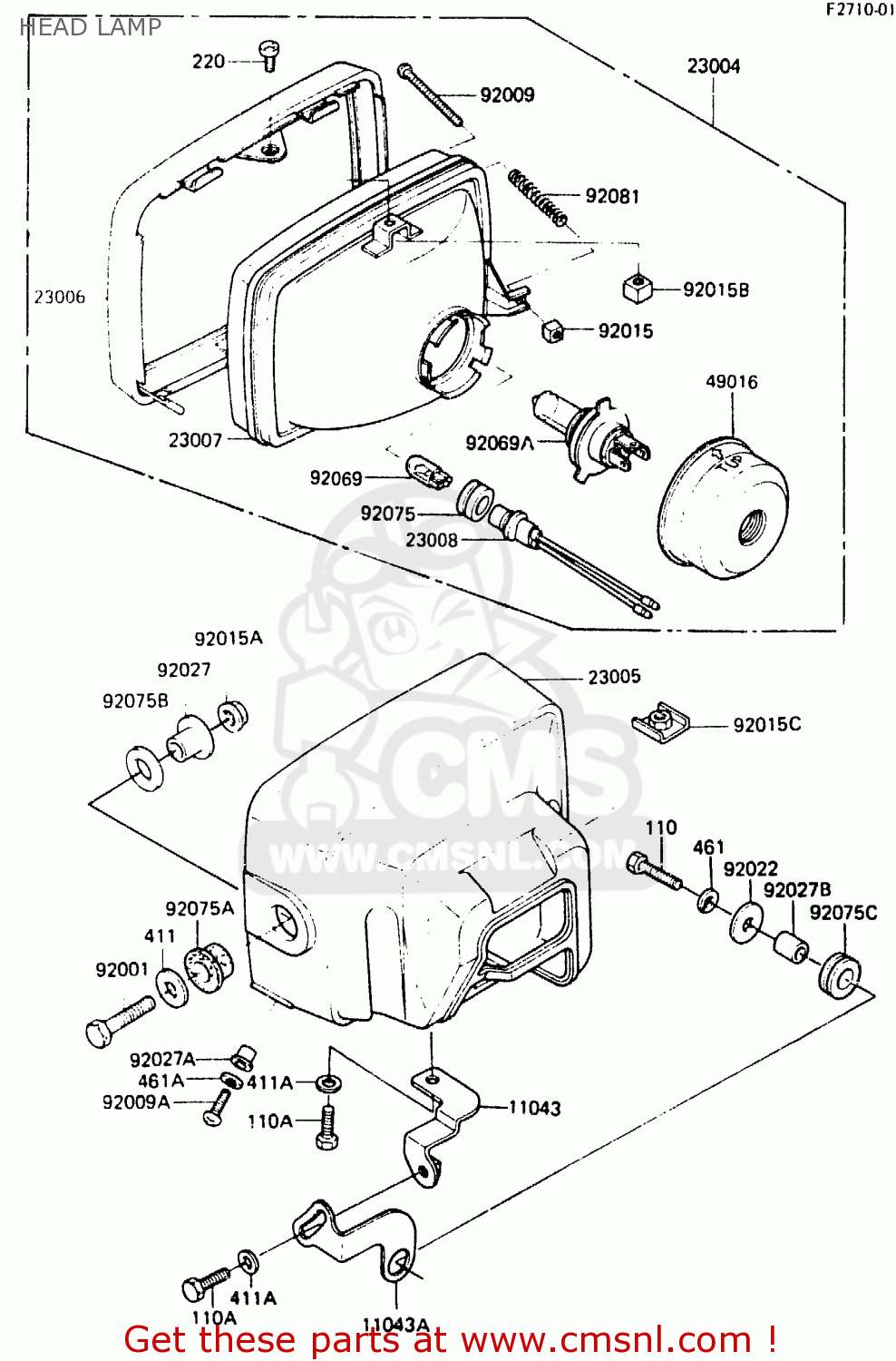

HEAD LAMP

ref

part #

description

quantity

11043

110431029
ref: 11043

BRACKET-B

€ 6.00

11043A

110431030
ref: 11043A

BRACKET-B

€ 7.00

23004

230041113
ref: 23004

LAMP-HEAD

€ 557.50

23005

23005102821
ref: 23005

BODY-COMP-HEAD LAMP

€ 92.50

23006

230061023
ref: 23006

RIM-LAMP,HEAD

€ 69.50

23007

230071051
ref: 23007

LENS-COMP,001-2722 MA

€ 153.00

23008

23008037
ref: 23008

SOCKET-ASSY,HEAD LAMP

€ 12.50

49016

490161046
ref: 49016

COVER-SEAL,HEAD LAMP

€ 7.50

92001

920011405
ref: 92001

BOLT,8X38

€ 10.00

92009

920091033
ref: 92009

SCREW,FOCUS ADJUSTING

€ 3.50

92009A

920091157
ref: 92009A

SCREW,5MM,BLACK

€ 2.50

92015

23020018
ref: 92015

NUT,4MM,FOCUS ADJUST

€ 3.00

92015A

920151014
ref: 92015A

NUT,8MM

€ 0.50

92015B

920151157
ref: 92015B

NUT,5MM

€ 3.50

92015C

920151231
ref: 92015C

NUT,6MM,HEAD LAMP

€ 6.50

92022

92022125
ref: 92022

WASHER,6.5X20X1.6

€ 1.00

92027

920271131
ref: 92027

COLLAR,HEAD LAMP FITT

€ 6.00

92027A

920271503
ref: 92027A

COLLAR,HEAD LAMP,BLAC

€ 2.50

92027B

92027162
ref: 92027B

COLLAR-REAR FENDER

€ 4.50

92069

ref: 92069
(LOCAL PROCUREMENT I

92069A

920691002
ref: 92069A

BULB,12V-60155W

€ 15.00

92075

23066008
ref: 92075

DAMPER,PARKING LAMP

€ 3.00

92075A

920751109
ref: 92075A

DAMPER,HEAD LAMP FITT

€ 4.00

92075B

920751110
ref: 92075B

DAMPER,HEAD LAMP FITT

€ 3.00

92075C

92075209
ref: 92075C

DAMPER RUBBER

€ 3.00

92081

920811103
ref: 92081

SPRING,HEAD LAMP LENS

€ 3.00

110

110B0625
ref: 110

BOLT-HEX HEAD,6X25

€ 4.00

110A

110C0614
ref: 110A

BOLT,6X14,BLACK

€ 3.00

220

220B0510A
ref: 220

SCREW-PAN HEAD,5X10

€ 0.50

411

411D0800
ref: 411

WASHER,PLAIN,8MM

€ 2.00

411A

411F0600
ref: 411A

WASHER-PLAIN,6MM,BLAC

€ 0.50

461

461F0600
ref: 461

WASHER-SPRING,6MM

€ 0.50

461A

461K0500
ref: 461A

WASHER-SPRING,5MM,BLA

€ 0.50

all assemblies
