FRAME FITTING

ER250A1 Z250T 1983 CANADA

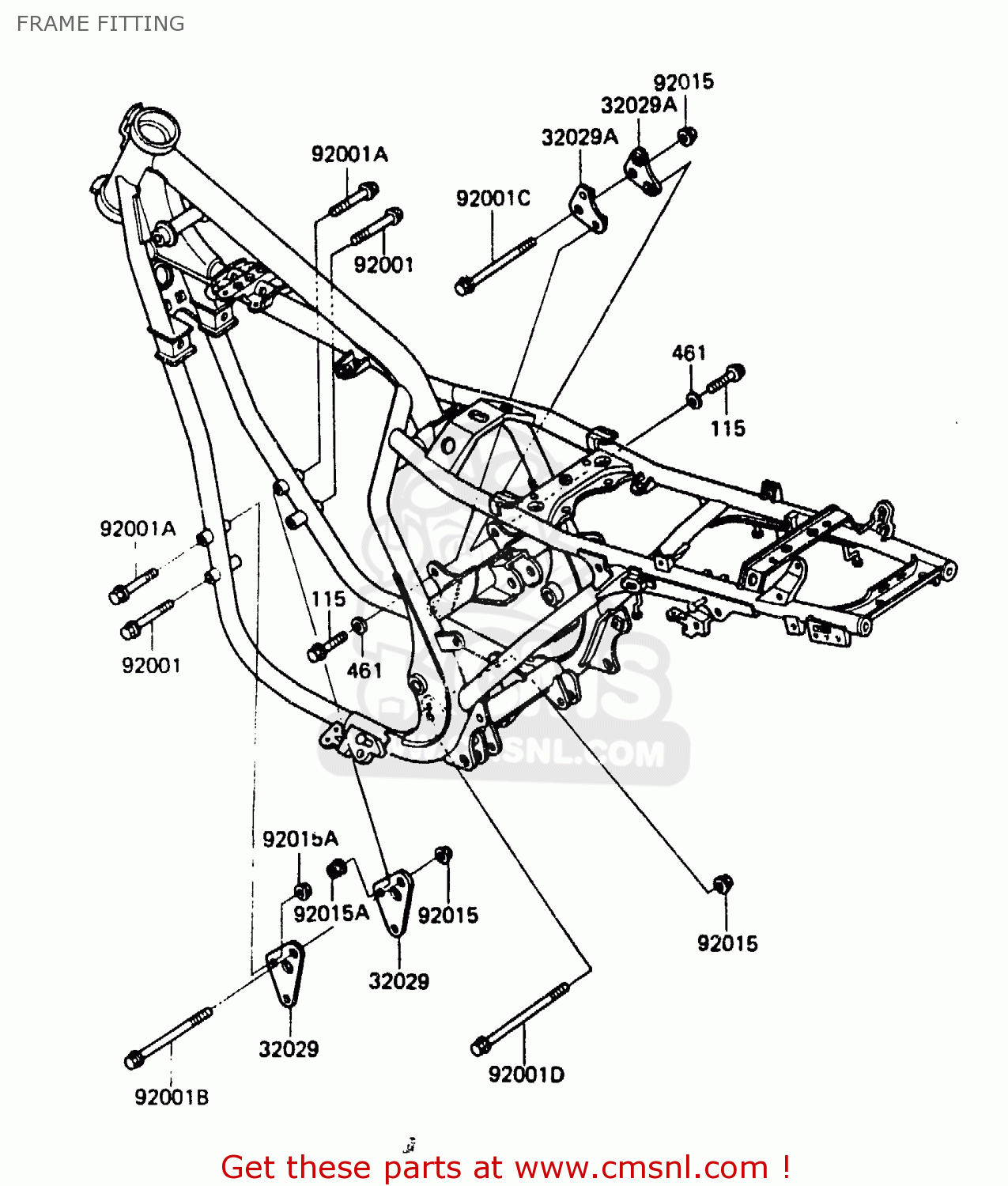

Frame fitting diagram ER250A1 Z250T 1983 CANADA

prices are in EUR

ref

part #

description

quantity

32029

320291252
ref: 32029

BRACKET-ENGINE,FR

€ 7.50

32029A

320291253
ref: 32029A

BRACKET-ENGINE,RR,UPP

€ 6.50

92001

920011616
ref: 92001

BOLT,FLANGED,8X65

€ 5.50

92001A

920011641
ref: 92001A

BOLT,FLANGED,8X55,BLA

€ 4.50

92001B

920011719
ref: 92001B

BOLT,FLANGED,10X110

€ 7.00

92001C

920011720
ref: 92001C

BOLT,FLANGED,10X125

€ 7.50

92001D

920011835
ref: 92001D

BOLT,FLANGED,10X145

€ 11.50

92015

920151180
ref: 92015

NUT,FLANGED,10MM,BLAC

€ 2.50

92015A

920151183
ref: 92015A

NUT,FLANGED,8MM,BLACK

€ 1.00

115

115J0820
ref: 115

BOLT-SMALL-UPSET,8X20

€ 3.00

461

461K0800
ref: 461

WASHER-SPRING,8MM,BLA

€ 1.50
