CAMSHAFT, TENSIONER
ER250A1 Z250T 1983 CANADA

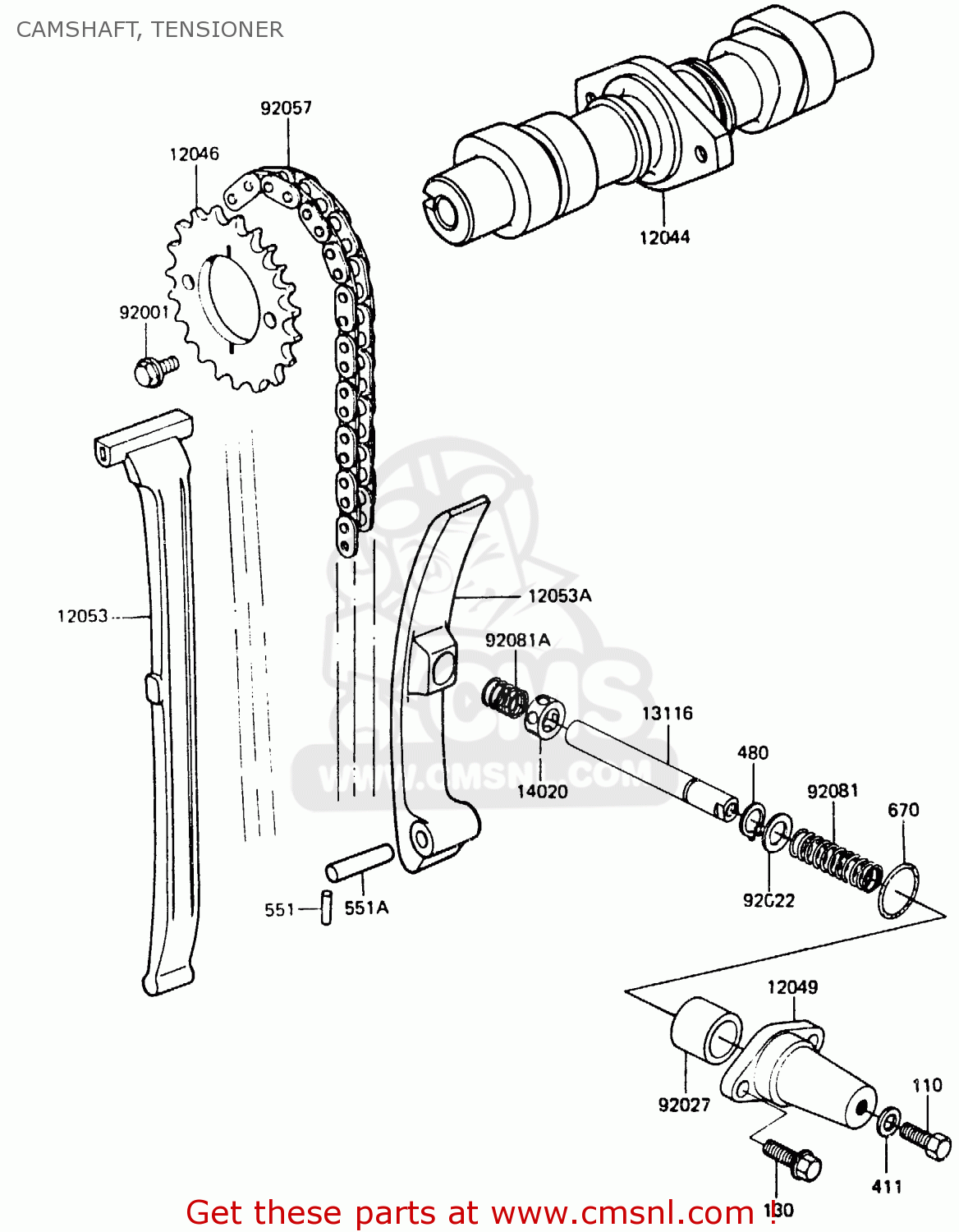

Camshaft, tensioner diagram ER250A1 Z250T 1983 CANADA
CAMSHAFT, TENSIONER ER250A1 Z250T 1983 CANADA
×
prices are in EUR
ref
part #
description
quantity
12044
120441056
ref: 12044
CAMSHAFT-VALVE
€ 228.50
12046
120461039
ref: 12046
SPROCKET,CAMSHAFT,38T
€ 34.50
12049
120491017
ref: 12049
TENSIONER,CAM CHAIN
€ 16.00
12053
120531078
ref: 12053
GUIDE-CHAIN,CAMSHAFT,
€ 23.50
12053A
120531079
ref: 12053A
GUIDE-CHAIN,CAMSHAFT,
€ 26.50
13116
131161022
ref: 13116
ROD-PUSH,TENSIONER
€ 11.50
14020
140201002
ref: 14020
RETAINER,TENSIONER
€ 10.50
92001
92003208
ref: 92001
BOLT,SPROCKET FITTING
€ 2.50
92022
920221181
ref: 92022
WASHER,10.2X14.5X1.0
€ 2.50
92027
920271240
ref: 92027
COLLAR,TENSIONER
€ 10.00
92057
920571119
ref: 92057
CHAIN,CAMSHAFT,75RH20
€ 25.50
92081
920811206
ref: 92081
SPRING,TENSIONER
€ 3.00
92081A
920811207
ref: 92081A
SPRING,TENSIONER
€ 2.50
110
110C0614
ref: 110
BOLT,6X14,BLACK
€ 3.00
130
130J0620
ref: 130
BOLT-FLANGED,6X20
€ 2.50
411
411F0600
ref: 411
WASHER-PLAIN,6MM,BLAC
€ 0.50
480
480J1000
ref: 480
CIRCLIP-TYPE-C,10MM
€ 0.50
551
551A0316
ref: 551
PIN-DOWEL,3X16
€ 2.00
551A
551A0840
ref: 551A
PIN-DOWEL,8X40
€ 3.00
670
670B2021
ref: 670
O RING,21MM
€ 3.00
