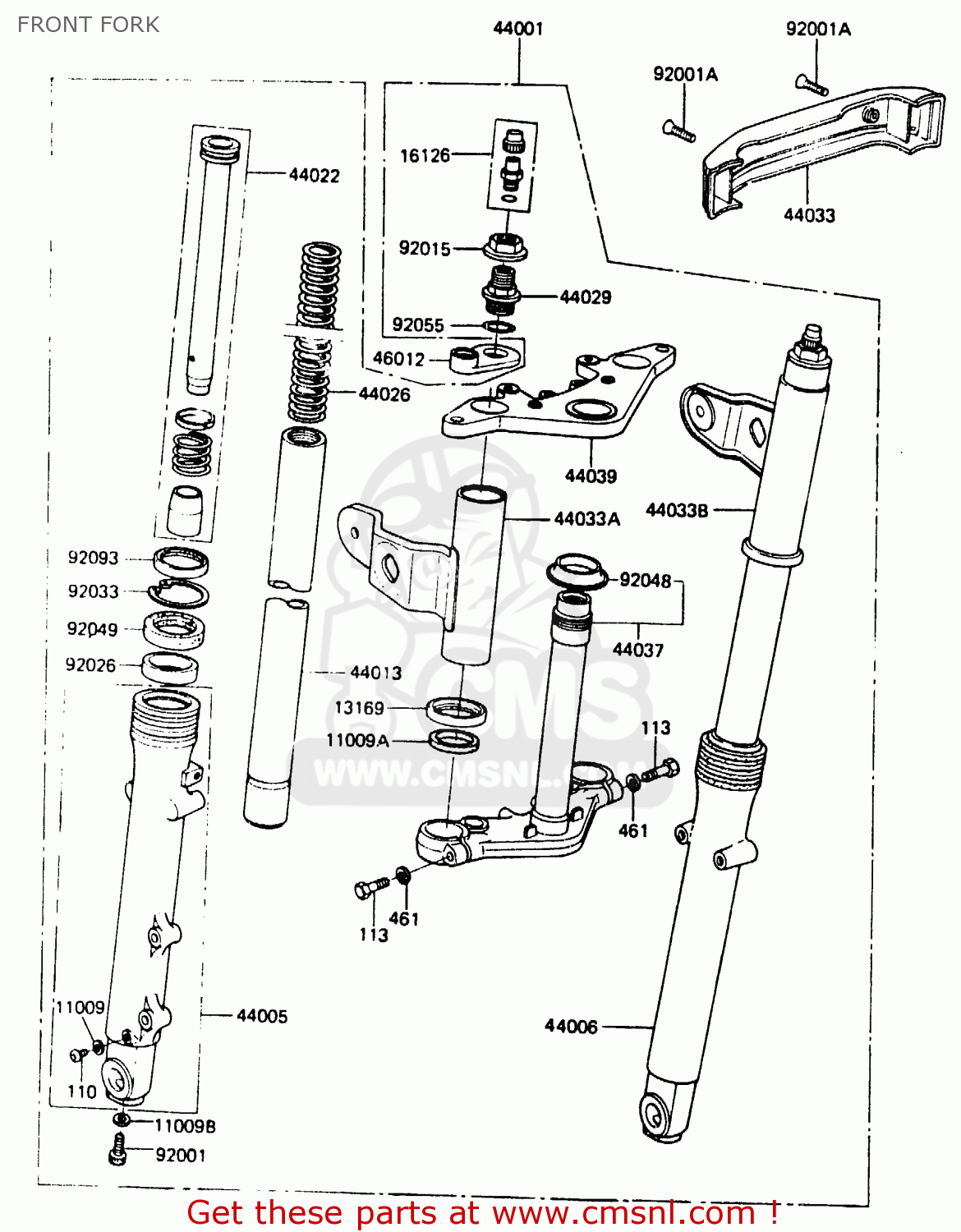

FRONT FORK

ref

part #

description

quantity

11009

44045047
ref: 11009

GASKET,DRAIN PLUG (NAS)

€ 6.00

11009A

44045049
ref: 11009A

GASKET,FORK COVER (NAS)

€ 3.50

11009B

44045051
ref: 11009B

GASKET,FORK CYLINDER (NAS)

€ 4.00

13169

131691619
ref: 13169

PLATE,FORK COVER,LOWE

€ 9.00

16126

161261043
ref: 16126

VALVE,AIR

€ 24.50

44001

440011376
ref: 44001

FORK-FRONT

€ 1,526.50

44005

440051145
ref: 44005

PIPE-LEFT FORK OUTER

€ 277.00

44006

440061145
ref: 44006

PIPE-RIGHT FORK OUTER

€ 251.50

44013

440131119
ref: 44013

PIPE-FORK INNER

€ 117.50

44022

440221096
ref: 44022

CYLINDER-FORK

€ 69.00

44026

440261200
ref: 44026

SPRING-FRONT FORK

€ 36.00

44029

440291050
ref: 44029

SEAT-FORK SPRING

€ 37.50

44033

440331084
ref: 44033

COVER-FORK

€ 28.00

44033A

440331133
ref: 44033A

COVER-FORK,LH

€ 66.00

44033B

440331134
ref: 44033B

COVER-FORK,RH

€ 62.50

44037

440371096
ref: 44037

HOLDER-FORK UNDER

€ 209.00

44039

440391066
ref: 44039

HOLDER-FORK UPPER

€ 182.50

46012

460121040
ref: 46012

HOLDER-HANDLE

€ 20.50

92001

44041078
ref: 92001

BOLT, FORK CYLINDER

€ 6.50

92001A

920011323
ref: 92001A

SCREW,OVAL CNTSK,5X18

€ 2.50

92015

920151256
ref: 92015

NUT,FLANGED,18MM

€ 11.50

92026

920261099
ref: 92026

SPACER,FORK OUTER

€ 7.00

92033

920331078
ref: 92033

RING-SNAP,FORK OUTER

€ 3.50

92048

92047006
ref: 92048

CONE-STRNG STEM

€ 11.00

92049

920491080
ref: 92049

SEAL-OIL FORK OUTER

€ 14.00

92055

920551101
ref: 92055

0 RING FORK TOP BOLT

€ 3.50

92093

920931083
ref: 92093

SEAL,FORK OUTER TUBE

€ 16.00

110

110B0608
ref: 110

BOLT-HEX HEAD,6X8

€ 0.50

113

113C1035
ref: 113

113C1035

461

461K1000
ref: 461

461K1000

all assemblies
