SWING ARM/SHOCK ABSORBERS
S2 MACH II 1972 USA

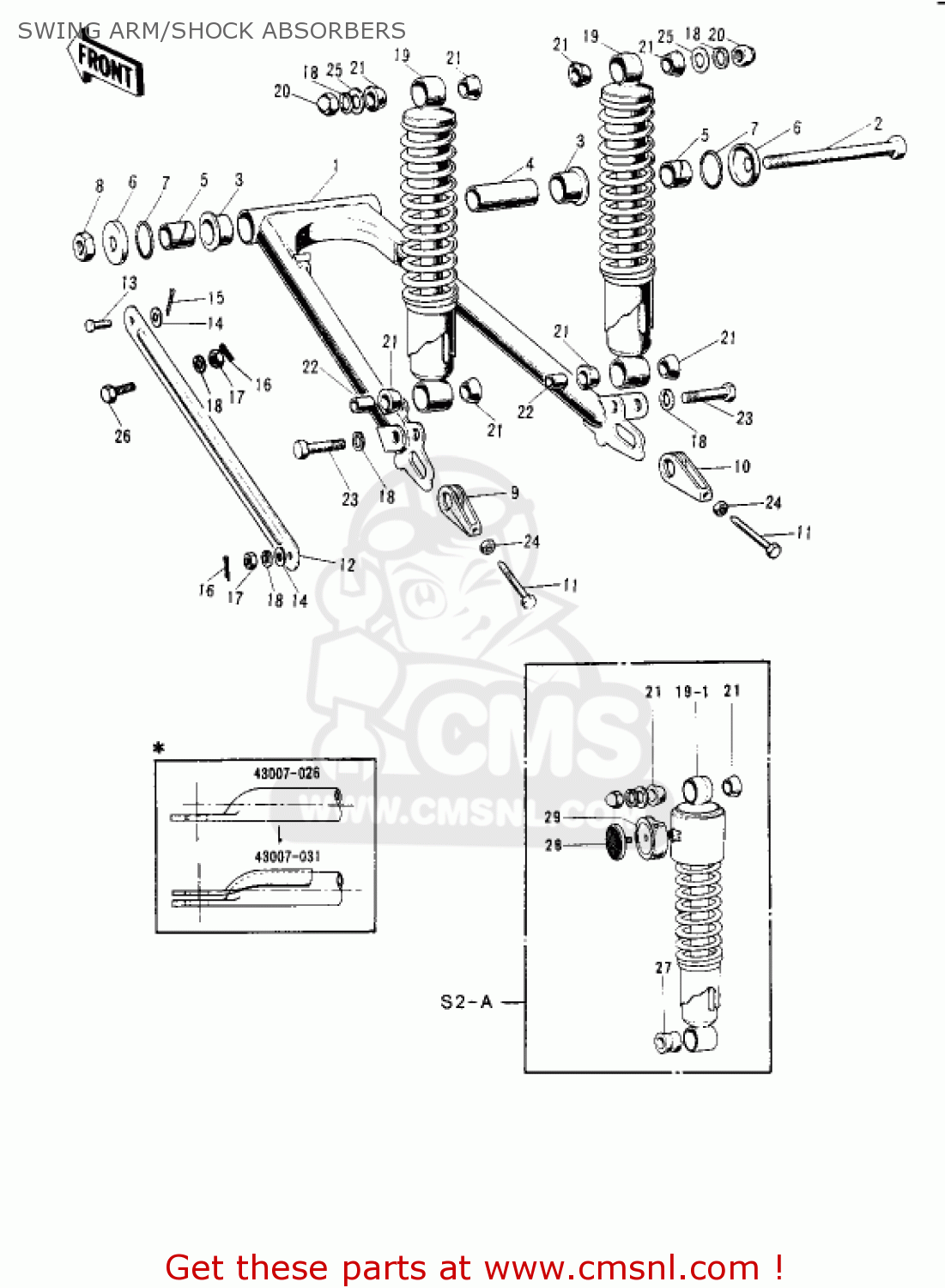

Swing arm/shock absorbers diagram S2 MACH II 1972 USA
SWING ARM/SHOCK ABSORBERS S2 MACH II 1972 USA
×
prices are in EUR
ref
part #
description
quantity
1
33001039
ref: 1
ARM-SWING
€ 166.50
2
33032037
ref: 2
SHAFT-SWING ARM,L=237
€ 33.50
3
33033009
ref: 3
BUSHING,SWING ARM
€ 57.00
4
33034012
ref: 4
SLEEVE-SWING ARM,LONG
€ 7.50
5
33034013
ref: 5
SLEEVE-SWING ARM,SHRT
€ 20.50
6
33035004
ref: 6
CAP-SWING ARM
€ 2.00
7
671B2530
ref: 7
O RING,30MM
€ 3.00
8
92019011
ref: 8
NUT,LOCK,14MM
€ 6.00
9
33040032
ref: 9
ADJUSTER-CHAIN L.H
€ 16.00
10
33040033
ref: 10
ADJUSTER-CHAIN R.H
€ 16.00
11
920011399
ref: 11
BOLT,8X50
€ 6.00
12
43007031
ref: 12
*
TORQUE LINK-REAR BRK
€ 20.00
?
43007031
ref: ?
TORQUE LINK-REAR BRK
€ 20.00
13
43009001
ref: 13
USE FOR 43007-026
PIN-REAR TORQUE LINK
€ 4.50
14
410B1000
ref: 14
WASHER-PLAIN-SMALL,10
€ 0.50
15
550D2520
ref: 15
USE FOR 43007-026
PIN-COTTER,2.5X20
€ 1.00
16
554A0800
ref: 16
PIN-SNAP,8MM
€ 1.00
17
314B1000
ref: 17
NUT,10MM
€ 0.50
18
461F1000
ref: 18
WASHER-SPRING,10MM
€ 0.50
19
45014062
ref: 19
S2
SHOCK ABSORBER-REAR
€ 123.50
19-1
45014078
ref: 19-1
S2-A
SHOCK ABSORBER-REAR
€ 119.50
20
92020003
ref: 20
NUT-SHOCK ABSORBER
€ 4.00
21
45017001
ref: 21
S2
DAMPER,SHOCKABSORBER
€ 4.00
21
45017001
ref: 21
S2-A
DAMPER,SHOCKABSORBER
€ 4.00
22
45016003
ref: 22
COLLAR,SHOCKABSORBER
€ 12.50
23
113N1035
ref: 23
BOLT-HEX HEAD,10X35
€ 6.00
24
312B0800
ref: 24
NUT,8MM
€ 0.50
25
92022044
ref: 25
WASHER,10.5X26X2.3
€ 2.50
26
92003096
ref: 26
USE FOR 43007-031
BOLT-TRQ LINK 10X29
€ 7.00
27
45017018
ref: 27
S2-A
DAMPER,SHOCKABSORBER
€ 4.00
28
28001030
ref: 28
S2-A
REFLECTOR,REAR,REFLEX
€ 56.50
29
28016002
ref: 29
S2-A
DAMPER RUBBER-REFLEX
€ 5.50
