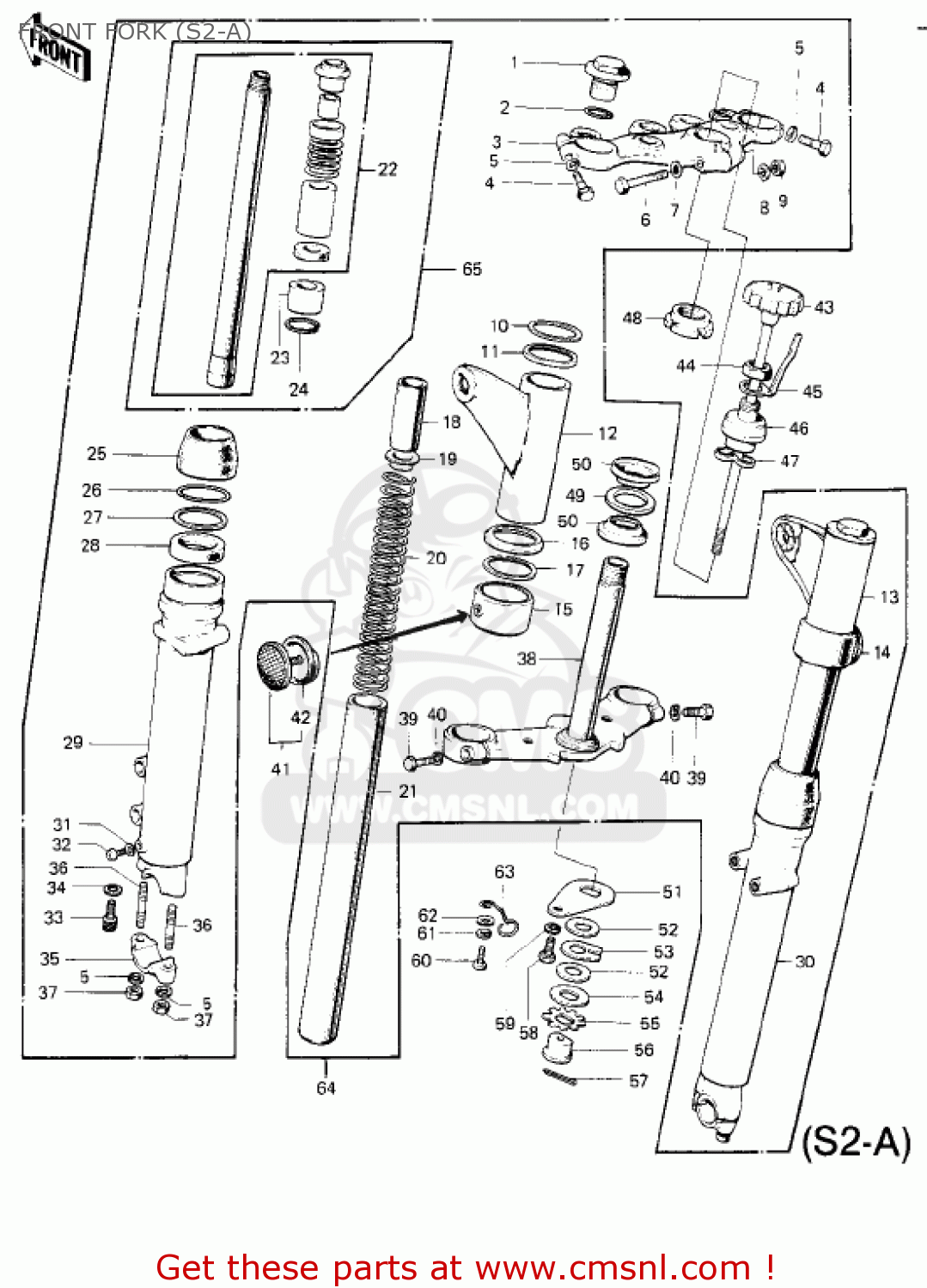

FRONT FORK (S2-A)

ref

part #

description

quantity

1

44041037
ref: 1

BOLT-FORK FITTING

€ 30.50

2

920551012
ref: 2

RING-O,FORK TOP

€ 5.00

2

920551012
ref: 2

RING-O,FORK TOP

€ 5.00

3

44039051
ref: 3

HEAD-STEERING STEM

€ 90.00

4

44041044
ref: 4

BOLT-STEERING STEM HD

€ 6.50

5

461F0800
ref: 5

WASHER-SPRING,8MM

€ 0.50

6

44041042
ref: 6

BOLT-STEERING STEM HD

€ 3.00

7

463H0800
ref: 7

WASHER-TOOTHED,8MM

€ 2.00

8

410B0800
ref: 8

WASHER-PLAIN-SMALL,8M

€ 0.50

9

920151124
ref: 9

NUT,LOCK,8MM

€ 3.50

10

44045039
ref: 10

GASKET,FORK COVER (NAS)

€ 3.50

11

44043047
ref: 11

WASHER,FORK COVER

€ 8.00

12

4403305321
ref: 12

COVER-L.H FORK,BLACK

€ 47.50

12

44033067
ref: 12

COVER,L.H FORK

€ 50.00

13

4403405321
ref: 13

COVER-R.H FORK,BLACK

€ 55.00

13

44034067
ref: 13

COVER,R.H FORK

€ 61.00

14

44064009
ref: 14

GUIDE-FORK COVER,R.H

€ 14.50

15

44064010
ref: 15

GUIDE-FORK COVER,L.H

€ 30.00

16

44032005
ref: 16

CAP-FORK COVER

€ 7.00

17

44045029
ref: 17

GASKET-FORK COVER (NAS)

€ 3.50

18

44028026
ref: 18

SPACER-FORK SPR GUIDE

€ 9.00

19

44029019
ref: 19

GUIDE-FORK SPRING

€ 6.00

20

44026043
ref: 20

SPRING-FORK

€ 47.50

21

44013038
ref: 21

PIPE-FORK INNER

€ 216.50

22

44023005
ref: 22

CYLINDER SET,FORK

€ 48.50

22

44022026
ref: 22
USE FOR 44023-005

CYLINDER,FORK

€ 48.50

23

44018001
ref: 23

PISTON-FORK

€ 7.00

23

44018009
ref: 23
USE WITH 44022-026

PISTON,FORK

€ 17.00

24

44044008
ref: 24

CIRCLIP-FORK PISTON

€ 7.00

24

44044008
ref: 24
USE WITH 44022-026

CIRCLIP-FORK PISTON

€ 7.00

25

44010019
ref: 25

DUST SHIELD-FORK

€ 8.50

26

44044005
ref: 26

CIRCLIP-OIL SEAL FIT

€ 6.50

27

44043023
ref: 27

WASHER-OIL SEAL FIT

€ 2.00

28

44009020
ref: 28

OIL SEAL,FORK

€ 38.00

39

44005046
ref: 39

TUBE-L.H OUTER

€ 214.00

30

44006044
ref: 30

TUBE-R.H OUTER

€ 110.00

31

44045002
ref: 31

GASKET,FORK DRAIN PLU (NAS)

€ 3.00

32

220B0408
ref: 32

SCREW-PAN-CROS

€ 0.50

33

44041040
ref: 33

BOLT-FORK CYLINDER

€ 4.50

34

44045057
ref: 34

GASKET (NAS)

€ 3.00

35

44063006
ref: 35

HOLDER-FRONT AXLE

€ 18.00

36

172G0830
ref: 36

STUD,8X30

€ 1.50

37

311B0800
ref: 37

NUT,8MM

€ 0.50

38

44037058
ref: 38

STEM-STEERING

€ 149.00

39

113B1032
ref: 39

BOLT-HEX HEAD,10X32

€ 3.50

40

461F1000
ref: 40

WASHER-SPRING,10MM

€ 0.50

41

28001029
ref: 41

REFLECTOR,REFLEX,FRNT

€ 20.00

42

28016002
ref: 42

DAMPER RUBBER-REFLEX

€ 5.50

43

46101007
ref: 43

KNOB-STEERING DAMPER

€ 10.50

44

315N1200A
ref: 44

NUT,12MM

€ 3.50

45

46126001
ref: 45

SPRING-STRG DAMP KNOB

€ 3.50

46

92090020
ref: 46

BOLT-STEERING STEM

€ 27.00

47

46100002
ref: 47

WASHER-WAVE

€ 7.00

48

92090007
ref: 48

NUT-STEERING STEM LCK

€ 8.00

49

46098016
ref: 49

CAP,STEERING STEM

€ 4.00

50

92047006
ref: 50

CONE-STRNG STEM

€ 11.00

51

46106007
ref: 51

PLATE-STRG DAMP STEEL

€ 1.50

52

46104005
ref: 52

PLATE-STRG DAMP FRCTN

€ 2.50

53

46105005
ref: 53

PLATE,STRG DAMP ANCH

€ 8.50

54

46106008
ref: 54

PLATE-STRG DAMP STEEL

€ 1.50

55

46124006
ref: 55

SPRING-STEERING DAMP

€ 9.00

56

46125005
ref: 56

NUT-STRG DAMPER GUIDE

€ 23.00

57

550D1615
ref: 57

PIN-COTTER,1.6X15

€ 1.50

58

114G0812
ref: 58

BOLT-SMALL,8X12

€ 2.00

59

461F0800
ref: 59

WASHER-SPRING,8MM

€ 0.50

60

112G0610
ref: 60

BOLT,6X10

€ 0.50

61

461F0600
ref: 61

WASHER-SPRING,6MM

€ 0.50

62

410B0600
ref: 62

WASHER-PLAIN-SMALL,6M

€ 0.50

63

92037099
ref: 63

CLAMP-CABLE

€ 3.50

64

44001144
ref: 64

FRONT FORK

€ 2,100.00

64

44001144
ref: 64

FRONT FORK

€ 2,100.00

65

44023005
ref: 65

CYLINDER SET,FORK

€ 48.50

all assemblies
