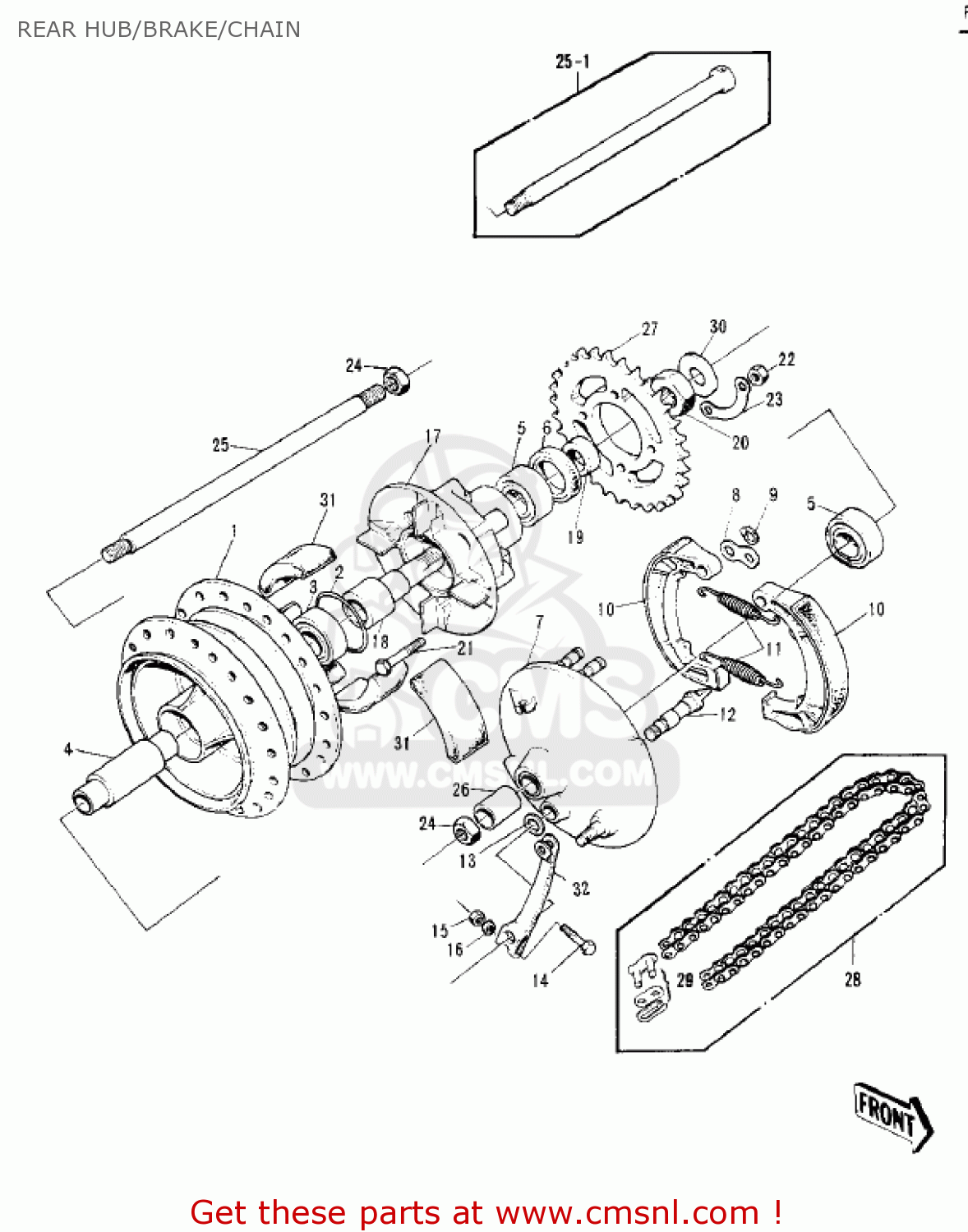

REAR HUB/BRAKE/CHAIN

ref

part #

description

quantity

1

42005009
ref: 1
INCLUDES REF. #'S 1-

DRUM ASSY-REAR BRAKE

€ 331.00

1

410345001
ref: 1

DRUM ASSY,RR W/PANEL

€ 331.00

2

671B2560
ref: 2

O RING,60MM

€ 1.50

3

601B6205
ref: 3

BEARING-BALL,#6205C3

€ 14.00

4

42010008
ref: 4

SPACER-RR HUB BEARING

€ 4.50

5

601B6205Z
ref: 5

BALL BEARING,#6205ZC3

€ 24.00

6

92052006
ref: 6

OIL SEAL WTC35527

€ 6.50

7

4200600780
ref: 7
INCLUDES REF. #'S 7-

PANEL ASY-RR BK,BUFF

€ 190.50

8

41045007
ref: 8

WASHER,BRAKE SHOE

€ 4.00

9

480J1400
ref: 9

CIRCLIP-TYPE-C,14MM

€ 3.00

10

42019003
ref: 10

SHOE-REAR BRAKE (MCA)

€ 24.50

11

41049003
ref: 11

SPRING-BRAKE SHOE

€ 2.50

12

42026015
ref: 12

CAM SHAFT,REAR BRAKE

€ 30.00

13

41051001
ref: 13

DUST SHIELD-BRAKE CAM

€ 2.50

14

112G0640
ref: 14

BOLT-UPSET,6X40

€ 2.50

15

311B0600
ref: 15

NUT,6MM

€ 0.50

16

410B0600
ref: 16

WASHER-PLAIN-SMALL,6M

€ 0.50

17

42008012
ref: 17
INCLUDES REF. #'S 17

COUPLING ASSY-RR HUB

€ 143.00

18

42036006
ref: 18

SLEEVE-REAR AXLE

€ 18.00

19

42037006
ref: 19

COLLER-RR AXLE SLEEVE

€ 17.00

20

42045006
ref: 20

NUT-SLEEVE

€ 7.50

21

92003087
ref: 21

BOLT-RR SPRCKT 10X49

€ 4.00

22

314B1000
ref: 22

NUT,10MM

€ 0.50

23

92088005
ref: 23

WASHER,SPROCKET LOCK

€ 4.00

24

314B1600
ref: 24
1 REQ'D FOR 42031-03

NUT,16MM

€ 1.50

25

42031033
ref: 25
S2

AXLE-REAR

€ 50.00

25-1

42031033
ref: 25-1
S2-A

AXLE-REAR

€ 50.00

26

42032008
ref: 26

COLLAR-REAR HUB R.H

€ 13.50

27

42041102
ref: 27

REAR SPROCKET 43T

€ 44.50

28

92057014
ref: 28
INCLUDES REF. # 29

CHAIN ASSY,DRIVE,98L

€ 62.00

29

92058008
ref: 29

JOINT-CHAIN

€ 4.00

30

42046009
ref: 30

WASHER-SLEEVE

€ 5.00

31

42014008
ref: 31

DAMPER,RR HUB SHOCK

€ 24.50

32

42029037
ref: 32

LEVER,REAR BRAKE CAM

€ 27.50

all assemblies
