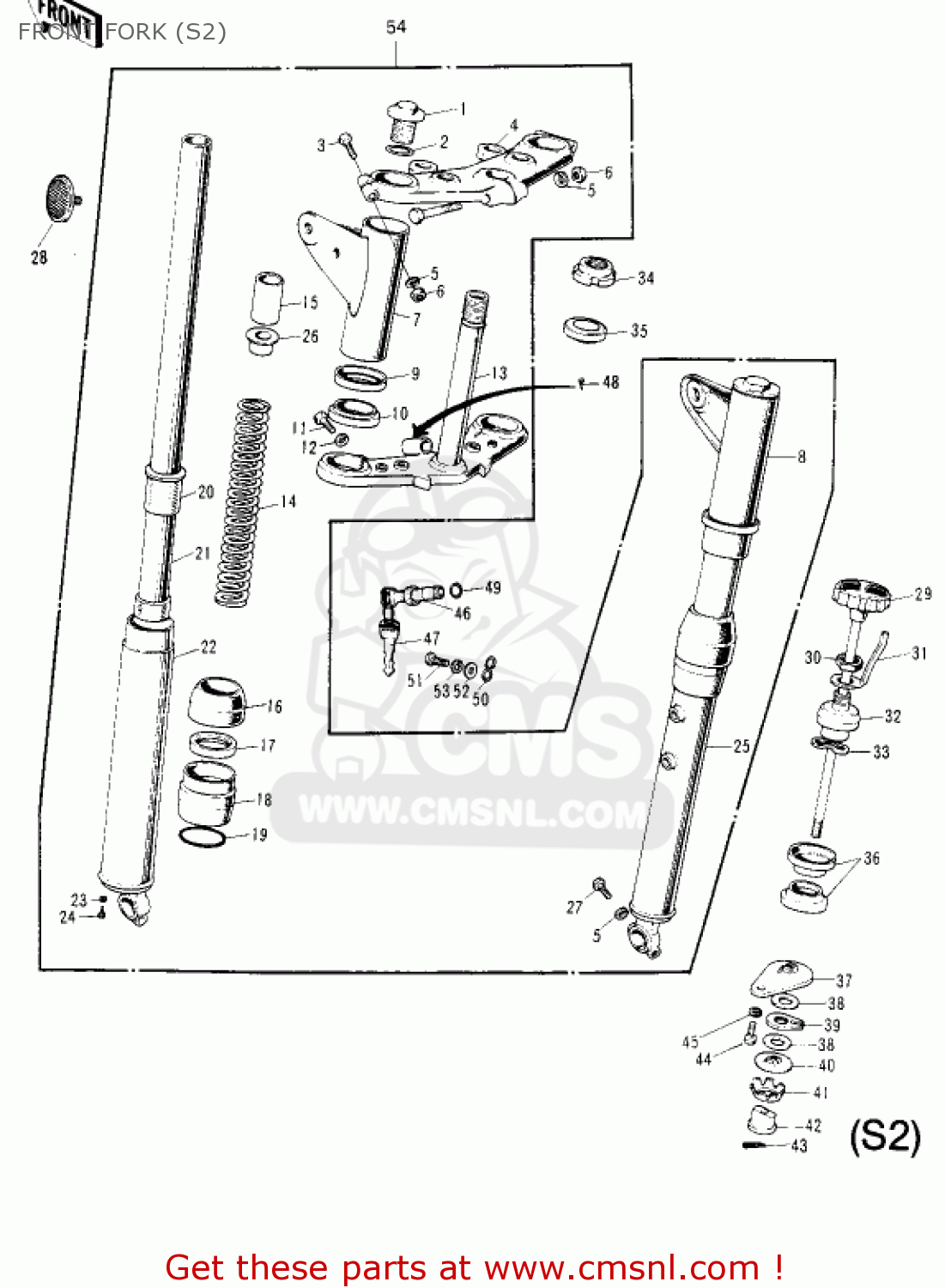

FRONT FORK (S2)

ref

part #

description

quantity

1

44041037
ref: 1

BOLT-FORK FITTING

€ 30.50

2

44046015
ref: 2

RING-O,FORK TOP

€ 4.50

3

920011398
ref: 3

BOLT,FLANGED 8X55

€ 2.50

4

44039037
ref: 4

HEAD-STEERING STEM

€ 87.00

5

461F0800
ref: 5

WASHER-SPRING,8MM

€ 0.50

6

311B0800
ref: 6

NUT,8MM

€ 0.50

7

4403303821
ref: 7

COVER-L.H FORK

€ 33.50

8

4403403721
ref: 8

COVER-R.H FORK

€ 60.50

9

44043034
ref: 9

WASHER-FORK COVER

€ 6.00

10

44045029
ref: 10

GASKET-FORK COVER (NAS)

€ 3.50

11

920011252
ref: 11

BOLT,HEX HEAD,10X35

€ 3.50

12

461F1000
ref: 12

WASHER-SPRING,10MM

€ 0.50

13

44037037
ref: 13

STEM-STEERING

€ 82.50

14

44026038
ref: 14

SPRING-FORK

€ 24.00

15

44028022
ref: 15

SPACER-FORK SPRG GIDE

€ 3.00

16

44010017
ref: 16

DUST SHIELD-FORK

€ 14.00

17

44009020
ref: 17

OIL SEAL,FORK

€ 38.00

18

44007015
ref: 18

NUT-FORK OUTER TUBE

€ 40.50

19

44046016
ref: 19

'O' RING-OUTER TUBE

€ 4.00

20

44015011
ref: 20

GUIDE-FORK INNER TUBE

€ 16.50

21

44013031
ref: 21

TUBE-FORK INNER

€ 162.00

22

44005039
ref: 22

TUBE-L.H FORK

€ 110.00

23

44045002
ref: 23

GASKET,FORK DRAIN PLU (NAS)

€ 3.00

24

220B0408
ref: 24

SCREW-PAN-CROS

€ 0.50

25

44006037
ref: 25

TUBE-R.H FORK

€ 214.00

26

44029019
ref: 26

GUIDE-FORK SPRING

€ 6.00

27

44041017
ref: 27

BOLT-FRNT AXLE PINCH

€ 3.00

28

28001008
ref: 28

REFLECTOR,FRONT,REFLEX

€ 33.50

29

46101004
ref: 29

KNOB-STEERING DAMPER

€ 9.00

30

315N1200A
ref: 30

NUT,12MM

€ 3.50

31

46126001
ref: 31

SPRING-STRG DAMP KNOB

€ 3.50

32

92090020
ref: 32

BOLT-STEERING STEM

€ 27.00

33

46100002
ref: 33

WASHER-WAVE

€ 7.00

34

92090007
ref: 34

NUT-STEERING STEM LCK

€ 8.00

35

46098016
ref: 35

CAP,STEERING STEM

€ 4.00

36

92047006
ref: 36

CONE-STRNG STEM

€ 11.00

37

46106005
ref: 37

PLATE-STRG DAMP STEEL

€ 7.50

38

46104005
ref: 38

PLATE-STRG DAMP FRCTN

€ 2.50

39

46105005
ref: 39

PLATE,STRG DAMP ANCH

€ 8.50

40

46106006
ref: 40

PLATE-STRG DAMP STEEL

€ 3.50

41

46124006
ref: 41

SPRING-STEERING DAMP

€ 9.00

42

46125005
ref: 42

NUT-STRG DAMPER GUIDE

€ 23.00

43

550D1615
ref: 43

PIN-COTTER,1.6X15

€ 1.50

44

114G0812
ref: 44

BOLT-SMALL,8X12

€ 2.00

45

461F0800
ref: 45

WASHER-SPRING,8MM

€ 0.50

46

27016024
ref: 46

LOCK ASSY-STEERING

€ 10.00

48

92099001
ref: 48

SCREW RIVET

€ 2.50

49

92033024
ref: 49

CIRCLIP-STEERING LOCK

€ 6.50

50

92037046
ref: 50

CLAMP,CABLE

€ 3.00

51

112G0612
ref: 51

BOLT-UPSET

€ 2.50

51

112G0612
ref: 51

BOLT-UPSET

€ 2.50

52

410B0600
ref: 52

WASHER-PLAIN-SMALL,6M

€ 0.50

53

461F0600
ref: 53

WASHER-SPRING,6MM

€ 0.50

54

4400107821
ref: 54

FRONT FORK ASSEMBLY,FLAT BLACK

€ 1,935.00

all assemblies
