FRAME/FRAME FITTINGS
S2 MACH II 1972 USA

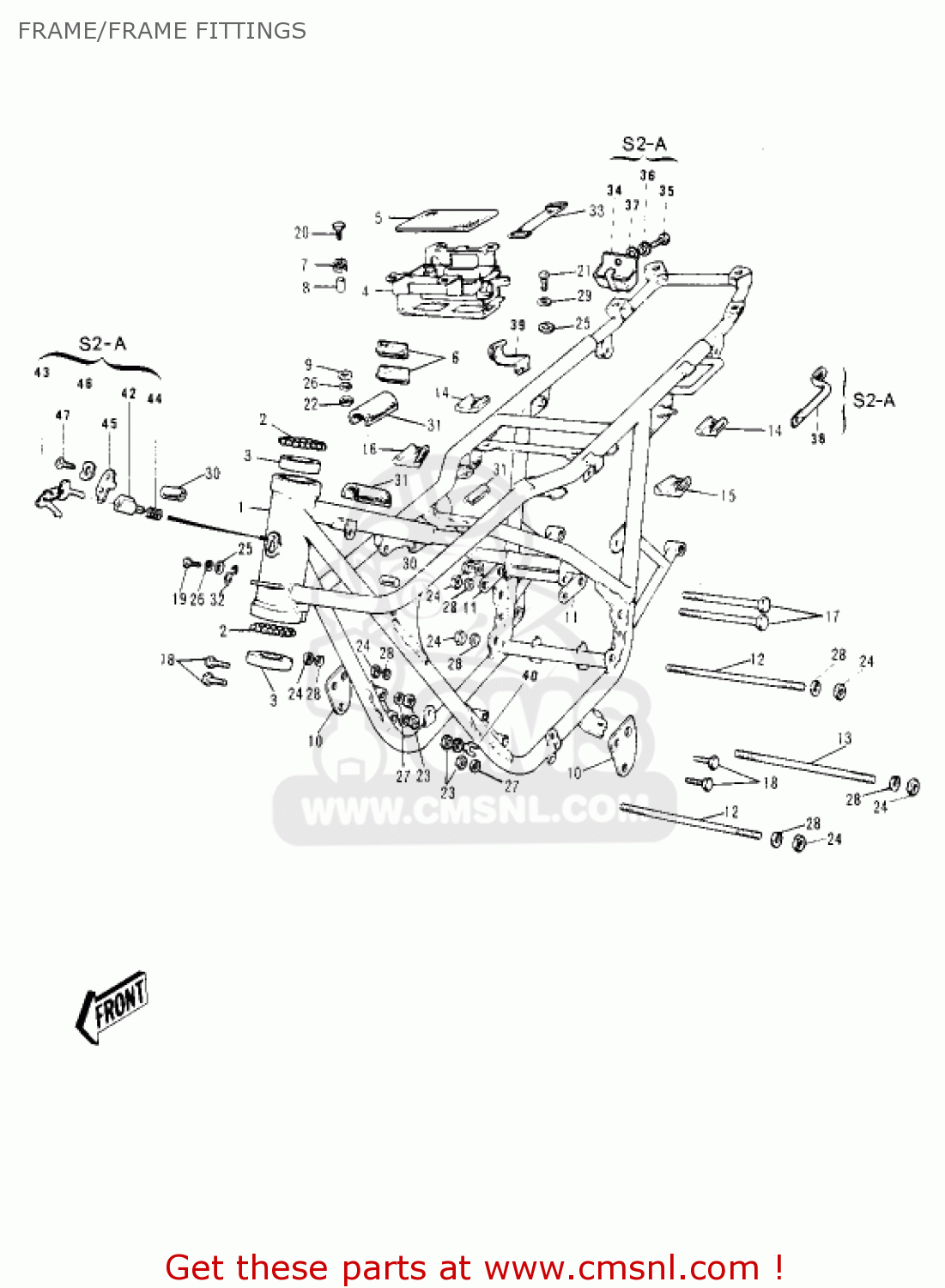

Frame/frame fittings diagram S2 MACH II 1972 USA
FRAME/FRAME FITTINGS S2 MACH II 1972 USA
×
prices are in EUR
ref
part #
description
quantity
1
32002046
ref: 1
S2
FRAME
€ 480.00
1
32002061
ref: 1
S2-A
FRAME
€ 480.00
2
600A0800
ref: 2
BALL-STEEL,1/4
€ 0.50
3
92048006
ref: 3
RACE-STRNG BEARIN-STE
€ 11.50
4
32099008
ref: 4
CASE-BATTERY
€ 37.00
5
32103006
ref: 5
MAT-BATTERY
€ 3.00
6
32103003
ref: 6
DAMPER,RECTIFIER RUBB
€ 3.50
7
92075076
ref: 7
DAMPER
€ 3.00
8
92027129
ref: 8
COLLAR,6.8X10X8.5
€ 3.00
9
92022125
ref: 9
WASHER,6.5X20X1.6
€ 1.00
10
32030022
ref: 10
PLATE-ENGINE MOUNT
€ 4.00
11
32030023
ref: 11
PLATE-ENGINE MOUNT
€ 8.00
12
92003182
ref: 12
BOLT, 10 X 237
€ 7.00
13
92003181
ref: 13
BOLT,10X225
€ 8.50
14
31082007
ref: 14
RUBBER PAD
€ 3.00
15
31082008
ref: 15
RUBBER PAD
€ 4.50
16
31082009
ref: 16
RUBBER PAD
€ 6.50
17
920011602
ref: 17
BOLT,FLANGED,10X110
€ 7.50
17
920011248
ref: 17
BOLT,HEX HEAD,10X125
€ 8.00
18
920011182
ref: 18
BOLT,10X45
€ 6.00
19
112G0612
ref: 19
BOLT-UPSET
€ 2.50
20
112B0622
ref: 20
BOLT, 6X22
€ 2.50
21
220B0614
ref: 21
SCREW-PAN HEAD,6X14
€ 2.00
22
311B0600
ref: 22
NUT,6MM
€ 0.50
23
311B0800
ref: 23
NUT,8MM
€ 0.50
24
314B1000
ref: 24
NUT,10MM
€ 0.50
25
410B0600
ref: 25
WASHER-PLAIN-SMALL,6M
€ 0.50
26
461F0600
ref: 26
WASHER-SPRING,6MM
€ 0.50
27
461F0800
ref: 27
WASHER-SPRING,8MM
€ 0.50
28
461F1000
ref: 28
WASHER-SPRING,10MM
€ 0.50
29
464H0600
ref: 29
WASHER-LOCK,6MM
€ 0.50
30
92075044
ref: 30
DAMPER,FUEL TANK
€ 3.00
31
51067002
ref: 31
MAT-FUEL TANK
€ 12.00
32
92037108
ref: 32
CLAMP
€ 6.00
33
92072012
ref: 33
BAND-TOOL
€ 4.50
34
32132001
ref: 34
S2-A
COVER-SPARK PLUG
€ 1.50
35
112B0614
ref: 35
S2-A
BOLT-UPSET 6X14
€ 2.50
36
461F0600
ref: 36
S2-A
WASHER-SPRING,6MM
€ 0.50
37
92022024
ref: 37
S2-A
WASHER,7X16X1.2
€ 2.50
38
32109013
ref: 38
S2-A
GRIP-FRAME
€ 15.00
39
32122006
ref: 39
S2-A
BRACKET-HELMET HOLDER
€ 2.00
40
92025048
ref: 40
S2-A
SHIM-ENG FIT RR,0.5MM
€ 0.50
40
92025049
ref: 40
S2-A
SHIM-ENG FIT RR,0.8MM
€ 0.50
40
92025050
ref: 40
S2-A
SHIM-ENG FIT RR,1.0MM
€ 0.50
40
92025051
ref: 40
S2-A
SHIM-ENG FIT RR,1.6MM
€ 0.50
40
92025052
ref: 40
S2-A
SHIM-ENG FIT RR,2.0MM
€ 0.50
41
92025053
ref: 41
S2-A
SHIM,T=0.5
€ 3.00
41
92025054
ref: 41
S2-A
SHIM-ENG FIT FR,0.8MM
€ 2.50
41
92025055
ref: 41
S2-A
SHIM-ENG FIT FR,1.0MM
€ 1.50
41
92025056
ref: 41
S2-A
SHIM-ENG FIT FR,1.6MM
€ 1.00
41
92025057
ref: 41
S2-A
SHIM,T=2.0
€ 2.50
41
92025058
ref: 41
S2-A
SHIM,T=2.3
€ 2.50
42
27016030
ref: 42
S2-A
LOCK ASSY-STEERING
€ 11.50
43
2701801665
ref: 43
S2-A
KEY SET,#265
€ 4.50
43
2701801679
ref: 43
S2-A
KEY SET,#279
€ 4.50
44
27032001
ref: 44
S2-A
SPRING-STEERING LOCK
€ 3.50
45
110121134
ref: 45
S2-A
CAP,STEERING LOCK
€ 4.50
46
92097003
ref: 46
S2-A
WASHER
€ 2.50
47
92008007
ref: 47
S2-A
SCREW-TAPPING
€ 2.50
