AIR CLEANER/MUFFLERS
S2 MACH II 1972 USA

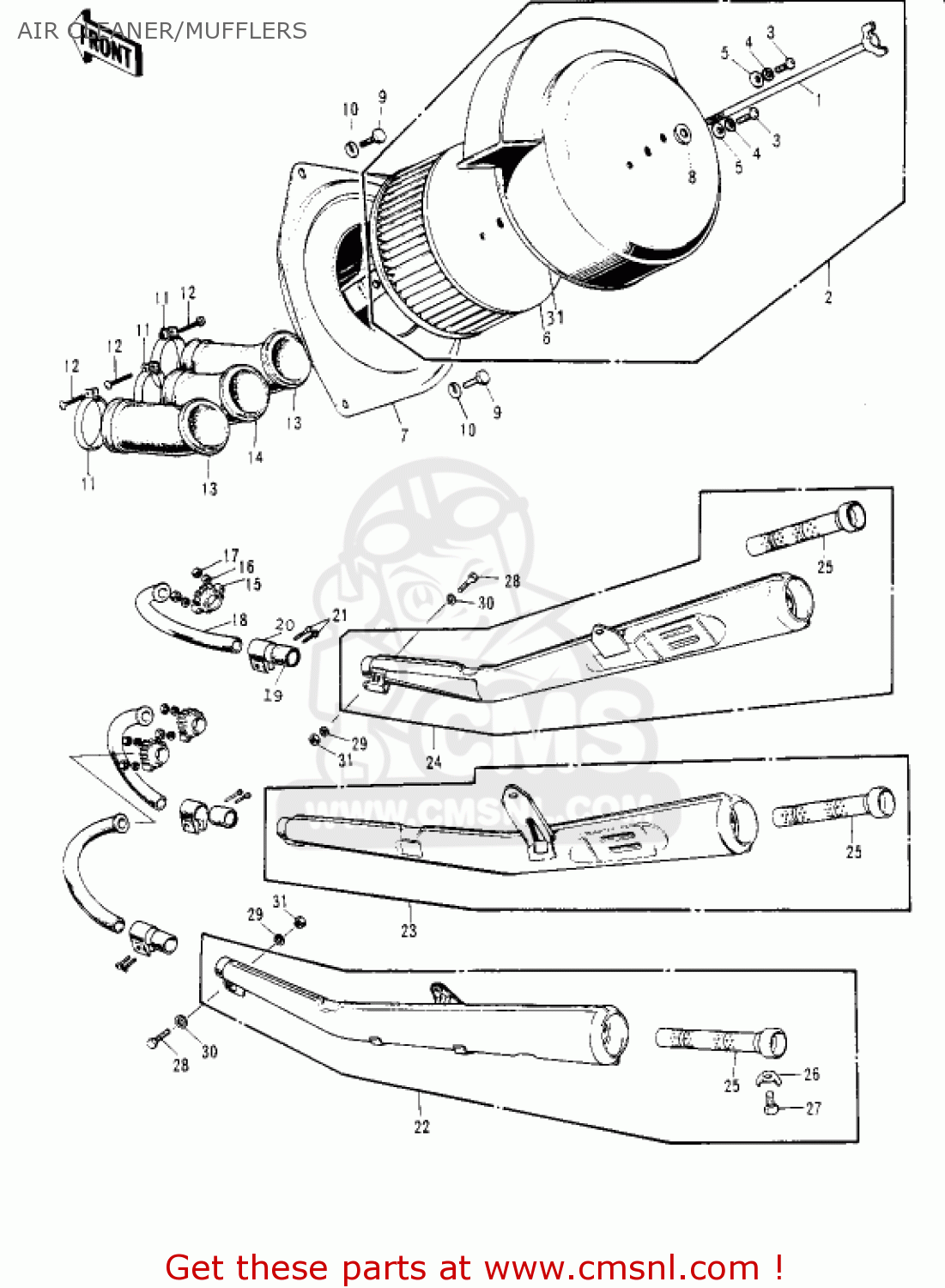

Air cleaner/mufflers diagram S2 MACH II 1972 USA
AIR CLEANER/MUFFLERS S2 MACH II 1972 USA
×
prices are in EUR
ref
part #
description
quantity
1
92003073
ref: 1
BOLT-AIR CLEANER FIT
€ 7.00
2
11010039
ref: 2
AIR CLEANER ASSY
€ 71.50
2
1101003921
ref: 2
AIR CLEANER ASY,BLACK
€ 71.50
3
220B0408
ref: 3
SCREW-PAN-CROS
€ 0.50
4
461F0400
ref: 4
WASHER-SPRING,4MM
€ 0.50
5
410B0400
ref: 5
WASHER-PLAIN-SMALL,4M
€ 0.50
6
11013026
ref: 6
ELEMENT-AIR CLEANER
€ 18.00
7
11011013
ref: 7
BODY-AIR CLEANER
€ 25.00
8
92022021
ref: 8
WASHER-LEG SHIELD FIT
€ 2.00
9
112G0610
ref: 9
BOLT,6X10
€ 0.50
10
461F0600
ref: 10
WASHER-SPRING,6MM
€ 0.50
11
92037034
ref: 11
CLAMP-AIR CLEANER
€ 2.00
12
220B0635
ref: 12
SCREW-PAN HEAD,6X35
€ 1.00
13
11015024
ref: 13
DUCT,AIR INLET,LH&RH
€ 27.00
14
11015025
ref: 14
DUCT,AIR INLET,CNT
€ 12.50
15
18069038
ref: 15
HOLDER-EXHAUST PIPE
€ 37.00
16
461F0800
ref: 16
WASHER-SPRING,8MM
€ 0.50
17
311B0800
ref: 17
NUT,8MM
€ 0.50
18
18049074
ref: 18
PIPE-EXHAUST
€ 50.50
19
18043008
ref: 19
SEAL,MUFFLER
€ 27.00
20
1804400479
ref: 20
HOLDER,MUFFLER CONECT
€ 19.00
21
220B0628
ref: 21
SCREW-PAN HEAD,6X28
€ 2.50
22
18001036
ref: 22
MUFFLER ASSY,L.H
€ 155.50
23
18001037
ref: 23
MUFFLER ASSY,CENTER
€ 216.50
24
18001038
ref: 24
MUFFLER ASSY,R.H
€ 233.50
25
18033048
ref: 25
BAFFLE TUBE
€ 41.00
26
92024016
ref: 26
WASHER-LOCK,6MM
€ 1.50
27
112G0612
ref: 27
BOLT-UPSET
€ 2.50
28
115G0820
ref: 28
BOLT,8X20
€ 2.00
29
461F0800
ref: 29
WASHER-SPRING,8MM
€ 0.50
30
411B0800
ref: 30
WASHER-PLAIN,8MM
€ 0.50
31
11024001
ref: 31
CLEANER CAP SEAL,RUBBER
€ 17.00
