TRANSMISSION/CHANGE DRUM
H2A MACH IV 1973 CANADA

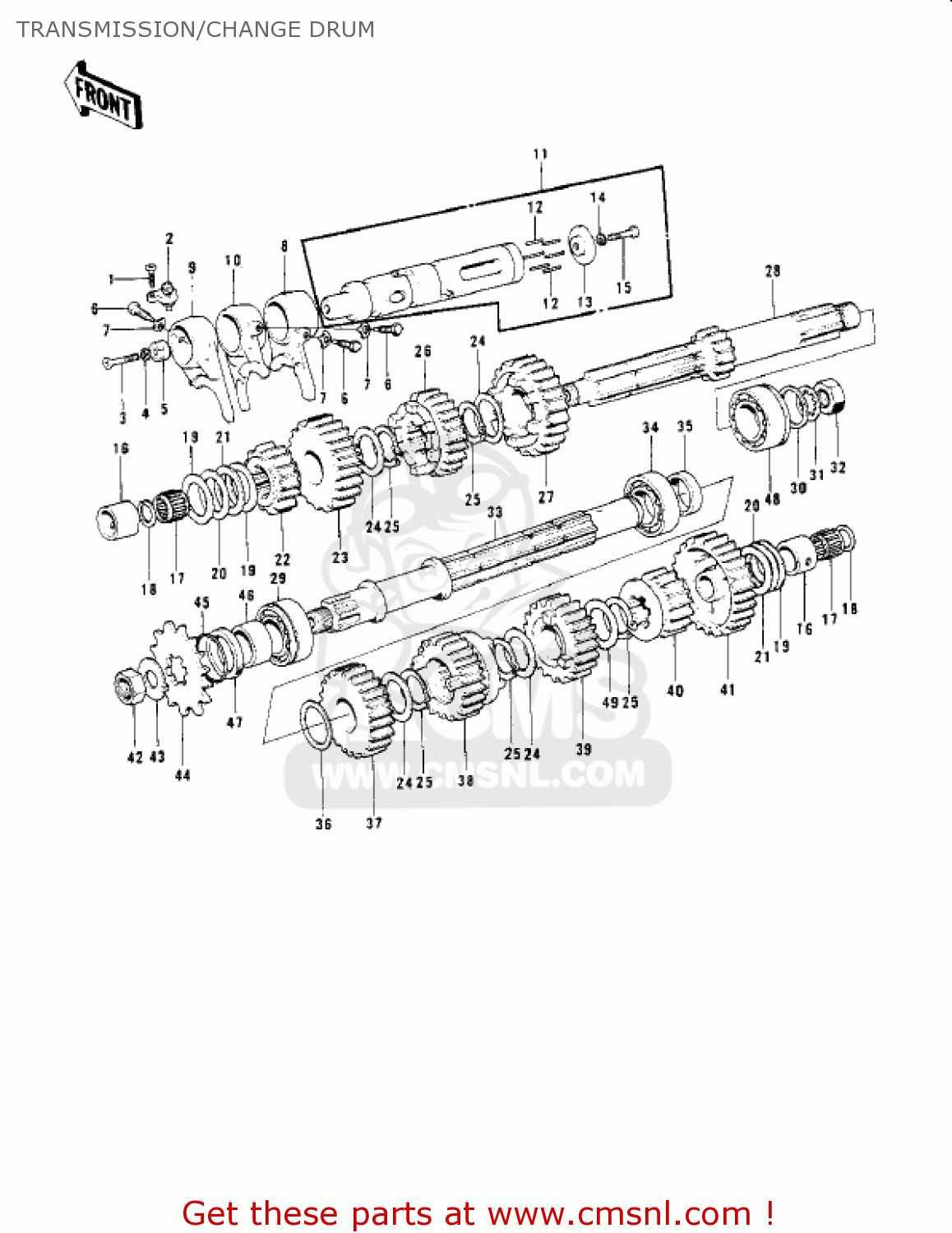

Transmission/change drum diagram H2A MACH IV 1973 CANADA
TRANSMISSION/CHANGE DRUM H2A MACH IV 1973 CANADA
×
prices are in EUR
ref
part #
description
quantity
1
221B0616
ref: 1
SCREW-CNTSNK HD,6X16
€ 0.50
2
13151012
ref: 2
SWITCH-NEUTRAL
€ 6.50
3
220B0625
ref: 3
SCREW-PAN HEAD,6X25
€ 1.50
4
461F0600
ref: 4
WASHER-SPRING,6MM
€ 0.50
5
13147001
ref: 5
ROTOR-NEUTRAL SWITCH
€ 3.00
6
92043016
ref: 6
PIN,SELECT FORK GUIDE
€ 12.50
7
92031001
ref: 7
WASHER,LOCK,10MM
€ 7.00
8
13140047
ref: 8
FORK-SELECTOR,LOW
€ 117.50
9
13140065
ref: 9
FORK,SELECTOR,2ND-3RD
€ 97.00
10
13140048
ref: 10
FORK-SELECTOR,TOP
€ 74.50
11
13239007
ref: 11
DRUM ASSY-GEAR CHANGE
€ 298.50
12
92042014
ref: 12
PIN-GEAR CHANGE DRUM
€ 0.50
13
13142004
ref: 13
PLATE-CHANGE DRUM PIN
€ 1.50
14
464H0600
ref: 14
WASHER-LOCK,6MM
€ 0.50
15
220B0614
ref: 15
SCREW-PAN HEAD,6X14
€ 2.00
16
92028073
ref: 16
BUSH
€ 15.00
17
92046010
ref: 17
BEARING-NEEDLE,#KT202
€ 26.50
18
92033015
ref: 18
CIRCLIP
€ 2.50
19
92022112
ref: 19
WASHER,20.5X30X1,STEE
€ 6.00
20
92022144
ref: 20
SHIM-KICK SHAFT
€ 4.50
21
92022113
ref: 21
WASHER,20.5X30X1
€ 6.00
22
13130027
ref: 22
2ND GEAR-DRIVE SHAFT
€ 52.00
23
13134011
ref: 23
4TH GEAR-DRIVE SHAFT
€ 48.50
24
92022076
ref: 24
H2/A
WASHER,25MM
€ 7.00
24
92022161
ref: 24
H2-B/C
WASHER-THRUST,25MM
€ 7.00
25
92033026
ref: 25
H2/A
CIRCLIP
€ 6.00
25
92033026
ref: 25
H2-B/C
CIRCLIP
€ 6.00
26
13132025
ref: 26
3RD GEAR-DRIVE SHAFT
€ 51.00
27
13136035
ref: 27
TOP GEAR-DRIVE SHAFT
€ 57.00
28
13127033
ref: 28
SHAFT-DRIVE
€ 88.50
29
92045010
ref: 29
BEARING-BALL,#6205NX3
€ 23.00
30
92022114
ref: 30
WASHER-THRUST
€ 1.00
31
463G2000
ref: 31
WASHER-LOCK,20MM
€ 0.50
32
92016043
ref: 32
NUT,20MM
€ 9.50
33
13128020
ref: 33
SHAFT-OUTPUT
€ 124.00
34
601B6005
ref: 34
BEARING-BALL,#6005C3
€ 11.50
35
92027052
ref: 35
COLLAR
€ 7.00
36
92022225
ref: 36
WASHER-THRUST
€ 3.50
37
13131033
ref: 37
2ND GEAR-OUTPUT SHAFT
€ 67.00
38
13135015
ref: 38
4TH GEAR-OUTPUT SHAFT
€ 74.50
39
13133024
ref: 39
3RD GEAR-OUTPUT SHAFT
€ 81.00
40
13137019
ref: 40
TOP GEAR-OUTPUT SHAFT
€ 116.50
41
13129036
ref: 41
LOW GEAR-OUTPUT SHAFT
€ 74.50
42
92015019
ref: 42
NUT,18MM
€ 4.00
43
92024067
ref: 43
WASHER,LOCK
€ 2.00
44
13144030
ref: 44
STD
SPROCKET-OUTPUT,15T
€ 29.50
44
13144036
ref: 44
ENGINE SPROCKET,16T
€ 15.50
44
13144035
ref: 44
ENGINE SPROCKET,14T
€ 29.50
45
92055035
ref: 45
O RING
€ 3.00
46
920261024
ref: 46
SPACER-ENG SPROCKET
€ 13.00
47
92050024
ref: 47
OIL SEAL SC325210
€ 5.00
48
92045020
ref: 48
BEARING-BALL,#6305N
€ 29.00
49
92024033
ref: 49
WASHER,TOOTHED,25.5X3
€ 4.50
