SWING ARM/SHOCK ABSORBERS (H2/A)
H2A MACH IV 1973 CANADA

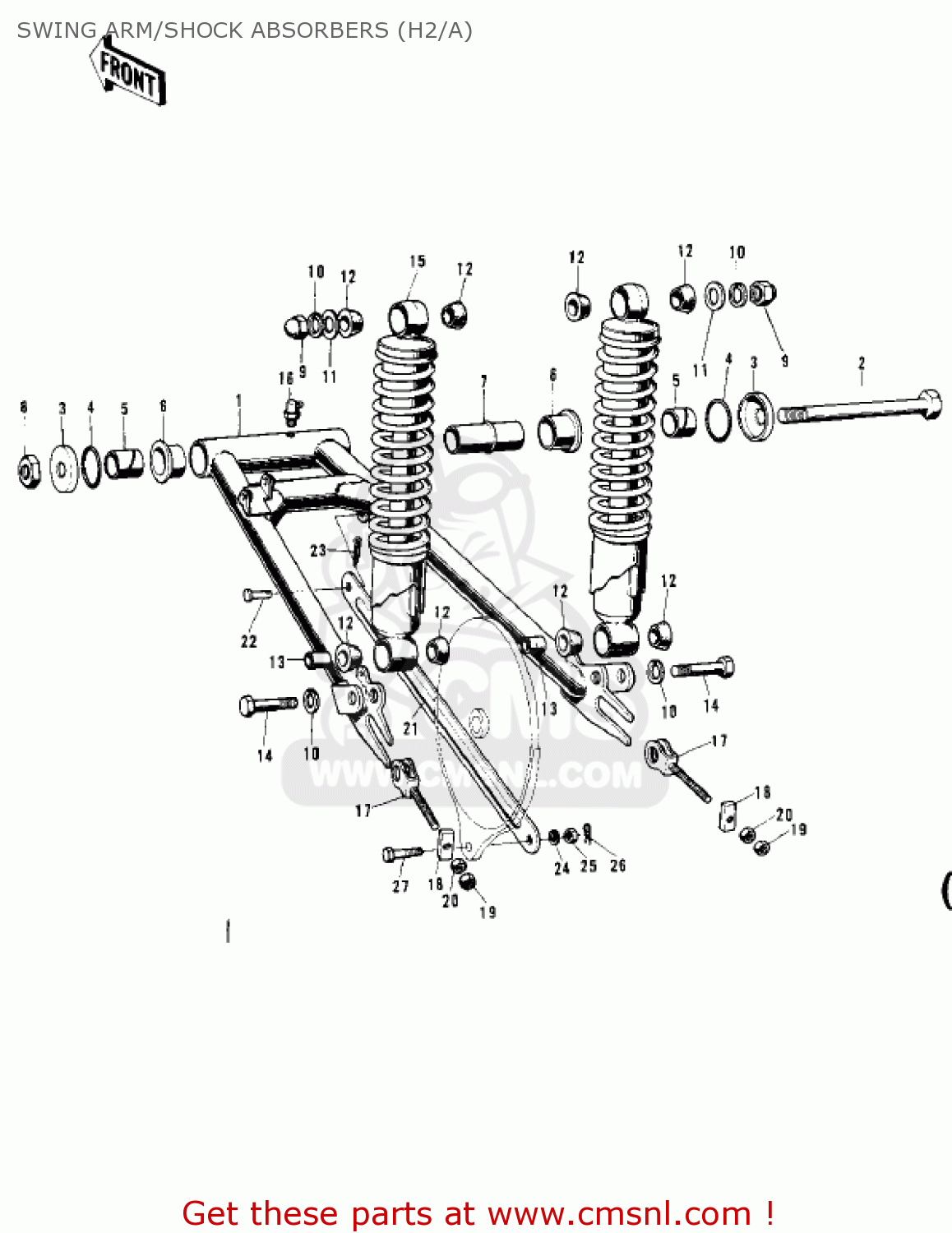

Swing arm/shock absorbers (h2/a) diagram H2A MACH IV 1973 CANADA
SWING ARM/SHOCK ABSORBERS (H2/A) H2A MACH IV 1973 CANADA
×
prices are in EUR
ref
part #
description
quantity
1
33001049
ref: 1
ARM-SWINGING
€ 120.50
2
33032038
ref: 2
SHAFT-SWING ARM PIVOT
€ 42.00
3
33035007
ref: 3
CAP,SWING ARM
€ 10.00
4
671B2530
ref: 4
O RING,30MM
€ 3.00
5
33034009
ref: 5
SLEEVE,SWING ARM
€ 24.50
6
33033009
ref: 6
BUSHING,SWING ARM
€ 57.00
7
33034008
ref: 7
SLEEVE-SWING ARM,LONG
€ 7.00
8
92019012
ref: 8
NUT,LOCK,16MM
€ 11.00
9
92020003
ref: 9
NUT-SHOCK ABSORBER
€ 4.00
10
461F1000
ref: 10
WASHER-SPRING,10MM
€ 0.50
11
92022044
ref: 11
WASHER,10.5X26X2.3
€ 2.50
12
45017001
ref: 12
DAMPER,SHOCKABSORBER
€ 4.00
13
45016003
ref: 13
COLLAR,SHOCKABSORBER
€ 12.50
14
113N1035
ref: 14
BOLT-HEX HEAD,10X35
€ 6.00
15
45014061
ref: 15
INCL. REF. #
SHOCK ABSORBER-REAR
€ 78.00
16
92005002
ref: 16
GREASE NIPPLE
€ 4.00
17
33040044
ref: 17
ADJUSTER-CHAIN
€ 16.00
18
33041002
ref: 18
PLATE,CHAIN ADJUSTER
€ 9.50
19
312B0800
ref: 19
NUT,8MM
€ 0.50
20
311B0800
ref: 20
NUT,8MM
€ 0.50
21
43007027
ref: 21
TORQUE LINK-REAR BRK
€ 18.50
21
43007033
ref: 21
TORQUE LINK-REAR BRK
€ 18.50
22
43009001
ref: 22
PIN-REAR TORQUE LINK
€ 4.50
23
550D3025
ref: 23
PIN-COTTER,3.0X25
€ 0.50
24
461F1000
ref: 24
WASHER-SPRING,10MM
€ 0.50
25
315B1000
ref: 25
NUT,10MM
€ 0.50
26
554A0800
ref: 26
PIN-SNAP,8MM
€ 1.00
27
92003097
ref: 27
BOLT-HEX HEAD,10X40
€ 4.50
