HANDLEBAR (H2-B/C)
H2A MACH IV 1973 CANADA

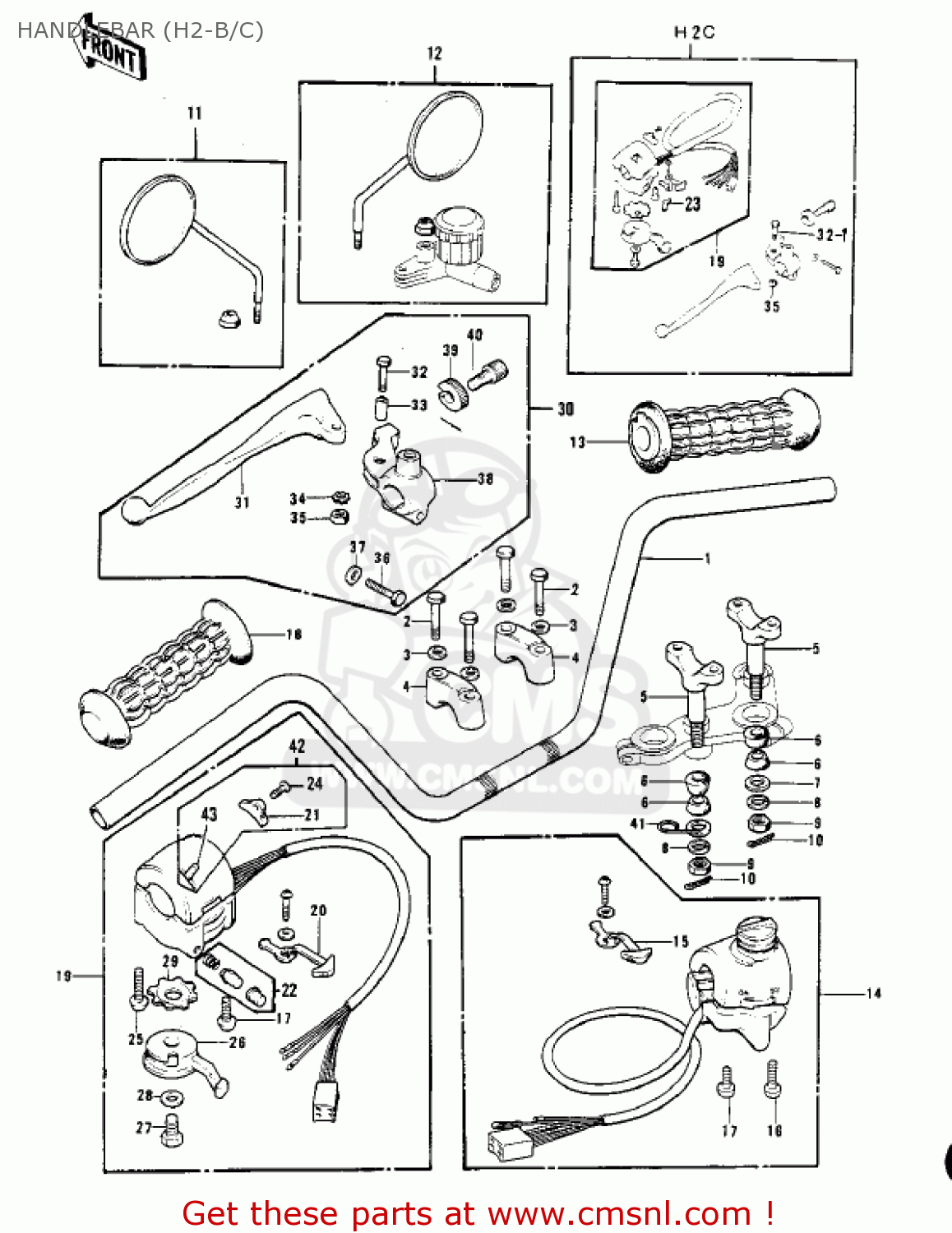

Handlebar (h2-b/c) diagram H2A MACH IV 1973 CANADA
HANDLEBAR (H2-B/C) H2A MACH IV 1973 CANADA
×
prices are in EUR
ref
part #
description
quantity
1
46003032
ref: 1
HANDLEBAR
€ 58.50
2
920011405
ref: 2
BOLT,8X38
€ 10.00
3
461F0800
ref: 3
WASHER-SPRING,8MM
€ 0.50
4
46012008
ref: 4
HOLDER-HANDLE,UPP
€ 23.00
5
46012010
ref: 5
HOLDER-HANDLE,LWR
€ 20.00
6
92075275
ref: 6
DAMPER,HANDLE
€ 6.00
7
92022196
ref: 7
WASHER,10.5X30X2
€ 2.00
8
461F1000
ref: 8
WASHER-SPRING,10MM
€ 0.50
9
314B1000
ref: 9
NUT,10MM
€ 0.50
10
554A0800
ref: 10
PIN-SNAP,8MM
€ 1.00
10
554A0800
ref: 10
PIN-SNAP,8MM
€ 1.00
11
56003009
ref: 11
MIRROR-ASSY,LH
€ 50.00
12
56002020
ref: 12
MIRROR-ASSY,RH
€ 47.50
13
46019023
ref: 13
GRIP ASSY-THROTTLE
€ 13.50
14
46132003
ref: 14
H2-B
CASE ASSY,R.H
€ 96.50
14
46132019
ref: 14
H2-C
CASE ASSEMBLY,RH
€ 0.00
15
46043006
ref: 15
KNOB-ASSY,LIGHTING SW
€ 8.00
16
220B0535
ref: 16
SCREW-PAN-CROS
€ 2.00
17
220B0522
ref: 17
SCREW-PAN-CROS
€ 0.50
18
46075017
ref: 18
GRIP,LH
€ 15.50
19
46091014
ref: 19
H2-B
CASE ASSEMBLY,LH
€ 308.50
19
46091047
ref: 19
H2-C
CASE ASSEMBLY,LH
€ 280.50
20
46043005
ref: 20
KNOB-LIGHTING SW L.H
€ 6.50
21
46044013
ref: 21
KNOB,LIGHTING SWITCH,
€ 8.00
22
270101009
ref: 22
H2-B
SWITCH ASSY,HORN BUTN
€ 5.50
23
270101001
ref: 23
H2-C
BUTTON, HORN PUSH
€ 6.50
24
220B0305A
ref: 24
SCREW-PAN HEAD,3X5
€ 1.00
25
220B0530
ref: 25
SCREW-PAN-CROS
€ 2.00
26
46096009
ref: 26
LEVER,STARTER
€ 15.50
27
110B0608
ref: 27
BOLT-HEX HEAD,6X8
€ 0.50
28
410B0600
ref: 28
WASHER-PLAIN-SMALL,6M
€ 0.50
29
92095012
ref: 29
WASHER-LOCK
€ 3.50
30
46076036
ref: 30
LEVER ASSY,CLUTCH
€ 47.00
31
46092015
ref: 31
LEVER-GRIP,CLUTCH
€ 11.50
32
92007020
ref: 32
H2-B
BOLT-HEX HEAD,5X20
€ 2.50
32-1
92007046
ref: 32-1
H2-C
BOLT,HEX HEAD,5X22
€ 4.50
33
46059011
ref: 33
H2-B
COLLAR,LEVER
€ 3.50
34
464H0500
ref: 34
H2-B
WASHER-LOCK,5MM
€ 0.50
35
312B0500
ref: 35
H2-B
NUT-HEX,5MM
€ 0.50
35
92019014
ref: 35
H2-C
NUT-LOCK,5M/M
€ 2.50
36
110N0625
ref: 36
BOLT-HEX HEAD,6X25
€ 3.50
37
410B0600
ref: 37
WASHER-PLAIN-SMALL,6M
€ 0.50
38
4609401121
ref: 38
HOLDER-CLUTCH LEV,BLK
€ 23.00
39
46056005
ref: 39
NUT-LOCK
€ 6.00
40
46055006
ref: 40
SCREW-CABLE ADJUST
€ 15.50
41
92037148
ref: 41
CLAMP,CABLE
€ 3.00
42
99990530
ref: 42
DIMMER SWITCH KIT A
€ 1.00
43
46089016
ref: 43
H2-B
SWITCH ASSEMBLY,LH
€ 22.00
43
46089014
ref: 43
H2-C
SWITCH, L.H
€ 15.00
