FRAME/FRAME FITTINGS (H2/A)
H2A MACH IV 1973 CANADA

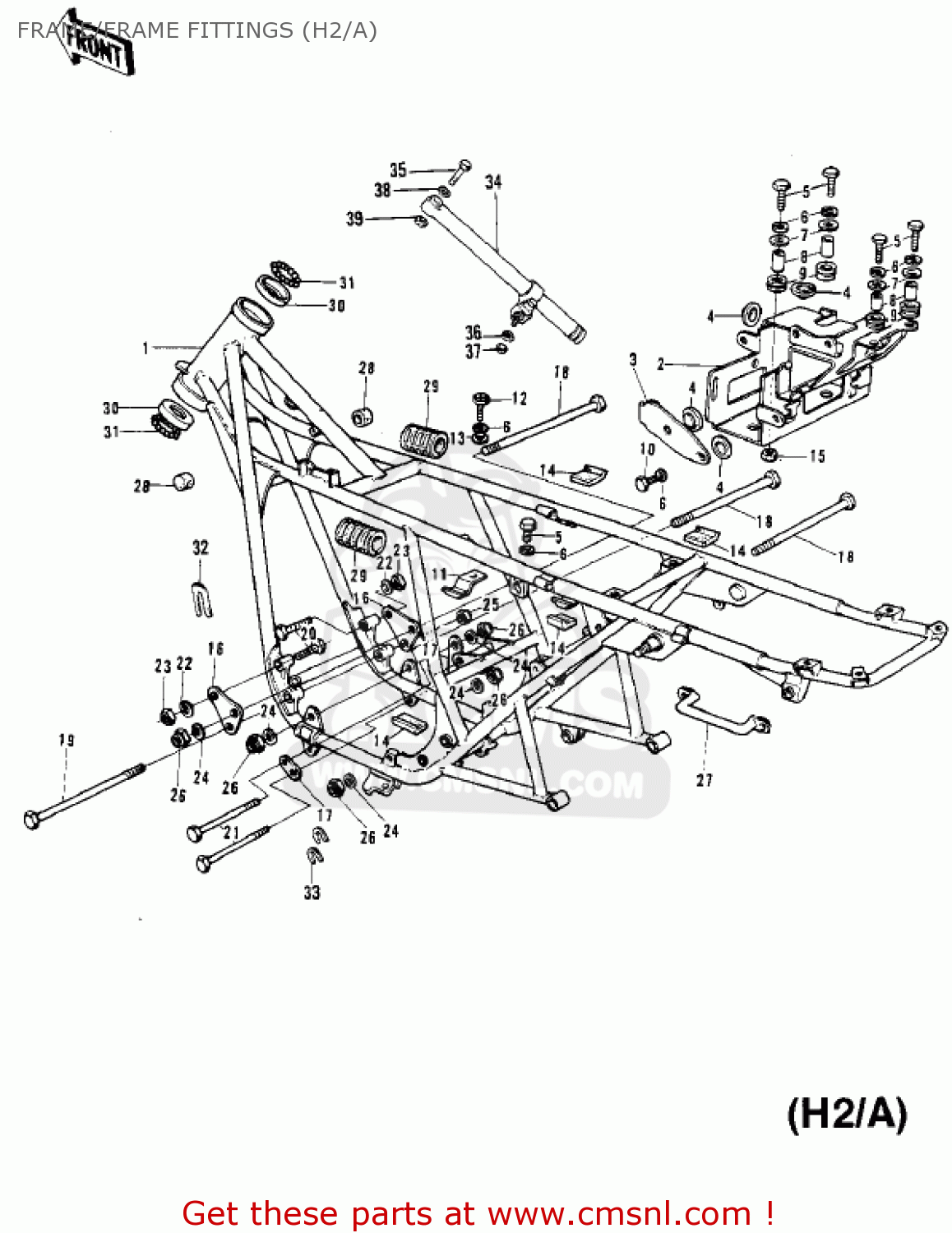

Frame/frame fittings (h2/a) diagram H2A MACH IV 1973 CANADA
FRAME/FRAME FITTINGS (H2/A) H2A MACH IV 1973 CANADA
×
prices are in EUR
ref
part #
description
quantity
1
32002045
ref: 1
FRAME
€ 749.50
2
32099007
ref: 2
CASE-BATTERY
€ 63.00
3
32100014
ref: 3
BAND-BATTERY
€ 3.50
4
92075078
ref: 4
DAMPER,RUBBER
€ 2.50
5
112G0620
ref: 5
BOLT 6X20
€ 1.00
6
461F0600
ref: 6
WASHER-SPRING,6MM
€ 0.50
7
92022125
ref: 7
WASHER,6.5X20X1.6
€ 1.00
8
92027129
ref: 8
COLLAR,6.8X10X8.5
€ 3.00
9
92075076
ref: 9
DAMPER
€ 3.00
10
112B0614
ref: 10
BOLT-UPSET 6X14
€ 2.50
11
32095010
ref: 11
BRACKET-SIDE COVER
€ 3.00
12
92001114
ref: 12
BOLT-HEX HEAD,6X16
€ 2.50
13
411B0600
ref: 13
WASHER-PLAIN,6MM
€ 0.50
14
31082005
ref: 14
DAMPER,RUBBER
€ 3.50
15
311B0600
ref: 15
NUT,6MM
€ 0.50
16
32030021
ref: 16
PLATE-ENGINE MOUNT
€ 4.00
17
32030016
ref: 17
PLATE-REAR ENG HOLDER
€ 4.00
18
92091024
ref: 18
BOLT-ENG MOUNT,10X274
€ 19.50
19
92091021
ref: 19
BOLT-ENG MOUNT,8X270
€ 4.00
20
920011219
ref: 20
BOLT,HEX HEAD,8X45
€ 2.50
21
920011248
ref: 21
BOLT,HEX HEAD,10X125
€ 8.00
22
461F0800
ref: 22
WASHER-SPRING,8MM
€ 0.50
23
311B0800
ref: 23
NUT,8MM
€ 0.50
24
410B1000
ref: 24
WASHER-PLAIN-SMALL,10
€ 0.50
25
920151124
ref: 25
NUT,LOCK,8MM
€ 3.50
26
920151429
ref: 26
NUT,10MM
€ 4.50
27
32109012
ref: 27
GRIP-FRAME
€ 23.00
28
92075044
ref: 28
DAMPER,FUEL TANK
€ 3.00
29
92075084
ref: 29
DAMPER,FUEL TANK
€ 6.50
30
92048006
ref: 30
RACE-STRNG BEARIN-STE
€ 11.50
31
600A0800
ref: 31
BALL-STEEL,1/4
€ 0.50
32
92025053
ref: 32
FRONT
SHIM,T=0.5
€ 3.00
32
92025054
ref: 32
FRONT
SHIM-ENG FIT FR,0.8MM
€ 2.50
32
92025055
ref: 32
FRONT
SHIM-ENG FIT FR,1.0MM
€ 1.50
32
92025056
ref: 32
FRONT
SHIM-ENG FIT FR,1.6MM
€ 1.00
32
92025057
ref: 32
FRONT
SHIM,T=2.0
€ 2.50
32
92025058
ref: 32
FRONT
SHIM,T=2.3
€ 2.50
33
92025048
ref: 33
REAR
SHIM-ENG FIT RR,0.5MM
€ 0.50
33
92025049
ref: 33
REAR
SHIM-ENG FIT RR,0.8MM
€ 0.50
33
92025050
ref: 33
REAR
SHIM-ENG FIT RR,1.0MM
€ 0.50
33
92025051
ref: 33
REAR
SHIM-ENG FIT RR,1.6MM
€ 0.50
33
92025052
ref: 33
REAR
SHIM-ENG FIT RR,2.0MM
€ 0.50
34
46117006
ref: 34
OPTION
SHOCKABSORBER
€ 335.00
35
115G0830
ref: 35
OPTION
BOLT-SMALL-UPSET,8X30
€ 3.00
36
461F0800
ref: 36
OPTION
WASHER-SPRING,8MM
€ 0.50
37
920151124
ref: 37
OPTION
NUT,LOCK,8MM
€ 3.50
38
411B0800
ref: 38
OPTION
WASHER-PLAIN,8MM
€ 0.50
39
311B0800
ref: 39
OPTION
NUT,8MM
€ 0.50
