ENGINE COVERS
H2A MACH IV 1973 CANADA

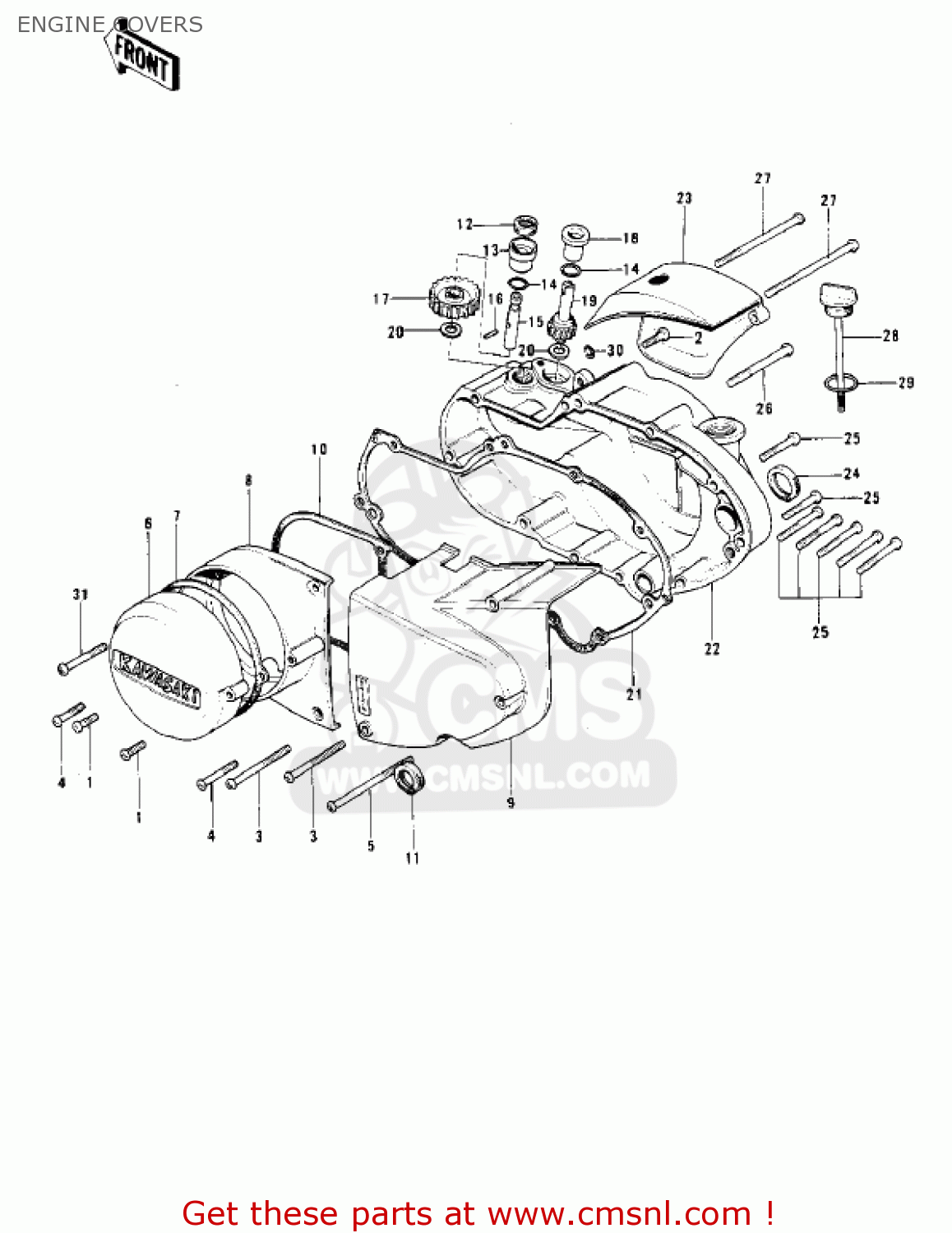

Engine covers diagram H2A MACH IV 1973 CANADA
ENGINE COVERS H2A MACH IV 1973 CANADA
×
prices are in EUR
ref
part #
description
quantity
1
220B0620
ref: 1
SCREW-PAN HEAD,6X20
€ 2.50
2
220B0625
ref: 2
SCREW-PAN HEAD,6X25
€ 1.50
3
220B0655
ref: 3
SCREW-PAN HEAD,6X55
€ 2.50
4
220B0635
ref: 4
SCREW-PAN HEAD,6X35
€ 1.00
5
220B0685
ref: 5
SCREW-PAN HEAD,6X85
€ 3.50
6
1402701680
ref: 6
CAP,BREAKER POINT,BUF
€ 77.00
7
14050005
ref: 7
H2/A
GASKET-POINT CAP (MCA)
€ 21.00
7
14050008
ref: 7
H2-B/C
GASKET,POINT CAP (MCA)
€ 11.50
8
1403104980
ref: 8
COVER,L.H ENGINE,BUF
€ 73.50
9
1402602480
ref: 9
H2/A
COVER,CHN CASE
€ 35.00
9
1402602480
ref: 9
H2-B/C
COVER,CHN CASE
€ 35.00
10
14045022
ref: 10
GASKET,L.H ENG COVER (MCA)
€ 15.00
11
92049004
ref: 11
OIL SEAL SB12205
€ 6.00
12
92054004
ref: 12
OIL SEAL
€ 14.50
13
92028075
ref: 13
BUSH
€ 14.50
14
92055025
ref: 14
'O' RING
€ 3.00
15
13226004
ref: 15
SHAFT-TACHOMETER GEAR
€ 6.00
16
92042035
ref: 16
PIN,DOWEL,2.5X12.8
€ 2.50
17
13224005
ref: 17
GEAR-TACHOMETER
€ 5.50
18
92028074
ref: 18
BUSH
€ 15.00
19
16085011
ref: 19
GEAR-OIL PUMP
€ 65.00
20
92026026
ref: 20
WASHER-THRUST
€ 5.50
21
14046021
ref: 21
GASKET-R.H ENGINE COV (MCA)
€ 22.50
22
1403209880
ref: 22
H2/A
COVER,R.H ENGINE,BUFF
€ 172.00
22
1403209880
ref: 22
H2-B/C
COVER,R.H ENGINE,BUFF
€ 172.00
23
1403003380
ref: 23
COVER-OIL PUMP
€ 52.50
24
92049012
ref: 24
OIL SEAL SB20285
€ 8.50
25
220B0630
ref: 25
SCREW-PAN HEAD,6X30
€ 2.50
26
220B0660
ref: 26
SCREW-PAN HEAD,6X60
€ 2.50
27
220B06100
ref: 27
SCREW-PAN HEAD,6X100
€ 3.00
28
16115002
ref: 28
PLUG-OIL FILLER
€ 8.50
29
670B2020
ref: 29
O RING,20MM
€ 1.00
30
482K4000
ref: 30
CIRCLIP-TYPE-E,4MM
€ 0.50
31
220B0645
ref: 31
SCREW-PAN HEAD,6X45
€ 2.50
