SWING ARM/SHOCK ABSORBERS ('74-'
G5A 1973 CANADA

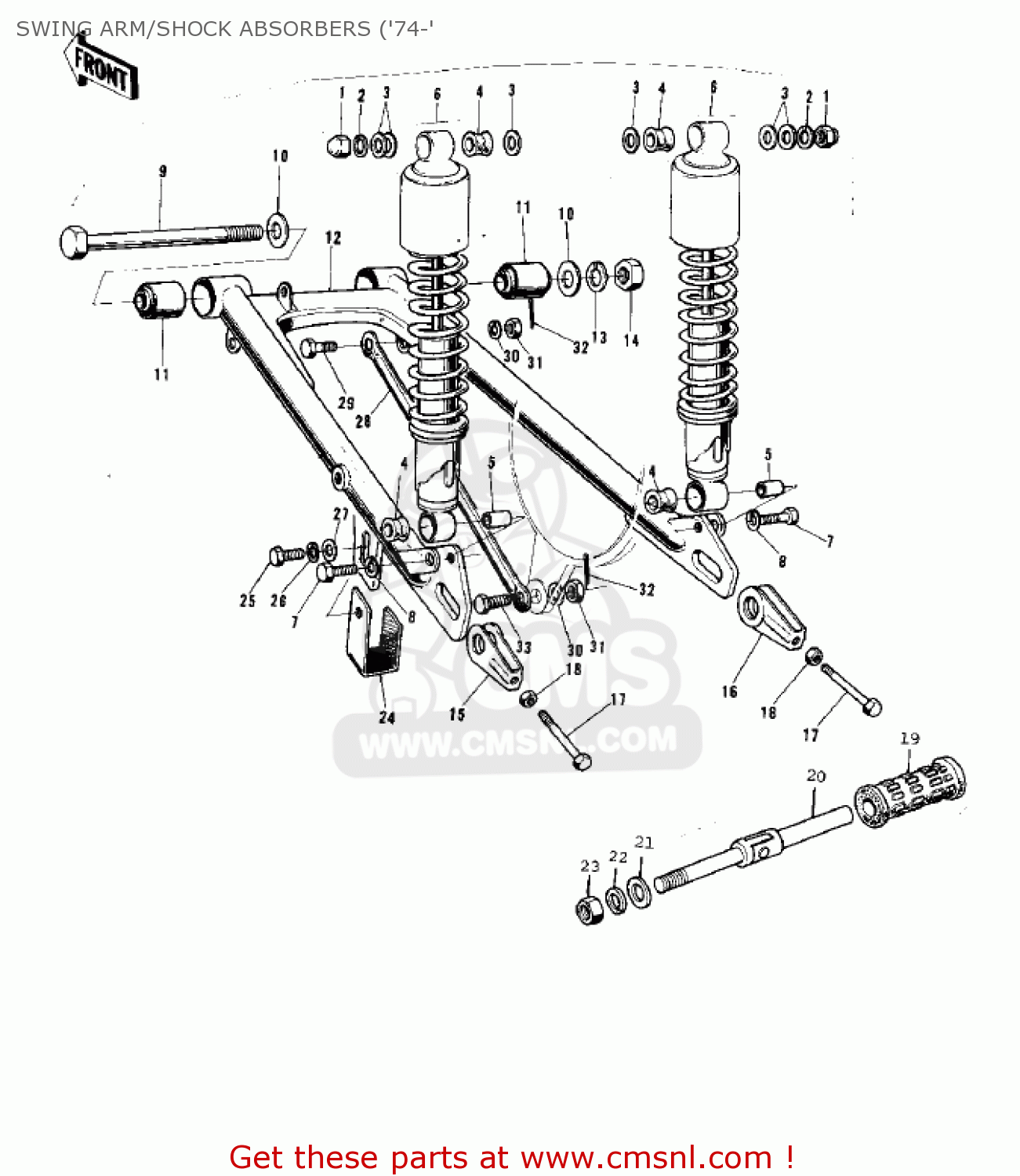

Swing arm/shock absorbers ('74-' diagram G5A 1973 CANADA
SWING ARM/SHOCK ABSORBERS ('74-' G5A 1973 CANADA
×
prices are in EUR
ref
part #
description
quantity
1
92020014
ref: 1
NUT,CAP,12MM
€ 6.50
2
461F1200
ref: 2
WASHER-SPRING,12MM
€ 0.50
3
410B1200
ref: 3
WASHER-PLAIN-SMALL,12
€ 0.50
4
920751020
ref: 4
DAMPER,SHOCKABSORBER
€ 3.00
5
45016003
ref: 5
COLLAR,SHOCKABSORBER
€ 12.50
?
45014074
ref: ?
Includes items 4 - 6
SHOCK ABSORBER,REAR
€ 213.50
7
113N1035
ref: 7
BOLT-HEX HEAD,10X35
€ 6.00
8
461F1000
ref: 8
WASHER-SPRING,10MM
€ 0.50
9
33032034
ref: 9
SHAFT-SWING ARM
€ 22.50
10
410B1200
ref: 10
WASHER-PLAIN-SMALL,12
€ 0.50
11
92092005
ref: 11
BUSH-SWING ARM SHAFT
€ 9.50
12
33001047
ref: 12
ARM,SWING
€ 84.00
13
461F1200
ref: 13
WASHER-SPRING,12MM
€ 0.50
14
314B1200
ref: 14
NUT-HEX-FINE
€ 1.00
15
33040045
ref: 15
I.D=16.5 M/M
ADJUSTER-CHAIN,LH
€ 9.50
16
33040046
ref: 16
I.=12.5 M/M
ADJUSTER-CHAIN,RH
€ 10.50
17
920011399
ref: 17
BOLT,8X50
€ 6.00
18
312B0800
ref: 18
NUT,8MM
€ 0.50
19
92076008
ref: 19
OPTION
RUBBER-REAR FOOTREST
€ 5.50
20
34030001
ref: 20
OPTION
BAR SET,RR,FOOTREST
€ 7.00
21
410B1000
ref: 21
OPTION
WASHER-PLAIN-SMALL,10
€ 0.50
22
461F1000
ref: 22
OPTION
WASHER-SPRING,10MM
€ 0.50
23
314B1000
ref: 23
OPTION
NUT,10MM
€ 0.50
24
55020007
ref: 24
GUARD-CHAIN
€ 6.50
25
115G0816
ref: 25
BOLT-HEX,HEAD 8X16
€ 0.50
26
461F0800
ref: 26
WASHER-SPRING,8MM
€ 0.50
27
410B0800
ref: 27
WASHER-PLAIN-SMALL,8M
€ 0.50
28
43007028
ref: 28
ROD-TORQUE,RR
€ 11.50
29
92003017
ref: 29
BOLT-TRQ LINK 10X25
€ 3.50
30
461F1000
ref: 30
WASHER-SPRING,10MM
€ 0.50
31
314B1000
ref: 31
NUT,10MM
€ 0.50
32
550D2015
ref: 32
PIN-COTTER,2.0X15
€ 1.00
33
92003003
ref: 33
BOLT-HEX HEAD,10X32
€ 4.00
