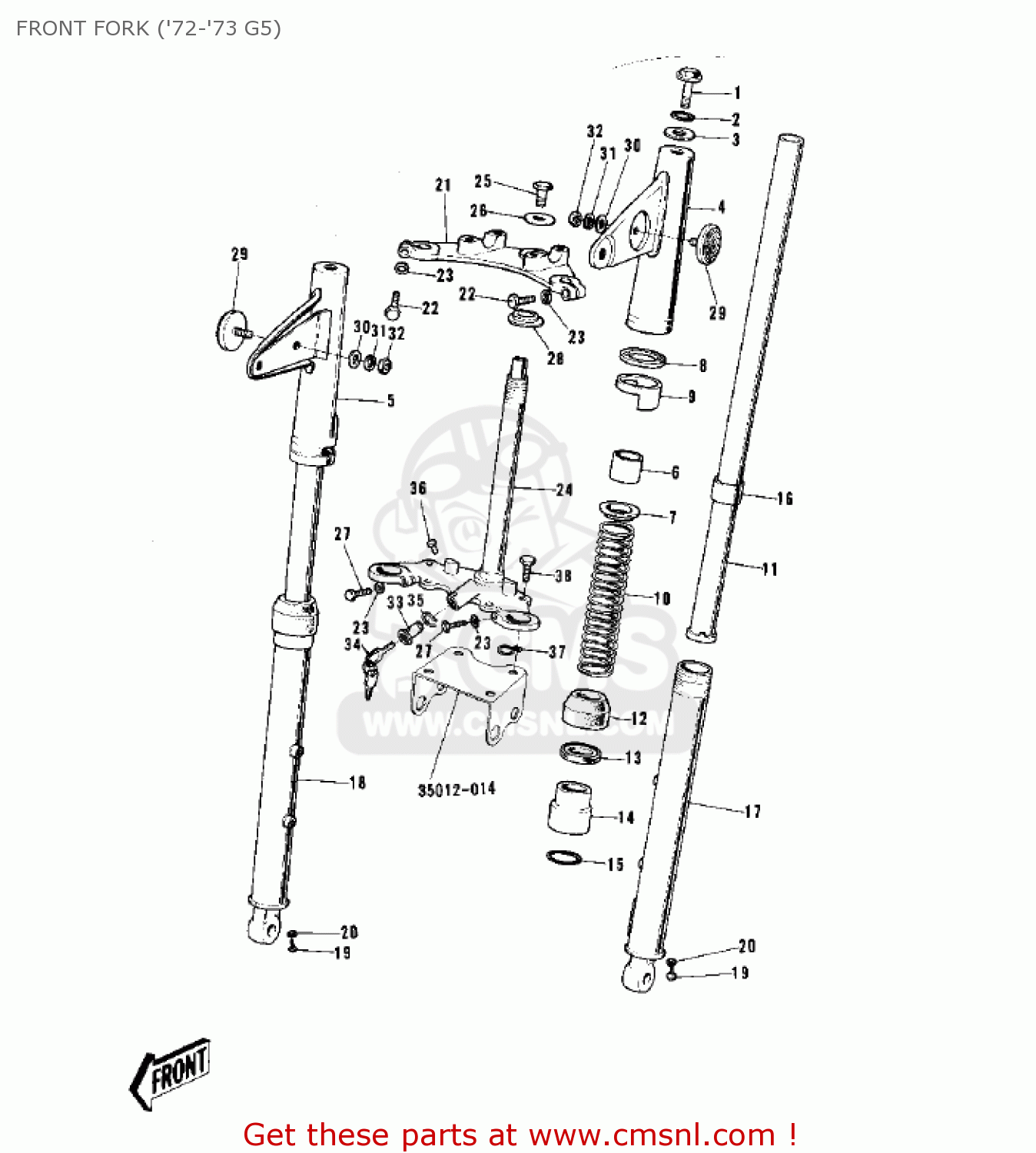

FRONT FORK ('72-'73 G5)

ref

part #

description

quantity

?

4400107921
ref: ?
Includes items 1 - 2

FRONT FORK ASSEMBLY,FLAT BLACK

€ 582.00

?

4400109121
ref: ?
Includes items 1 - 2

FRONT FORK,FLAT BLACK

€ 1,140.50

1

44041036
ref: 1

BOLT-FORK TOP

€ 9.50

2

44046013
ref: 2

'O'RING,FORK FIT BOLT

€ 3.50

3

44043035
ref: 3

FORK COVER WASHER

€ 17.00

4

4403304421
ref: 4

FORK COVER,LH,FLAT BLACK

€ 81.50

5

4403404321
ref: 5

FORK COVER,RH,FLAT BLACK

€ 86.00

6

44028024
ref: 6

FORK SPRING,GUIDE SPACER

€ 7.50

7

44029020
ref: 7

FORK SPRING,GUIDE

€ 7.50

8

44045012
ref: 8

GASKET,FORK COVER (NAS)

€ 3.00

9

44064003
ref: 9

FORK COVER GUIDE

€ 22.00

10

44026039
ref: 10

FORK SPRING

€ 39.00

11

44013033
ref: 11

FORK INNER TUBE

€ 246.50

12

44010006
ref: 12

SEAL,FORK

€ 24.00

13

920491049
ref: 13

SEAL-OIL

€ 14.50

14

44007007
ref: 14

NUT-FORK OUTER TUBE

€ 41.50

15

44046012
ref: 15

RING-O,OUTER PIPE

€ 4.00

16

44015012
ref: 16

FORK INNER TUBE GUIDE

€ 22.00

17

44005042
ref: 17

FORK OUTER TUBE,LH

€ 108.00

18

44006040
ref: 18

FORK OUTER TUBE,RH

€ 121.50

19

220B0408
ref: 19

SCREW-PAN-CROS

€ 0.50

20

44045002
ref: 20

GASKET,FORK DRAIN PLU (NAS)

€ 3.00

21

44039041
ref: 21

STEERING STEM HEAD

€ 170.50

22

44041039
ref: 22

BOLT,HEX HEAD,10MM

€ 12.00

23

461F1000
ref: 23

WASHER-SPRING,10MM

€ 0.50

24

44037044
ref: 24

STEERING STEM

€ 267.50

25

44041007
ref: 25

BOLT-STRNG STEM HEAD

€ 11.50

26

44043016
ref: 26

WASHER,FORK UPPER HOL

€ 7.00

27

44041010
ref: 27

BOLT-PINCH

€ 5.00

28

92047004
ref: 28

CONE-LOWER BEARING

€ 13.00

29

28001011
ref: 29

REFLECTOR-REFLEX,FRNT

€ 14.50

30

411B0500
ref: 30

WASHER-PLAIN,5MM

€ 0.50

31

461F0500
ref: 31

WASHER-SPRING,5MM

€ 0.50

32

311B0500
ref: 32

NUT-HEX

€ 0.50

?

27016026
ref: ?
Includes items 33 an

STEERING LOCK ASSEMBLY,OPTIONAL

€ 28.50

34

2700804270
ref: 34
OPTION

KEY SET,170

€ 5.50

34

2700804271
ref: 34
OPTION

KEY SET,171

€ 8.00

34

2700804272
ref: 34
OPTION

KEY SET,172

€ 5.50

34

2700804273
ref: 34
OPTION

KEY SET,173

€ 7.50

34

2700804274
ref: 34
OPTION

KEY SET,174

€ 8.00

35

92033024
ref: 35
OPTION

CIRCLIP-STEERING LOCK

€ 6.50

36

92099001
ref: 36
OPTION

SCREW RIVET

€ 2.50

37

92037046
ref: 37

CLAMP,CABLE

€ 3.00

38

112G0610
ref: 38

BOLT,6X10

€ 0.50

38

112G0610
ref: 38

BOLT,6X10

€ 0.50

all assemblies
