Genuine unknown Kawasaki Parts delivered quickly!
home
CRANKSHAFT/PISTON/ROTARY VALVE (
G5A 1973 CANADA

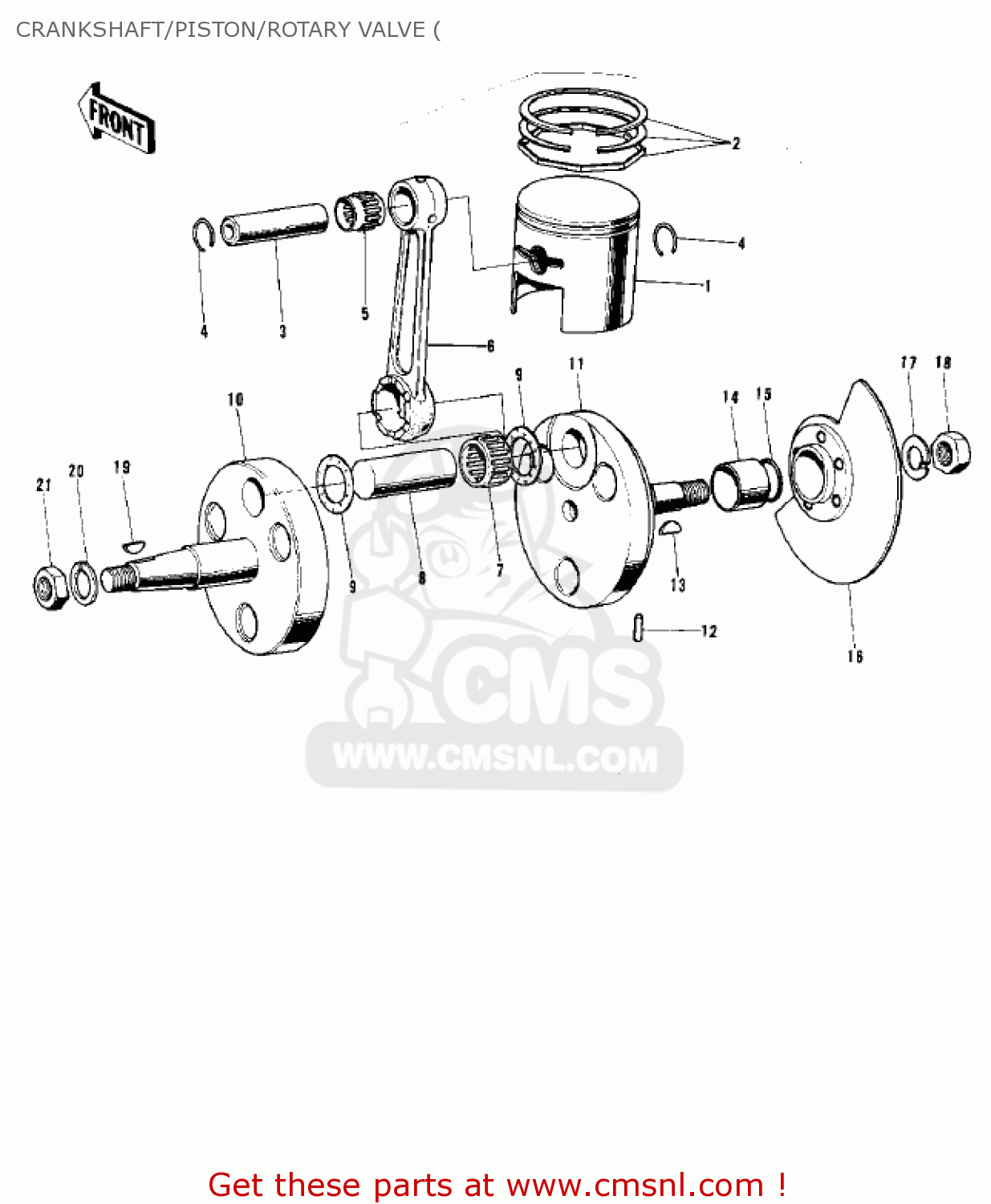

Crankshaft/piston/rotary valve ( diagram G5A 1973 CANADA
CRANKSHAFT/PISTON/ROTARY VALVE ( G5A 1973 CANADA
×
prices are in EUR
ref
part #
description
quantity
1
13001037
ref: 1
PISTON,STD
€ 30.50
2
13008035
ref: 2
RING SET,STD
€ 48.00
3
13002007
ref: 3
PIN
€ 13.00
4
92036007
ref: 4
CIRCLIP-PISTON PIN
€ 2.50
5
13033028
ref: 5
KBK12:615.4X
BEARING-NEEDLE,72KTV0
€ 13.50
?
13044019
ref: ?
Includes items 6 - 9
CONNECTING ROD SET
€ 317.50
?
13036034
ref: ?
Includes items 6 - 1
CRANK&CONROD ASSY
€ 317.50
7
13034025
ref: 7
BRG-PK192611.8X
€ 27.50
8
13035025
ref: 8
PIN-CRANK
€ 19.00
9
92025047
ref: 9
SHIM,T=1.0
€ 7.50
10
13037044
ref: 10
CRANKSHAFT,L.H
€ 317.50
11
13038040
ref: 11
CRANKSHAFT,R.H
€ 317.50
12
610A0410
ref: 12
ROLLER,4X10
€ 2.50
13
92038003
ref: 13
WOODRUFF KEY-PRY PINI
€ 1.50
14
92027022
ref: 14
COLLAR-CRANKSHAFT
€ 7.00
15
670B2016
ref: 15
O RING,16MM
€ 1.00
16
12001004
ref: 16
VALVE-ROTARY DISC
€ 64.50
17
92024003
ref: 17
WASHER,CLAW,12.5X25X0
€ 2.50
18
92015006
ref: 18
NUT,12MM
€ 3.50
19
510A3200
ref: 19
KEY-WOODRUFF
€ 1.50
20
461F1000
ref: 20
WASHER-SPRING,10MM
€ 0.50
21
314B1000
ref: 21
NUT,10MM
€ 0.50
