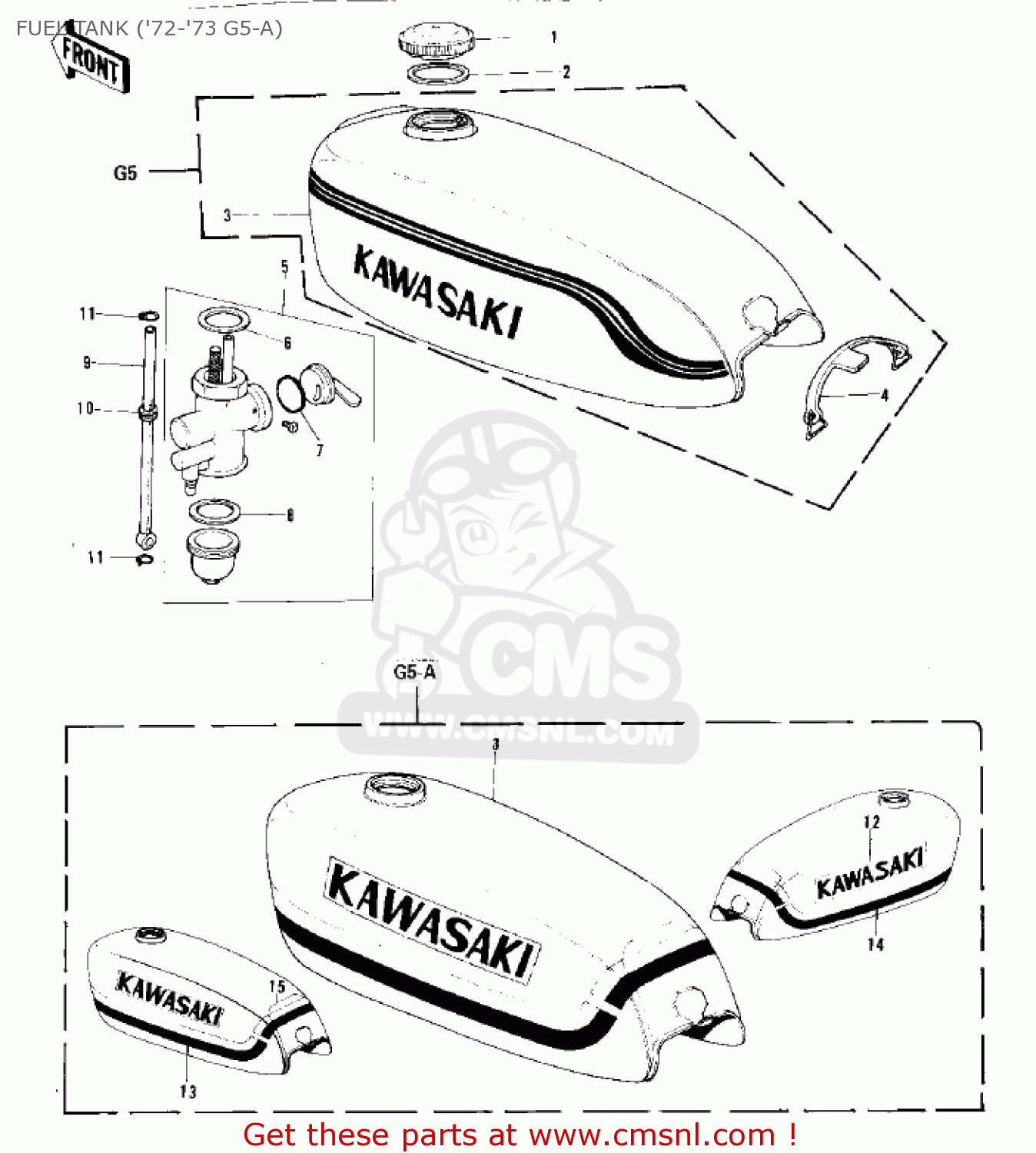

FUEL TANK ('72-'73 G5-A)

G5A 1973 CANADA

Fuel tank ('72-'73 g5-a) diagram G5A 1973 CANADA

FUEL TANK ('72-'73 G5-A) G5A 1973 CANADA

FUEL TANK ('72-'73 G5-A) G5A 1973 CANADA

prices are in EUR

ref

part #

description

quantity

1

51048006
ref: 1

CAP-ASSY-TANK,FUEL

€ 67.00

2

51059003
ref: 2

GASKET-FUEL TANK CAP (NAS)

€ 4.00

2

5100107574
ref: 2
G5

FUEL TANK,YELLOW

€ 896.50

?

5100107586
ref: ?
Includes items 3 - 1

FUEL TANK,ORANGE

€ 896.50

?

5100107593
ref: ?
Includes items 3 - 1

FUEL TANK,CANDYTONE BLUE

€ 896.50

4

92072029
ref: 4

BAND-FUEL TANK

€ 7.00

5

510231123
ref: 5

TAP-ASSY,FUEL

€ 44.00

6

110091567
ref: 6

GASKET,FUEL TAP JOINT

€ 4.00

7

92065062
ref: 7

GASKET,FUEL TAP LEVER

€ 3.50

8

51037008
ref: 8

GASKET,FUEL COCK CUP (NAS)

€ 2.50

9

51044031
ref: 9

FUEL PIPE

€ 31.50

10

92071038
ref: 10

GROMMET,PIPE

€ 2.50

11

92037010
ref: 11

CLAMP-FUEL PIPE

€ 2.50

12

56013049
ref: 12
G5-A

DECAL-FUEL TANK

€ 2.50

13

56027108
ref: 13
G5-A

FUEL TANK DECAL STRIPE,LH

€ 18.50

14

56027109
ref: 14
G5-A

FUEL TANK DECAL STRIPE,RH

€ 18.50

15

56027110
ref: 15
G5-A

FUEL TANK DECAL STRIPE,TOP

€ 18.50
