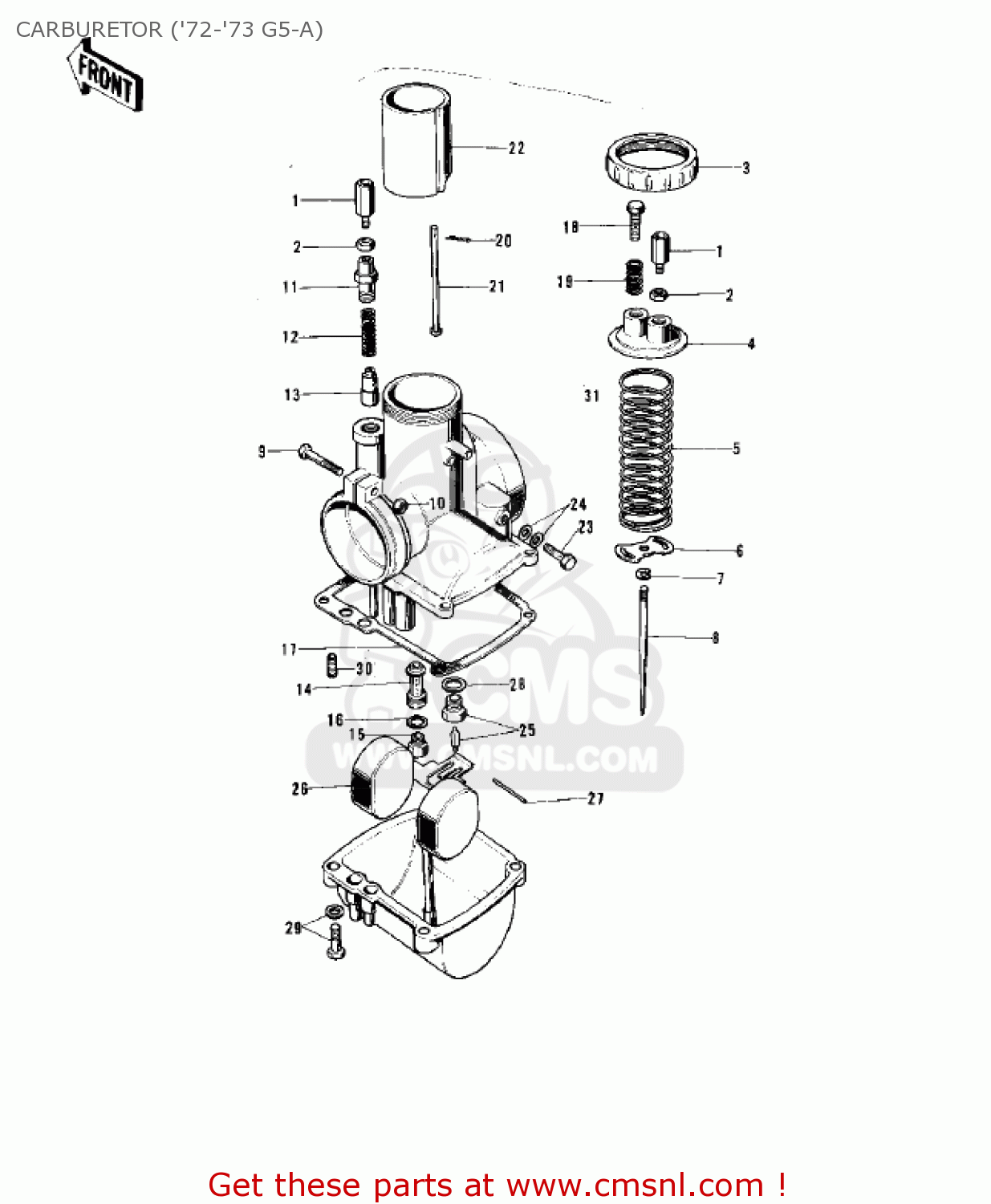

CARBURETOR ('72-'73 G5-A)

ref

part #

description

quantity

?

16001142
ref: ?
Includes items 1 - 2

CARBURETOR ASSEMBLY

€ 267.50

1

16002002
ref: 1

ADJUSTER-CABLE,STARTE

€ 8.00

2

16003004
ref: 2

NUT-CABLE ADJUST LOCK

€ 4.50

3

16004010
ref: 3

CAP-CHAMBER,MIXING

€ 13.50

4

16005005
ref: 4

TOP-CHAMBER,MIXING

€ 12.50

5

16006013
ref: 5

SPRING-THROTTLE VALVE

€ 10.00

6

16007002
ref: 6

SEAT-SPRING,THROTTLE

€ 8.50

7

16008010
ref: 7

CLAMP,E-TYPE

€ 5.00

8

16009026
ref: 8

JET,NEEDLE,#5J-7

€ 64.00

9

16010004
ref: 9

SCREW-CLAMP

€ 3.50

10

311B0600
ref: 10

NUT,6MM

€ 0.50

11

16012004
ref: 11

CAP-STARTER PLUNGER

€ 7.50

12

16013003
ref: 12

SPRING-STARTER PLUNG

€ 4.00

13

16016002
ref: 13

PLUNGER,STARTER

€ 20.00

14

16017056
ref: 14

JET,NEEDLE,#E-4

€ 83.00

15

920631028
ref: 15
STD

JET-MAIN,#A102.5R

€ 10.00

15

920631042
ref: 15
OPTION

JET-MAIN,#A105R

€ 10.50

16

16034001
ref: 16

WASHER-MAIN JET

€ 2.50

17

16019012
ref: 17

GASKET-FLOAT CHAMBER (NAS)

€ 13.00

18

16021002
ref: 18

SCREW-THROTTLE STOP

€ 12.00

19

16022005
ref: 19

SPRING-THR STOP SCREW

€ 5.50

20

550D1210
ref: 20

PIN-COTTER,1.2X10

€ 1.50

21

16024012
ref: 21

ROD,THROTTLE VALVE ST

€ 5.50

22

16025054
ref: 22

VALVE-THROTTLE,CA2.5

€ 67.00

23

92001014
ref: 23

BOLT-BANJO

€ 11.50

24

751P0800
ref: 24

GASKET,8MM

€ 1.00

25

16030001
ref: 25

VALVE-FLOAT,#2.0

€ 40.50

26

16031015
ref: 26

FLOAT

€ 40.50

27

16032003
ref: 27

FLOAT PIN

€ 4.00

28

16029002
ref: 28

WASHER-VALVE SEAT

€ 2.50

29

16033012
ref: 29

SCREW-FLOAT CHAMBER

€ 1.00

30

92064020
ref: 30

JET-PILOT,#17.5

€ 13.50

31

92061019
ref: 31

CONNECTOR,BANJO

€ 9.50
