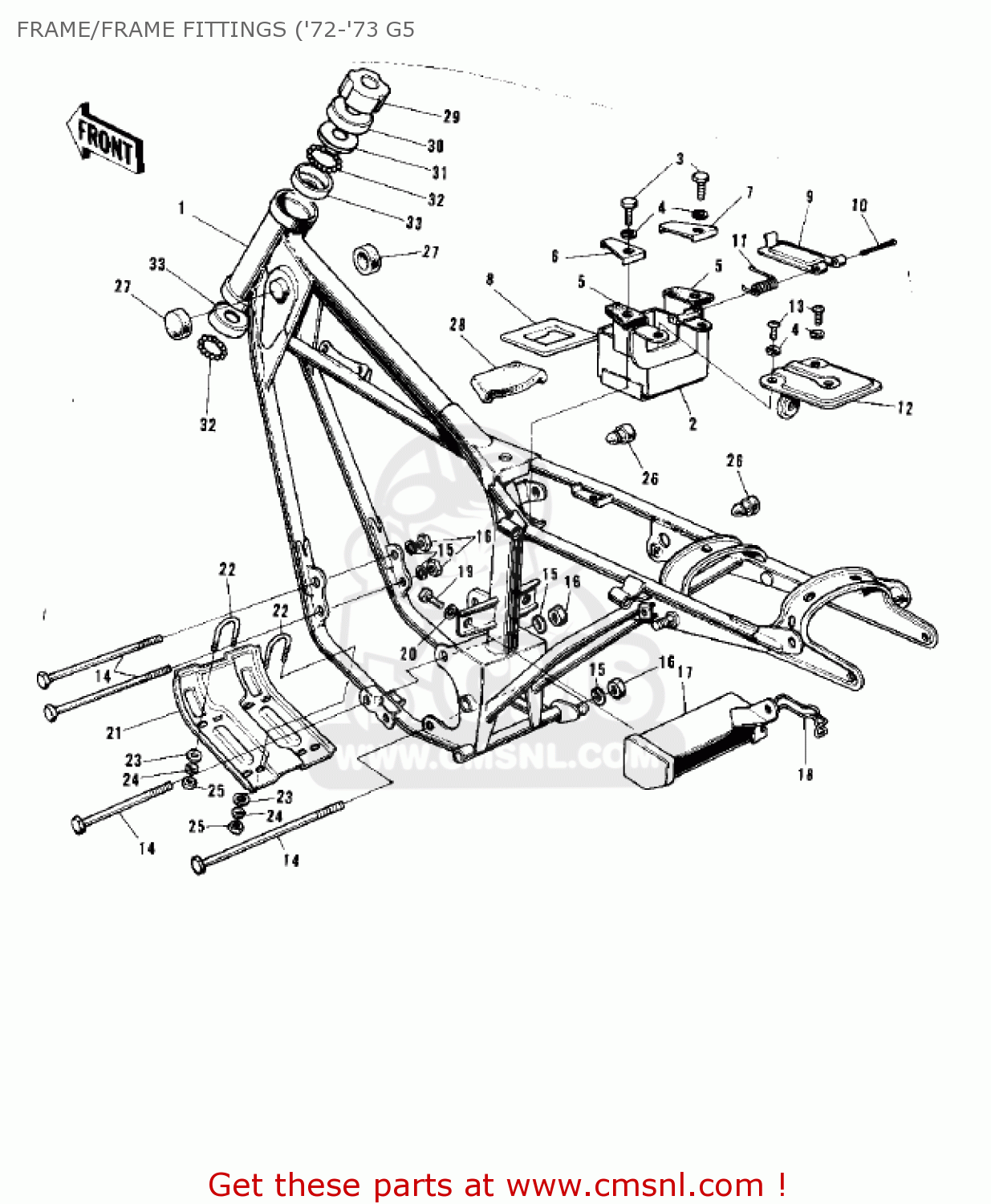

FRAME/FRAME FITTINGS ('72-'73 G5

ref

part #

description

quantity

1

32002050
ref: 1

FRAME

€ 449.00

2

32097021
ref: 2

BATTERY CASE

€ 67.50

3

112G0618
ref: 3

BOLT-UPSET

€ 0.50

4

461F0600
ref: 4

WASHER-SPRING,6MM

€ 0.50

5

92075108
ref: 5

DAMPER

€ 3.00

6

32101003
ref: 6

PLATE

€ 3.00

7

32101004
ref: 7

PLATE

€ 3.00

8

32103024
ref: 8

DAMPER,BATTERY

€ 4.50

9

92072037
ref: 9

BAND-BATTERY

€ 2.50

10

550D2535
ref: 10

PIN-COTTER,2.5X35

€ 1.50

11

92083017
ref: 11

SPRING-RETURN

€ 1.50

12

32064007
ref: 12

TURN SIGNAL RELAY BRACKET

€ 9.50

13

220B0610
ref: 13

SCREW-PAN HEAD,6X10

€ 2.00

14

920011603
ref: 14

BOLT,FLANGED,10X115

€ 7.00

15

461F1000
ref: 15

WASHER-SPRING,10MM

€ 0.50

16

314B1000
ref: 16

NUT,10MM

€ 0.50

17

32098018
ref: 17

CASE-TOOL

€ 51.00

18

92079002
ref: 18

CLAMP,TOOL CASE

€ 8.00

19

112B0614
ref: 19

BOLT-UPSET 6X14

€ 2.50

20

411B0600
ref: 20

WASHER-PLAIN,6MM

€ 0.50

21

55011014
ref: 21

ENGINE GUARD

€ 33.50

22

92096001
ref: 22

BOLT,ENGINE GUARD

€ 4.50

23

410B0600
ref: 23

WASHER-PLAIN-SMALL,6M

€ 0.50

24

461F0600
ref: 24

WASHER-SPRING,6MM

€ 0.50

25

311B0600
ref: 25

NUT,6MM

€ 0.50

26

92071056
ref: 26

GROMMET

€ 2.50

27

92075101
ref: 27

DAMPER RUBBER-FL TANK

€ 4.00

28

92075106
ref: 28

DAMPER,FUEL TANK

€ 10.00

29

92090006
ref: 29

NUT-STEERING STEM LCK

€ 10.50

30

46098004
ref: 30

CAP-STEERING STEM

€ 4.00

31

92047005
ref: 31

CONE-UPPER BEARING

€ 10.50

32

600A0600
ref: 32

BALL-STEEL,3/16

€ 0.50

33

92048004
ref: 33

RACE-BEARING

€ 10.00
