Genuine unknown Kawasaki Parts delivered quickly!
home
SEAT/CARRIER ('74-'75)
G4TRD 1974 USA

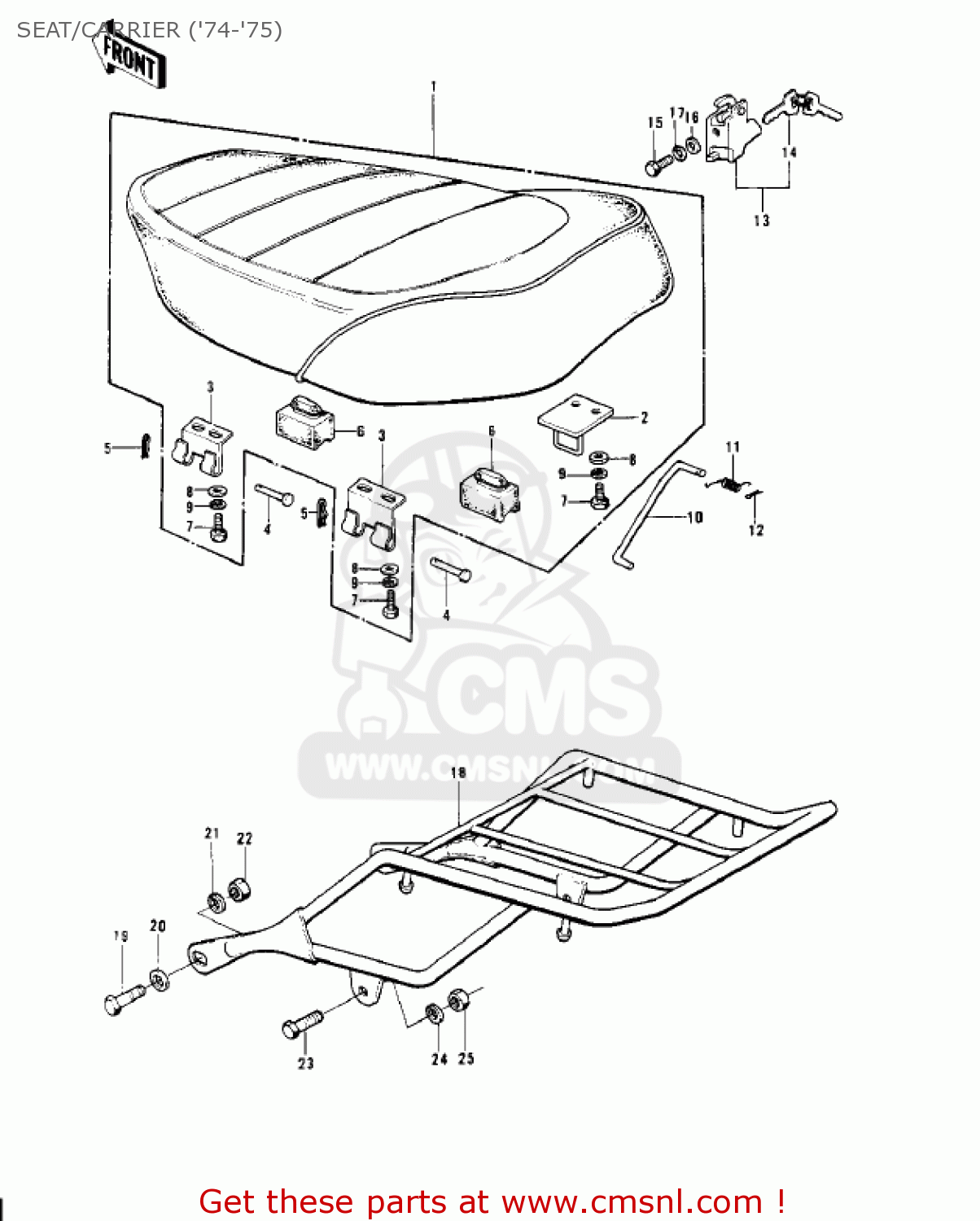

Seat/carrier ('74-'75) diagram G4TRD 1974 USA
SEAT/CARRIER ('74-'75) G4TRD 1974 USA
×
prices are in EUR
ref
part #
description
quantity
1
53002052
ref: 1
G4TR-D/E
SEAT ASSEMBLY,DUAL
€ 375.50
1
530021017
ref: 1
KV100-A7
SEAT ASSEMBLY,DUAL
€ 221.50
2
53008020
ref: 2
SEAT HOOK
€ 9.50
3
53009018
ref: 3
HINGE,SEAT
€ 6.50
4
53011002
ref: 4
PIN,6X48
€ 3.50
5
92041003
ref: 5
COTTER
€ 0.50
6
92075216
ref: 6
DAMPER,SEAT
€ 3.00
7
112B0614
ref: 7
BOLT-UPSET 6X14
€ 2.50
8
411B0600
ref: 8
WASHER-PLAIN,6MM
€ 0.50
9
461F0600
ref: 9
WASHER-SPRING,6MM
€ 0.50
10
53054003
ref: 10
STAY,SEAT
€ 6.50
11
53055001
ref: 11
SPRING-SEAT HOOK
€ 8.50
12
550D2015
ref: 12
PIN-COTTER,2.0X15
€ 1.00
13
53045014
ref: 13
HOOK-ASSY,SEAT
€ 52.00
14
2700806301
ref: 14
KEY SET,#401
€ 19.00
14
2700806310
ref: 14
KEY SET,#410
€ 14.50
15
112G0612
ref: 15
BOLT-UPSET
€ 2.50
16
411B0600
ref: 16
WASHER-PLAIN,6MM
€ 0.50
17
461F0600
ref: 17
WASHER-SPRING,6MM
€ 0.50
18
53029050
ref: 18
LUGGAGE CARRIER
€ 264.50
19
113N1035
ref: 19
BOLT-HEX HEAD,10X35
€ 6.00
20
411B1000
ref: 20
WASHER-PLAIN,10MM
€ 0.50
21
461F1000
ref: 21
WASHER-SPRING,10MM
€ 0.50
22
315B1000
ref: 22
NUT,10MM
€ 0.50
23
114N0832
ref: 23
BOLT-SMALL,8X32
€ 3.00
24
461F0800
ref: 24
WASHER-SPRING,8MM
€ 0.50
25
311B0800
ref: 25
NUT,8MM
€ 0.50
