HEADLIGHT KV100-A7 ('74-'75)
G4TRD 1974 USA

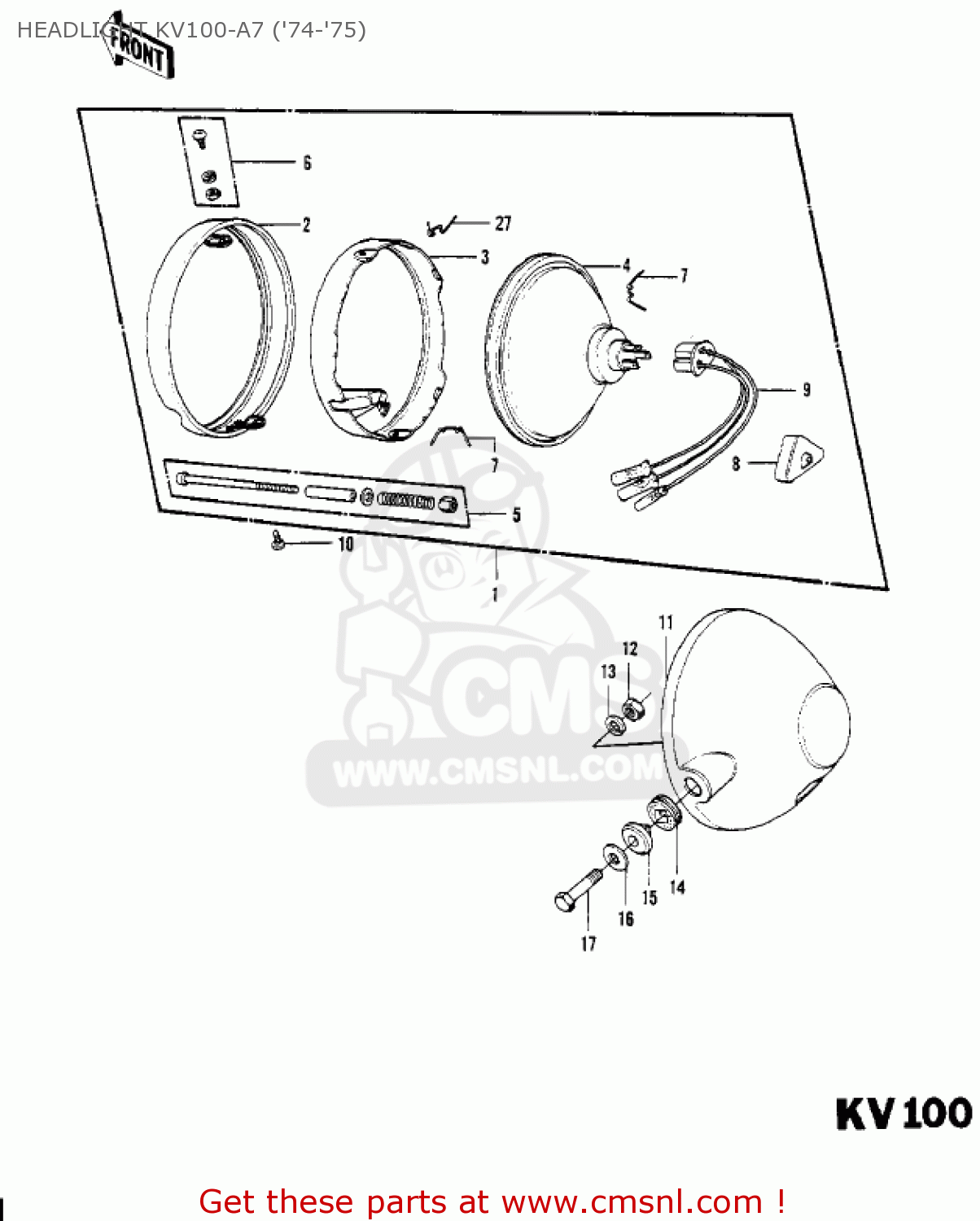

Headlight kv100-a7 ('74-'75) diagram G4TRD 1974 USA
HEADLIGHT KV100-A7 ('74-'75) G4TRD 1974 USA
×
prices are in EUR
ref
part #
description
quantity
1
23003024
ref: 1
LAMP UNIT,HEAD
€ 90.50
2
23006042
ref: 2
RIM,HEAD LAMP
€ 43.00
3
23072002
ref: 3
RETAINER,SEALED BEAM
€ 29.50
4
23007055
ref: 4
LENS-COMP,4020 MARK
€ 60.00
5
230135001
ref: 5
SCREW ASSY,FOCUS AJST
€ 10.50
6
23013007
ref: 6
SCREW ASY,LENS UNIT
€ 3.50
7
23009015
ref: 7
SPRING,HEAD LAMP LENS
€ 3.50
8
23081001
ref: 8
COVER,HD LAMP SOCKET
€ 6.50
9
23008044
ref: 9
SOCKET-ASSY,HEAD LAMP
€ 15.00
10
23019025
ref: 10
SCREW,PAN HEAD,5X14
€ 1.50
11
2300504921
ref: 11
BODY,HEAD LAMP,BLACK
€ 56.00
12
314B1000
ref: 12
NUT,10MM
€ 0.50
13
461F1000
ref: 13
WASHER-SPRING,10MM
€ 0.50
14
23066011
ref: 14
DAMPER
€ 3.50
15
23052005
ref: 15
COLLAR,L=9.6
€ 8.50
16
411D1000
ref: 16
WASHER-PLAIN,10MM
€ 3.00
17
92007041
ref: 17
BOLT,HEX HEAD,10X30
€ 7.00
