FENDERS G4TR-B/C ('70-'73)
G4TRD 1974 USA

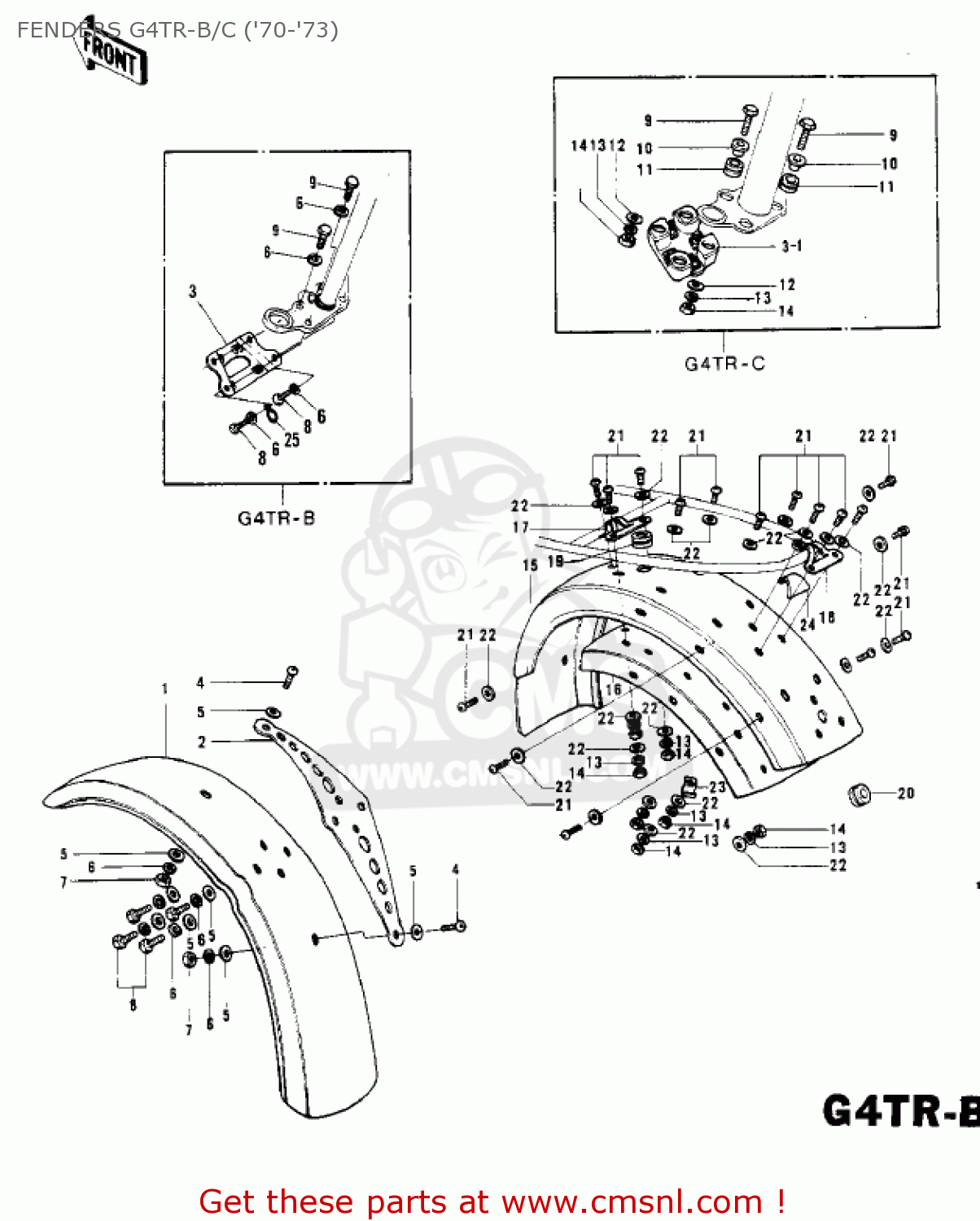

Fenders g4tr-b/c ('70-'73) diagram G4TRD 1974 USA
FENDERS G4TR-B/C ('70-'73) G4TRD 1974 USA
×
prices are in EUR
ref
part #
description
quantity
1
35004069
ref: 1
G4TR-B
FRONT FENDER
€ 257.50
1
35004070
ref: 1
G4TR-C
FRONT FENDER
€ 179.50
2
35013003
ref: 2
G4TR-B
PLATE-FRONT FENDER
€ 6.50
2
35013011
ref: 2
G4TR-C
FRONT FENDER PLATE
€ 23.50
3
35012010
ref: 3
G4TR-B
FRONT FENDER BRACKET
€ 18.50
3-1
35012017
ref: 3-1
G4TR-C
FRONT FENDER BRACKET
€ 23.50
4
220E0610
ref: 4
SCREW-PAN HEAD,6X10
€ 2.50
5
411B0600
ref: 5
WASHER-PLAIN,6MM
€ 0.50
6
461F0600
ref: 6
WASHER-SPRING,6MM
€ 0.50
7
312B0600
ref: 7
NUT,6MM
€ 0.50
8
112G0612
ref: 8
G4TR-B
BOLT-UPSET
€ 2.50
8
112G0612
ref: 8
G4TR-C
BOLT-UPSET
€ 2.50
9
112B0622
ref: 9
G4TR-B
BOLT, 6X22
€ 2.50
9
112G0630
ref: 9
BOLT-UPSET
€ 1.00
10
92027153
ref: 10
G4TR-C
COLLAR
€ 4.00
11
92075051
ref: 11
G4TR-C
DAMPER RUBBER
€ 2.50
12
92022125
ref: 12
WASHER,6.5X20X1.6
€ 1.00
13
461F0600
ref: 13
WASHER-SPRING,6MM
€ 0.50
14
311B0600
ref: 14
G4TR-B
NUT,6MM
€ 0.50
14
311B0600
ref: 14
G4TR-C
NUT,6MM
€ 0.50
15
35022070
ref: 15
G4TR-B
REAR FENDER
€ 151.50
15
35022073
ref: 15
G4TR-C
REAR FENDER
€ 228.00
16
35034015
ref: 16
G4TR-B
REAR FENDER GUSSET
€ 59.50
16
35034018
ref: 16
G4TR-C
REAR FENDER GUSSET
€ 56.50
17
35025016
ref: 17
REAR FENDER BRACKET
€ 9.50
18
35025017
ref: 18
REAR FENDER BRACKET
€ 12.00
19
92071010
ref: 19
GROMMET,HARNESS
€ 2.00
20
92071019
ref: 20
GROMMET,10MM
€ 2.50
21
220B0614
ref: 21
SCREW-PAN HEAD,6X14
€ 2.00
22
411B0600
ref: 22
WASHER-PLAIN,6MM
€ 0.50
23
35024002
ref: 23
CLAMP,WIRING HARNESS
€ 2.00
24
32103015
ref: 24
REAR FENDER SUPPORT,RUBBER
€ 3.00
25
92037046
ref: 25
G4TR-B
CLAMP,CABLE
€ 3.00
