ENGINE COVERS G4TR/A ('70-'73)
G4TRD 1974 USA

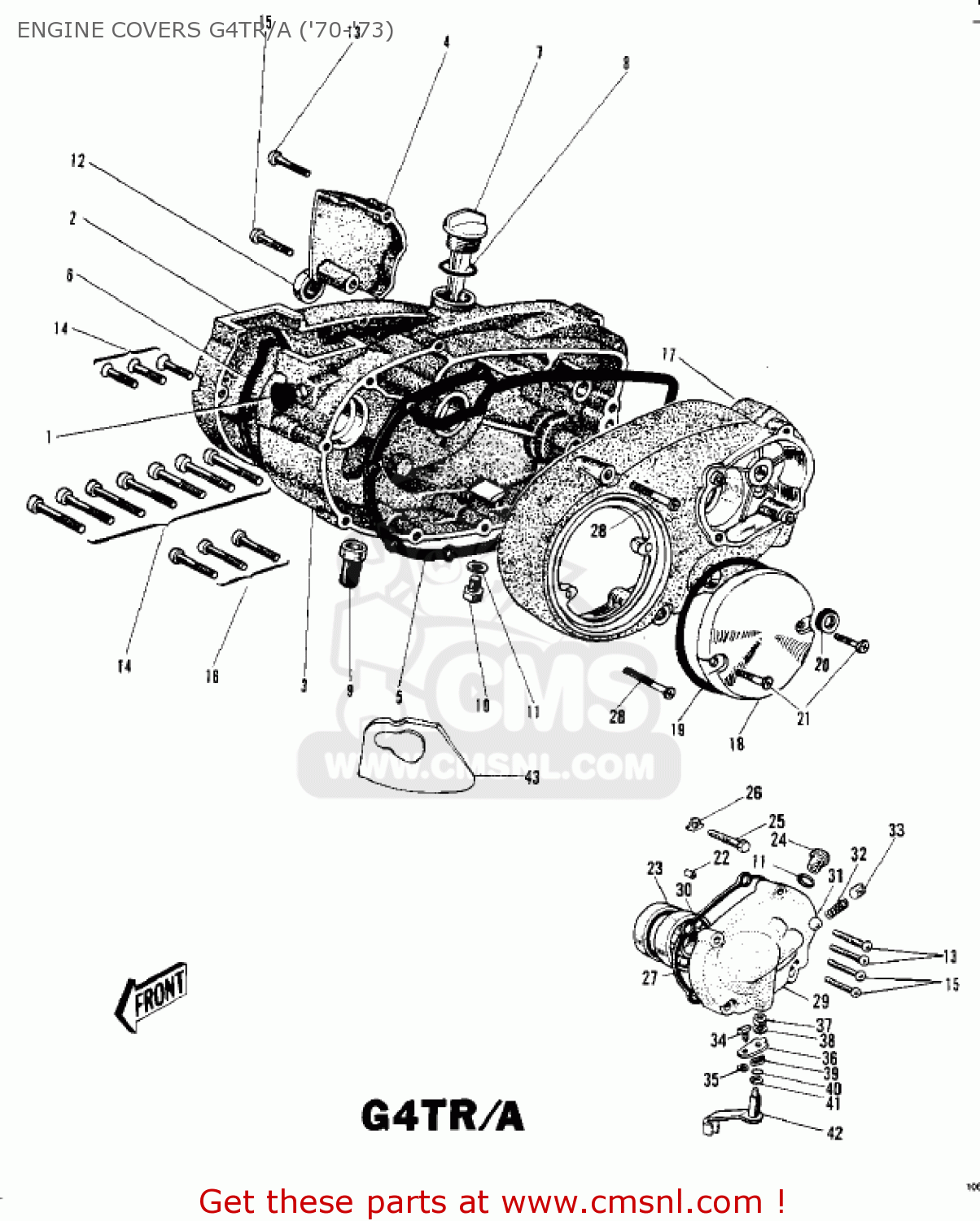

Engine covers g4tr/a ('70-'73) diagram G4TRD 1974 USA
ENGINE COVERS G4TR/A ('70-'73) G4TRD 1974 USA
×
prices are in EUR
ref
part #
description
quantity
1
14039001
ref: 1
CAP,RUBBER
€ 3.00
2
14030005
ref: 2
COVER-CARBURETOR
€ 17.00
3
14032049
ref: 3
COVER-R.H ENGINE
€ 67.00
4
14030006
ref: 4
COVER-OIL PUMP
€ 15.00
5
110601198
ref: 5
GASKET,CLUTCH COVER (NAS)
€ 17.00
6
14048001
ref: 6
GASKET-CARB COVER (MCA)
€ 16.00
7
16115018
ref: 7
PLUG,OIL FILLER
€ 7.00
7
16115018
ref: 7
PLUG,OIL FILLER
€ 7.00
8
92055026
ref: 8
'O' RING-OIL FIL PLUG
€ 1.50
9
16116002
ref: 9
DRAIN-FUEL
€ 9.00
10
92067001
ref: 10
PLUG-OIL DRAIN
€ 3.00
11
92065058
ref: 11
GASKET, 10,5X16X1 (NAS)
€ 2.50
12
653B142507
ref: 12
OIL SEAL,TB14257
€ 14.50
13
220B0625
ref: 13
SCREW-PAN HEAD,6X25
€ 1.50
14
220B0630
ref: 14
SCREW-PAN HEAD,6X30
€ 2.50
15
220B0635
ref: 15
SCREW-PAN HEAD,6X35
€ 1.00
16
220B0645
ref: 16
SCREW-PAN HEAD,6X45
€ 2.50
17
14031036
ref: 17
ENGINE COVER,LH
€ 198.50
18
1402700779
ref: 18
COVER-BRK POINT,CR
€ 16.00
19
14050002
ref: 19
GASKET-BREAKER COVER (MCA)
€ 9.50
20
920491249
ref: 20
SEAL-OIL
€ 6.50
21
220B0612
ref: 21
SCREW-PAN HEAD,6X12
€ 1.00
22
920431037
ref: 22
PIN,DOWEL,10X8.2X14
€ 0.50
23
92050012
ref: 23
OIL SEAL,SC38556
€ 36.00
24
16115010
ref: 24
OIL FILLER PLUG
€ 12.00
25
112G0645
ref: 25
BOLT-UPSET
€ 0.50
26
92024019
ref: 26
WASHER-LOCK,6MM
€ 0.50
27
14051001
ref: 27
ENGINE COVER CAP GASKET,LH
€ 9.50
28
220B0665
ref: 28
SCREW-PAN HEAD,6X65
€ 2.50
29
14075002
ref: 29
INCLUDES REF
CAP ASSY-L.H ENG COV
€ 66.50
30
601B6005
ref: 30
BEARING-BALL,#6005C3
€ 11.50
31
600A0800
ref: 31
BALL-STEEL,1/4
€ 0.50
32
92081075
ref: 32
SPRING
€ 11.00
33
92066015
ref: 33
ENGINE COVER CAP PLUG,LH
€ 11.00
34
13197001
ref: 34
RETAINER SHIFT ROD
€ 23.50
35
482K4000
ref: 35
CIRCLIP-TYPE-E,4MM
€ 0.50
36
13204002A
ref: 36
LEVER,A
€ 30.00
37
312B0600
ref: 37
NUT,6MM
€ 0.50
38
461F0600
ref: 38
WASHER-SPRING,6MM
€ 0.50
39
13211001
ref: 39
WASHER,WAVE
€ 8.00
40
670B1508
ref: 40
O RING,8MM
€ 1.00
41
410B0800
ref: 41
WASHER-PLAIN-SMALL,8M
€ 0.50
42
13234001
ref: 42
LEVER SHIFT
€ 23.00
43
13123003
ref: 43
TENSIONER-CHAIN
€ 2.50
1
14039001
ref: 1
CAP,RUBBER
€ 3.00
2
14030005
ref: 2
COVER-CARBURETOR
€ 17.00
3
14032049
ref: 3
COVER-R.H ENGINE
€ 67.00
4
14030006
ref: 4
COVER-OIL PUMP
€ 15.00
5
110601198
ref: 5
GASKET,CLUTCH COVER (NAS)
€ 17.00
6
14048001
ref: 6
GASKET-CARB COVER (MCA)
€ 16.00
7
16115018
ref: 7
PLUG,OIL FILLER
€ 7.00
7
16115018
ref: 7
PLUG,OIL FILLER
€ 7.00
8
92055026
ref: 8
'O' RING-OIL FIL PLUG
€ 1.50
9
16116002
ref: 9
DRAIN-FUEL
€ 9.00
10
92067001
ref: 10
PLUG-OIL DRAIN
€ 3.00
11
92065058
ref: 11
GASKET, 10,5X16X1 (NAS)
€ 2.50
12
653B142507
ref: 12
OIL SEAL,TB14257
€ 14.50
13
220B0625
ref: 13
SCREW-PAN HEAD,6X25
€ 1.50
14
220B0630
ref: 14
SCREW-PAN HEAD,6X30
€ 2.50
15
220B0635
ref: 15
SCREW-PAN HEAD,6X35
€ 1.00
16
220B0645
ref: 16
SCREW-PAN HEAD,6X45
€ 2.50
17
14031036
ref: 17
ENGINE COVER,LH
€ 198.50
18
1402700779
ref: 18
COVER-BRK POINT,CR
€ 16.00
19
14050002
ref: 19
GASKET-BREAKER COVER (MCA)
€ 9.50
20
920491249
ref: 20
SEAL-OIL
€ 6.50
21
220B0612
ref: 21
SCREW-PAN HEAD,6X12
€ 1.00
22
920431037
ref: 22
PIN,DOWEL,10X8.2X14
€ 0.50
23
92050012
ref: 23
OIL SEAL,SC38556
€ 36.00
24
16115010
ref: 24
OIL FILLER PLUG
€ 12.00
25
112G0645
ref: 25
BOLT-UPSET
€ 0.50
26
92024019
ref: 26
WASHER-LOCK,6MM
€ 0.50
27
14051001
ref: 27
ENGINE COVER CAP GASKET,LH
€ 9.50
28
220B0665
ref: 28
SCREW-PAN HEAD,6X65
€ 2.50
29
14075002
ref: 29
INCLUDES REF #'S 29-
CAP ASSY-L.H ENG COV
€ 66.50
30
601B6005
ref: 30
BEARING-BALL,#6005C3
€ 11.50
31
600A0800
ref: 31
BALL-STEEL,1/4
€ 0.50
32
92081075
ref: 32
SPRING
€ 11.00
33
92066015
ref: 33
ENGINE COVER CAP PLUG,LH
€ 11.00
34
13197001
ref: 34
RETAINER SHIFT ROD
€ 23.50
35
482K4000
ref: 35
CIRCLIP-TYPE-E,4MM
€ 0.50
36
13204002A
ref: 36
LEVER,A
€ 30.00
37
312B0600
ref: 37
NUT,6MM
€ 0.50
38
461F0600
ref: 38
WASHER-SPRING,6MM
€ 0.50
39
13211001
ref: 39
WASHER,WAVE
€ 8.00
40
670B1508
ref: 40
O RING,8MM
€ 1.00
41
410B0800
ref: 41
WASHER-PLAIN-SMALL,8M
€ 0.50
42
13234001
ref: 42
LEVER SHIFT
€ 23.00
43
13123003
ref: 43
TENSIONER-CHAIN
€ 2.50
