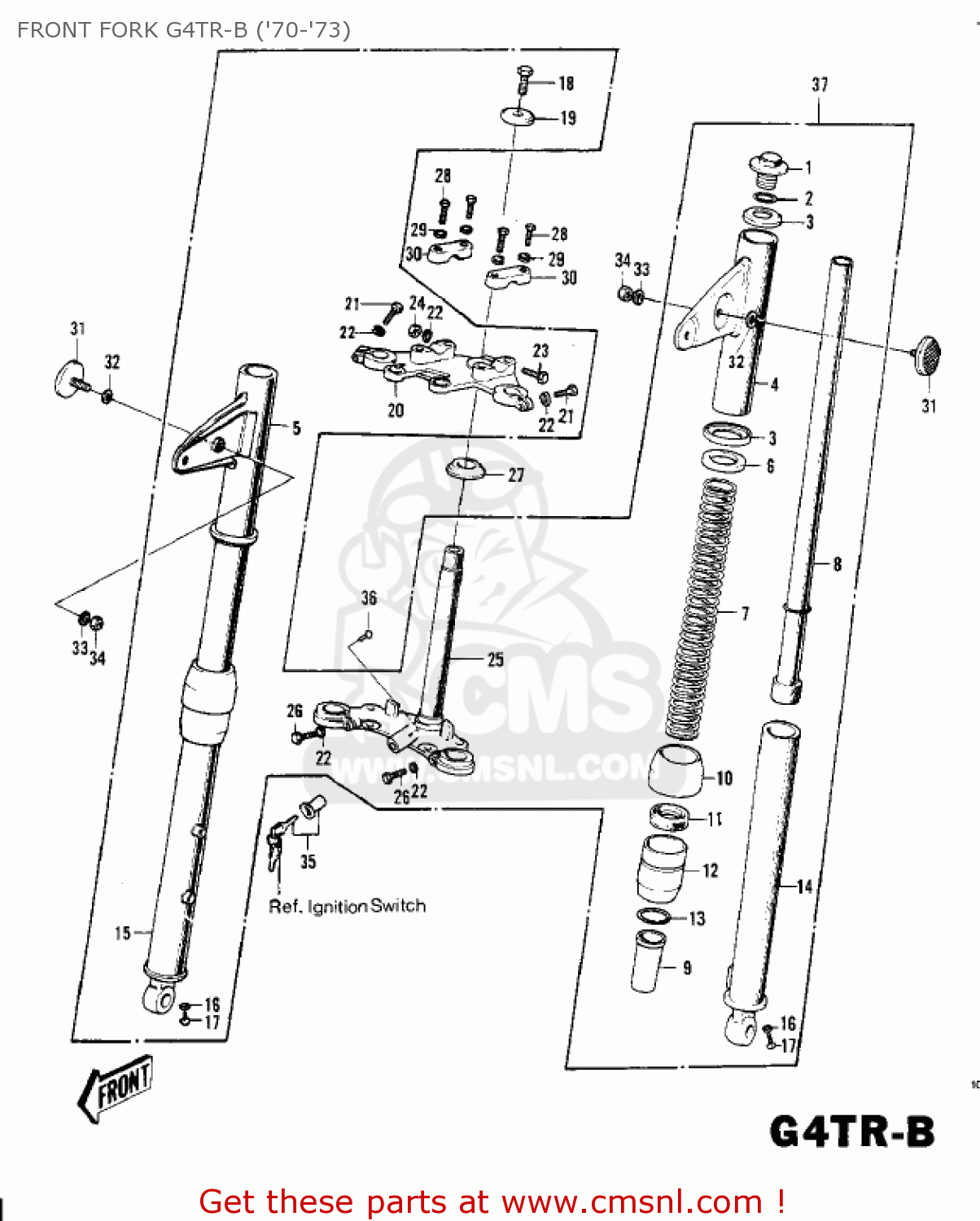

FRONT FORK G4TR-B ('70-'73)

ref

part #

description

quantity

1

44041036
ref: 1

BOLT-FORK TOP

€ 9.50

2

44046014
ref: 2

'O' RING-INNER TUBE

€ 4.00

3

44043035
ref: 3

FORK COVER WASHER

€ 17.00

4

4403304221
ref: 4

FORK COVER,LH,FLAT BLACK

€ 73.50

5

4403404121
ref: 5

COVER-R.H FORK,BLACK

€ 19.50

6

44045012
ref: 6

GASKET,FORK COVER (NAS)

€ 3.00

7

44026040
ref: 7

SPRING-FORK

€ 25.50

8

44013034
ref: 8

TUBE-FORK INNER

€ 112.50

9

44015013
ref: 9

GUIDE-FORK INNER TUBE

€ 19.50

10

44010006
ref: 10

SEAL,FORK

€ 24.00

11

920491049
ref: 11

SEAL-OIL

€ 14.50

12

44007007
ref: 12

NUT-FORK OUTER TUBE

€ 41.50

13

44046012
ref: 13

RING-O,OUTER PIPE

€ 4.00

14

44005043
ref: 14

TUBE-L,H OUTER

€ 62.00

15

44006041
ref: 15

TUBE-R,H OUTER

€ 102.00

16

44045002
ref: 16

GASKET,FORK DRAIN PLU (NAS)

€ 3.00

17

220B0408
ref: 17

SCREW-PAN-CROS

€ 0.50

18

44041007
ref: 18

BOLT-STRNG STEM HEAD

€ 11.50

19

44043016
ref: 19

WASHER,FORK UPPER HOL

€ 7.00

20

44039043
ref: 20

STEERING STEM HEAD

€ 116.50

21

44041039
ref: 21

BOLT,HEX HEAD,10MM

€ 12.00

22

461F1000
ref: 22

WASHER-SPRING,10MM

€ 0.50

23

44041041
ref: 23

BOLT,HEX HEAD,10X30

€ 12.00

24

314N1000
ref: 24

NUT,10 M/M

€ 1.00

25

44037045
ref: 25

STEERING STEM

€ 248.00

26

44041010
ref: 26

BOLT-PINCH

€ 5.00

27

92047004
ref: 27

CONE-LOWER BEARING

€ 13.00

28

920011405
ref: 28

BOLT,8X38

€ 10.00

29

461F0800
ref: 29

WASHER-SPRING,8MM

€ 0.50

30

46012004
ref: 30

HOLDER-UPPER HANDLBAR

€ 14.00

31

28001011
ref: 31

REFLECTOR-REFLEX,FRNT

€ 14.50

32

411B0500
ref: 32

WASHER-PLAIN,5MM

€ 0.50

33

461F0500
ref: 33

WASHER-SPRING,5MM

€ 0.50

34

311B0500
ref: 34

NUT-HEX

€ 0.50

35

270165025
ref: 35

LOCK-ASSY,STEERING

€ 23.00

36

92099001
ref: 36

SCREW RIVET

€ 2.50

37

4400108921
ref: 37

FRONT FORK,FLAT BLACK

€ 1,140.50

FRONT FORK G4TR-B ('70-'73)

all assemblies
