OIL TANK ('74-'75 F9-B/F9-C 350)
F9A 1973 USA CANADA

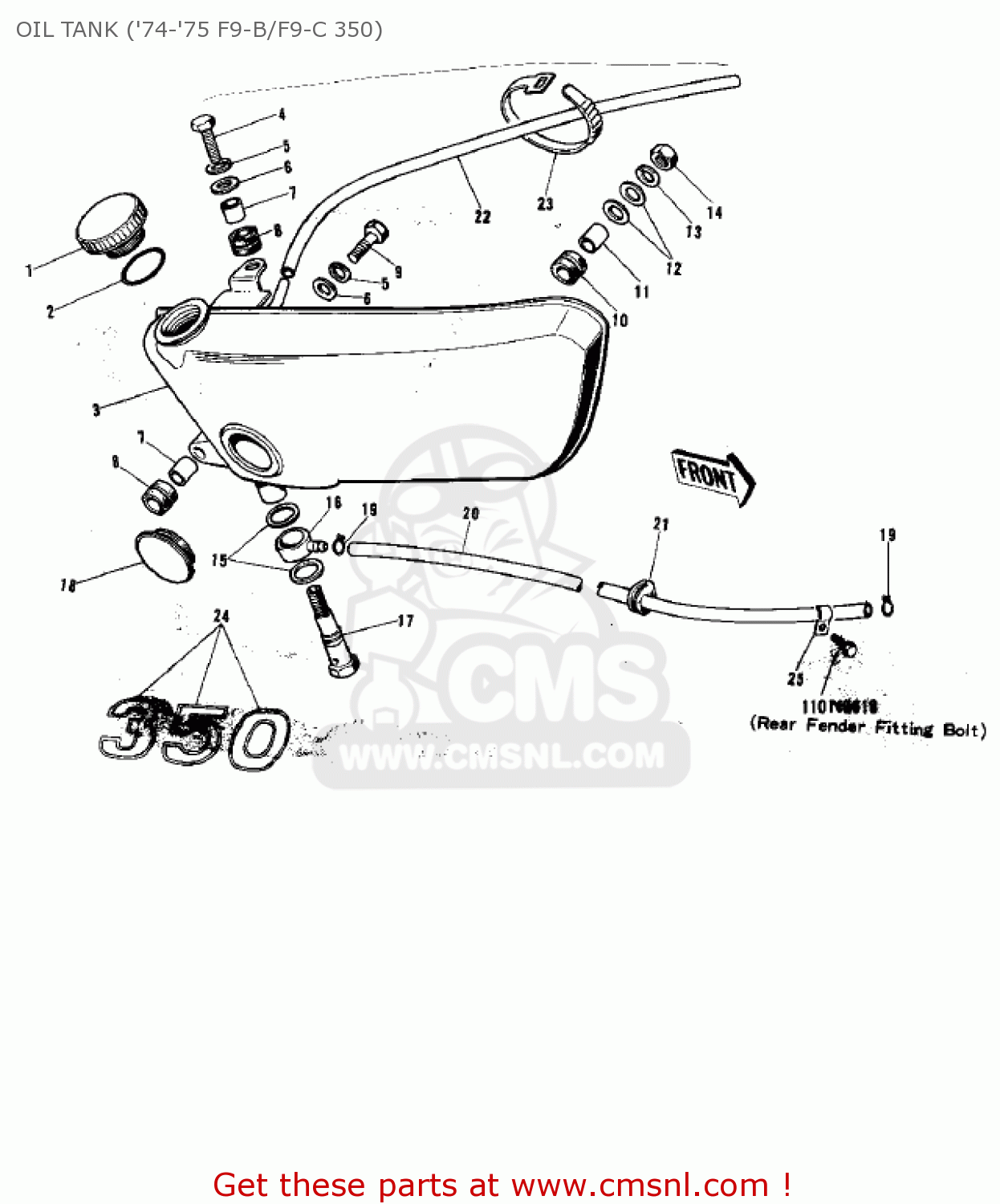

Oil tank ('74-'75 f9-b/f9-c 350) diagram F9A 1973 USA CANADA
OIL TANK ('74-'75 F9-B/F9-C 350) F9A 1973 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
52003009
ref: 1
CAP-OIL TANK
€ 4.50
2
670B3036
ref: 2
O RING,36MM
€ 0.50
3
5200102021
ref: 3
OIL TANK,FLAT BLACK
€ 272.00
4
112G0625
ref: 4
BOLT-UPSET,6X25
€ 4.00
5
461F0600
ref: 5
WASHER-SPRING,6MM
€ 0.50
6
92022125
ref: 6
1.D=6.50
WASHER,6.5X20X1.6
€ 1.00
7
92027103
ref: 7
0.D=100
COLLAR
€ 2.50
8
92075051
ref: 8
1.D=90
DAMPER RUBBER
€ 2.50
9
112G0618
ref: 9
BOLT-UPSET
€ 0.50
10
18063005
ref: 10
1.D=11.50
DAMPER,MUFFLER
€ 3.00
11
92027102
ref: 11
0.D=120
COLLAR
€ 1.00
12
92022035
ref: 12
1.D=80
WASHER-FUEL TANK FIT
€ 2.50
13
461F0800
ref: 13
WASHER-SPRING,8MM
€ 0.50
14
311B0800
ref: 14
NUT,8MM
€ 0.50
15
110091146
ref: 15
GASKET,10.2X15X1.5 (NAS)
€ 2.00
16
92061003
ref: 16
FITTING,BANJO
€ 6.50
17
92060001
ref: 17
BOLT-OIL TANK BANJO
€ 8.50
18
52015001
ref: 18
GAUGE,OIL LEVEL
€ 8.00
19
92037010
ref: 19
CLAMP-FUEL PIPE
€ 2.50
20
92059064
ref: 20
L=580 M\M
PIPE
€ 16.50
21
92071041
ref: 21
GROMMET-OIL PIPE
€ 0.50
22
700Q05540
ref: 22
TUBE-VINYL,5X540
€ 0.50
23
92072030
ref: 23
BAND,SHORT
€ 3.00
24
56018132
ref: 24
OIL TANK EMBLEM
€ 45.00
24
56018188
ref: 24
F9C
OIL TANK EMBLEM
€ 23.50
25
92037020
ref: 25
CLAMP-CABLE
€ 1.50
