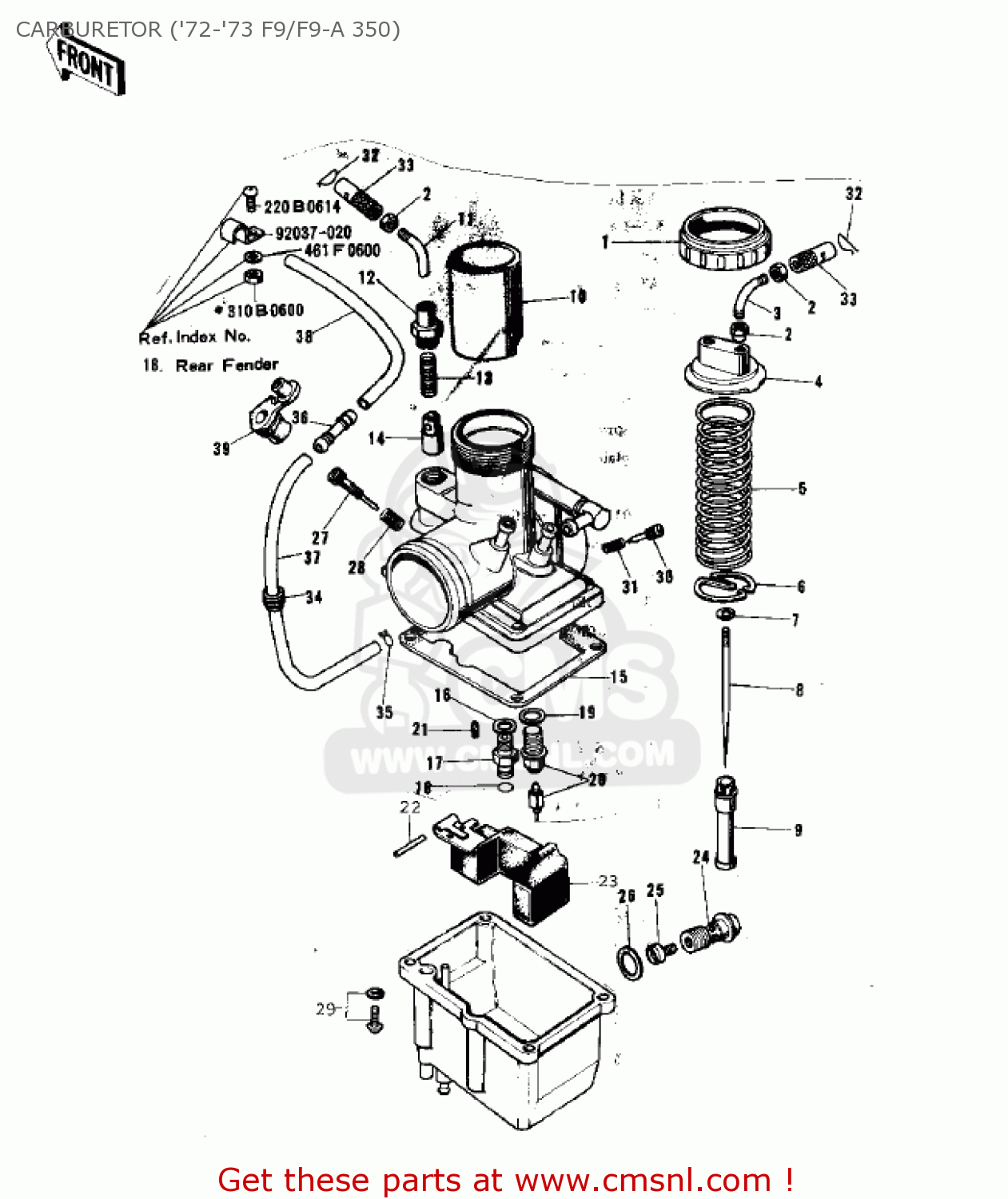

CARBURETOR ('72-'73 F9/F9-A 350)

ref

part #

description

quantity

?

16001140
ref: ?
Includes items 1 - 3

CARBURETOR ASSY

€ 111.50

?

16001161
ref: ?
Includes items 1 - 3

CARBURETOR ASSEMBLY

€ 361.00

1

16004006
ref: 1

CAP-MIXING CHAMBER

€ 14.00

2

16003004
ref: 2

NUT-CABLE ADJUST LOCK

€ 4.50

3

16077001
ref: 3

GUIDE,CABLE

€ 6.50

4

16005016
ref: 4

TOP-MIXING CHAMBER

€ 8.00

5

16006007
ref: 5

SPRING-THROTTLE VALVE

€ 4.00

6

16007007
ref: 6

SPRING SEAT-THRTL VLV

€ 7.50

7

16008010
ref: 7

CLAMP,E-TYPE

€ 5.00

8

16009048
ref: 8

JET NEEDLE 5EJ13

€ 19.50

9

16017057
ref: 9

NEEDLE JET,O-6

€ 26.00

10

16025045
ref: 10

VALVE-THROTTLE CA1.5

€ 21.00

11

16025052
ref: 11

THROTTLE VALVE,CA2.0

€ 101.50

12

16012013
ref: 12

CAP-STARTER PLUNGER

€ 3.00

13

16013003
ref: 13

SPRING-STARTER PLUNG

€ 4.00

14

16016002
ref: 14

PLUNGER,STARTER

€ 20.00

15

16019017
ref: 15

GASKET-FLOAT CHAMBER (MCA)

€ 4.00

16

16034001
ref: 16

WASHER-MAIN JET

€ 2.50

17

16065008
ref: 17

HOLDER,JET NEEDLE

€ 12.00

18

92055044
ref: 18

'O' RING

€ 7.00

19

16029004
ref: 19

WASHER-FLOAT VLV SEAT

€ 2.50

20

16030005
ref: 20

VALVE-FLOAT,2.5

€ 43.00

21

92064034
ref: 21

PILOT JET #10

€ 7.50

21

92064046
ref: 21
F9A

JET,PILOT,#17.5

€ 18.50

22

16032006
ref: 22

PIN,FLOAT

€ 4.00

23

16031022
ref: 23

FLOAT

€ 13.00

24

92001097
ref: 24

BOLT-BANJO

€ 15.50

25

92063078
ref: 25
STD

MAIN JET,#120R

€ 11.50

25

92063076
ref: 25
STD

MAIN JET,#115R

€ 5.50

25

92063077
ref: 25
STD

JET-MAIN,#117.5R

€ 10.00

25

920631101
ref: 25
STD

JET-MAIN,#A122.5

€ 9.50

25

92063055
ref: 25
STD

MAIN JET,#125R

€ 9.50

26

16034005
ref: 26

WASHER,BANJO BOLT (MCA)

€ 3.00

27

16021014
ref: 27

SCREW-THROTTLE STOP

€ 4.50

28

16022005
ref: 28

SPRING-THR STOP SCREW

€ 5.50

29

223B0414
ref: 29

SCREW PAN-WS-CROS

€ 2.50

30

16014011
ref: 30

SCREW-PILOT AIR ADJST

€ 2.50

31

16022007
ref: 31

SPRING-THR STOP SCREW

€ 5.50

32

92036018
ref: 32

CIRCLIP

€ 2.50

33

16002007
ref: 33

ADJUSTER-CABLE,THROTT

€ 7.50

34

92071038
ref: 34

GROMMET,PIPE

€ 2.50

35

92037010
ref: 35

CLAMP-FUEL PIPE

€ 2.50

36

92005003
ref: 36

NIPPLE

€ 2.00

37

92059065
ref: 37

PIPE

€ 22.00

38

92059002
ref: 38

PIPE-OIL TANK

€ 22.00
