FENDERS (F9-A)
F9A 1973 USA CANADA

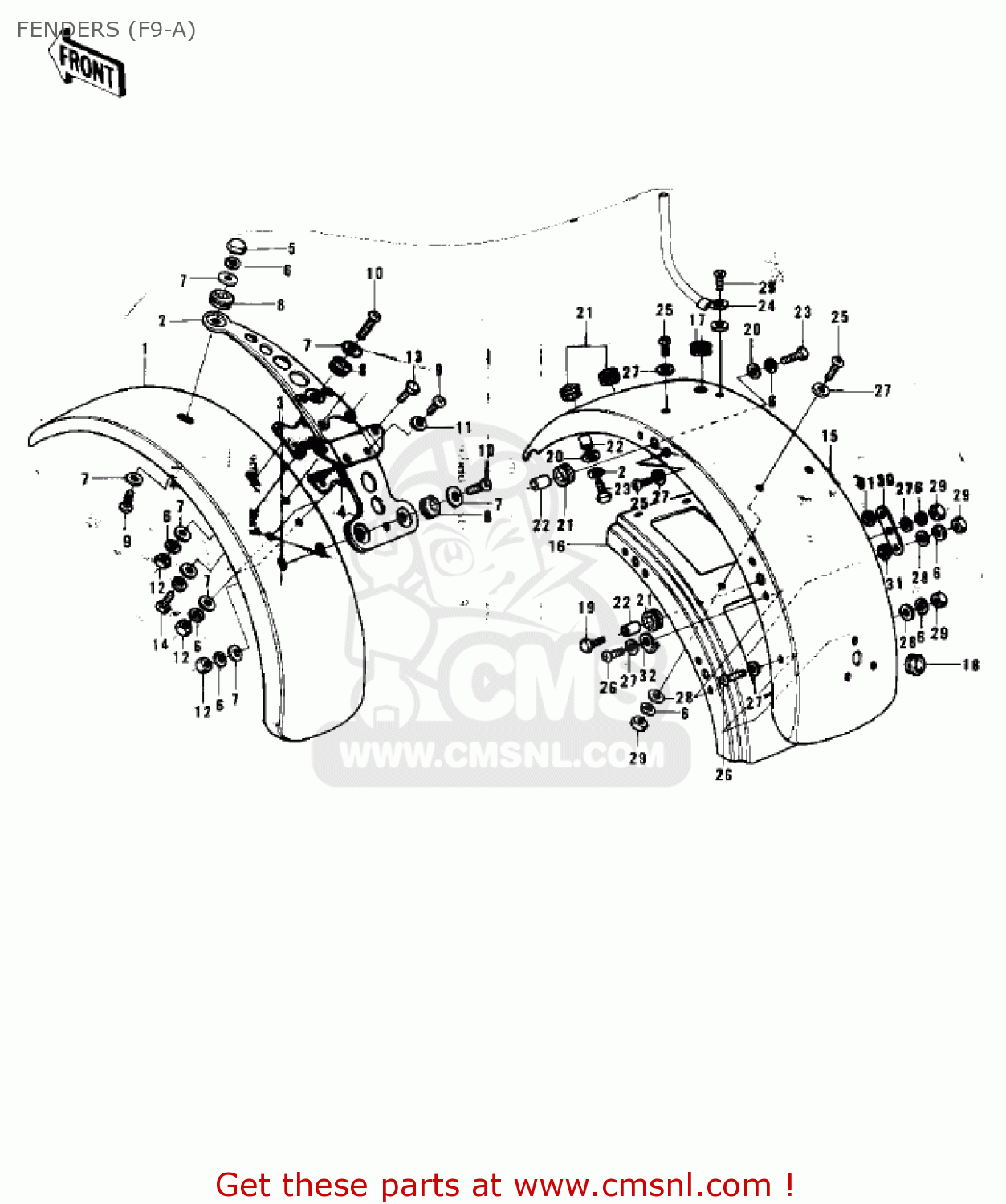

Fenders (f9-a) diagram F9A 1973 USA CANADA
FENDERS (F9-A) F9A 1973 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
3500407190
ref: 1
FRONT FENDER,LIME GREEN
€ 187.00
2
35012019
ref: 2
FRONT FENDER BRACKET
€ 54.50
3
35007002
ref: 3
RUBBER-FRNT FEND DAMP
€ 1.50
4
35007003
ref: 4
DAMPER RUBBER-FR FEDR
€ 1.00
5
92015009
ref: 5
NUT,6MM
€ 2.00
6
461F0600
ref: 6
WASHER-SPRING,6MM
€ 0.50
7
92022125
ref: 7
O.D-20
WASHER,6.5X20X1.6
€ 1.00
8
92075051
ref: 8
DAMPER RUBBER
€ 2.50
9
220B0620
ref: 9
SCREW-PAN HEAD,6X20
€ 2.50
10
220E0620
ref: 10
SCREW-PAN HEAD,6X20
€ 2.00
11
92022024
ref: 11
O.D-16
WASHER,7X16X1.2
€ 2.50
12
312B0600
ref: 12
NUT,6MM
€ 0.50
13
112G0625
ref: 13
BOLT-UPSET,6X25
€ 4.00
13
112G0625
ref: 13
BOLT-UPSET,6X25
€ 4.00
14
112G0640
ref: 14
BOLT-UPSET,6X40
€ 2.50
15
3502207590
ref: 15
REAR FENDER,LIME GREEN
€ 190.50
16
35034010
ref: 16
BRACE-REAR FENDER
€ 15.50
17
92071010
ref: 17
GROMMET,HARNESS
€ 2.00
18
92071019
ref: 18
GROMMET,10MM
€ 2.50
19
110N0618
ref: 19
BOLT-HEX HEAD,6X18
€ 2.00
20
92022125
ref: 20
WASHER,6.5X20X1.6
€ 1.00
21
92075051
ref: 21
DAMPER RUBBER
€ 2.50
22
92027103
ref: 22
COLLAR
€ 2.50
23
112G0620
ref: 23
BOLT 6X20
€ 1.00
23
112G0620
ref: 23
BOLT 6X20
€ 1.00
24
92037020
ref: 24
CLAMP-CABLE
€ 1.50
25
220B0614
ref: 25
SCREW-PAN HEAD,6X14
€ 2.00
26
220E0614
ref: 26
SCREW-PAN HEAD,6X14
€ 2.00
27
92022024
ref: 27
WASHER,7X16X1.2
€ 2.50
28
411B0600
ref: 28
O.D-13
WASHER-PLAIN,6MM
€ 0.50
29
311B0600
ref: 29
NUT,6MM
€ 0.50
30
92022200
ref: 30
WASHER-PLAIN
€ 3.00
31
92075097
ref: 31
DAMPER RUBBER
€ 1.00
32
35024002
ref: 32
CLAMP,WIRING HARNESS
€ 2.00
