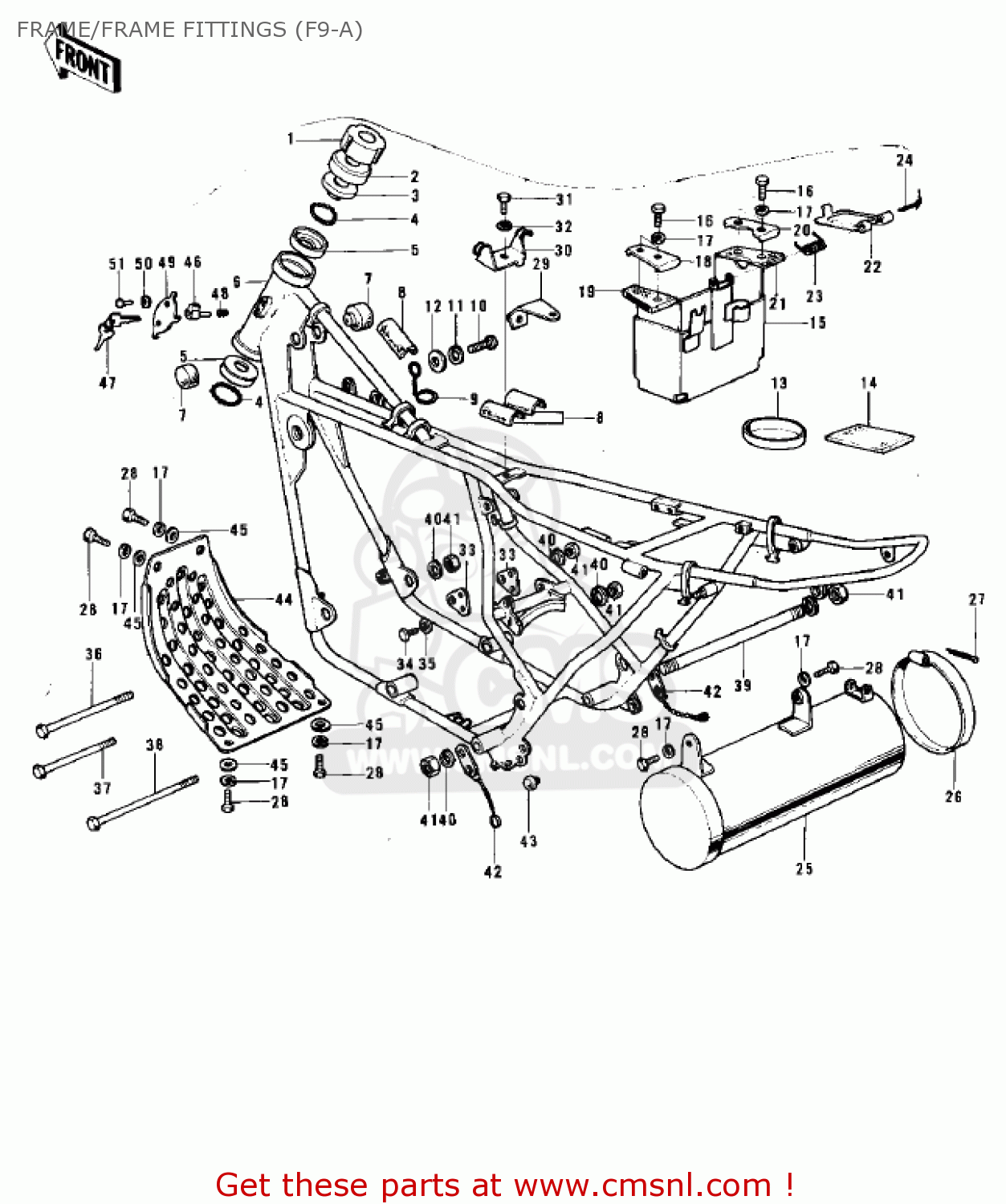

FRAME/FRAME FITTINGS (F9-A)

ref

part #

description

quantity

1

92090006
ref: 1

NUT-STEERING STEM LCK

€ 10.50

2

46098005
ref: 2

CAP-STEERING STEM

€ 2.50

3

92047003
ref: 3

CONE-STERNG BERG UPP

€ 9.00

4

600A0800
ref: 4

BALL-STEEL,1/4

€ 0.50

5

92048005
ref: 5

RACE-STEERING BEARING

€ 11.50

6

32002059
ref: 6

FRAME

€ 1,548.50

7

92075050
ref: 7

DAMPER,FUEL TANK

€ 3.00

8

51067002
ref: 8

MAT-FUEL TANK

€ 12.00

9

92037053
ref: 9

CLAMP

€ 1.50

10

112G0610
ref: 10

BOLT,6X10

€ 0.50

10

112G0610
ref: 10

BOLT,6X10

€ 0.50

11

461F0600
ref: 11

WASHER-SPRING,6MM

€ 0.50

12

410B0600
ref: 12

WASHER-PLAIN-SMALL,6M

€ 0.50

13

32103023
ref: 13

DAMPER,BATTERY BOTTOM

€ 2.50

14

32103022
ref: 14

MAT-BATTERY

€ 1.00

15

32097025
ref: 15

BATTERY CASE

€ 64.50

16

112G0618
ref: 16

BOLT-UPSET

€ 0.50

16

112G0618
ref: 16

BOLT-UPSET

€ 0.50

17

461F0600
ref: 17

WASHER-SPRING,6MM

€ 0.50

18

32101006
ref: 18

BATTERY CASE PLATE,LH

€ 3.00

19

92075152
ref: 19

BATTERY DAMPER,RUBBER

€ 4.50

20

32101007
ref: 20

BATTERY CASE PLATE,RH

€ 3.00

21

92075153
ref: 21

BATTERY DAMPER,RUBBER

€ 6.50

22

92072048
ref: 22

BATTERY BAND

€ 7.50

23

92083017
ref: 23

SPRING-RETURN

€ 1.50

24

550D2535
ref: 24

PIN-COTTER,2.5X35

€ 1.50

25

3209801421
ref: 25

BOX-TOOL,F.BLACK

€ 19.50

26

32099005
ref: 26

CAP-TOOL CASE

€ 6.00

27

550D2030
ref: 27

PIN COTTER 2.0X30

€ 1.00

28

112G0612
ref: 28

BOLT-UPSET

€ 2.50

28

112G0612
ref: 28

BOLT-UPSET

€ 2.50

29

27023001
ref: 29

BRACKET-SIGNAL RELAY

€ 2.00

30

32052046
ref: 30

FUEL TANK BRACKET

€ 6.50

31

115G0818
ref: 31

BOLT SMALL-UPSET

€ 2.50

32

461F0800
ref: 32

WASHER-SPRING,8MM

€ 0.50

33

32030020
ref: 33

PLATE-ENGINE MOUNT

€ 4.00

34

115G0820
ref: 34

BOLT,8X20

€ 2.00

34

115G0820
ref: 34

BOLT,8X20

€ 2.00

35

461F0800
ref: 35

WASHER-SPRING,8MM

€ 0.50

36

113B12163A
ref: 36

BOLT-HEX HEAD,12X163

€ 7.50

37

113B12151A
ref: 37

BOLT-HEX HEAD,12X151

€ 4.50

38

113B12260A
ref: 38

BOLT-HEX HEAD,12X260

€ 8.50

39

92006002
ref: 39

STUD

€ 8.50

40

461F1200
ref: 40

WASHER-SPRING,12MM

€ 0.50

41

315B1200
ref: 41

NUT,12MM

€ 0.50

42

58041007
ref: 42

CHAIN

€ 12.00

43

92074005
ref: 43

PLUG,8X2

€ 2.50

44

55011014
ref: 44

ENGINE GUARD

€ 33.50

45

92022125
ref: 45

WASHER,6.5X20X1.6

€ 1.00

?

27016028
ref: ?
Includes items 46 an

LOCK ASSY-STEERING

€ 18.00

47

2701801465
ref: 47
#265

KEY SET-STRNG,#265

€ 2.50

47

2701801466
ref: 47
#266

KEY SET-STRNG,#266

€ 2.50

47

2701801467
ref: 47
#267

KEY SET-STRNG,#267

€ 2.50

47

2701801468
ref: 47
#268

KEY SET-STRNG,#268

€ 2.50

47

2701801469
ref: 47
#269

KEY SET-STRNG,#269

€ 2.50

48

27032001
ref: 48

SPRING-STEERING LOCK

€ 3.50

49

110121134
ref: 49

CAP,STEERING LOCK

€ 4.50

50

92097003
ref: 50

WASHER

€ 2.50

51

92008007
ref: 51

SCREW-TAPPING

€ 2.50
