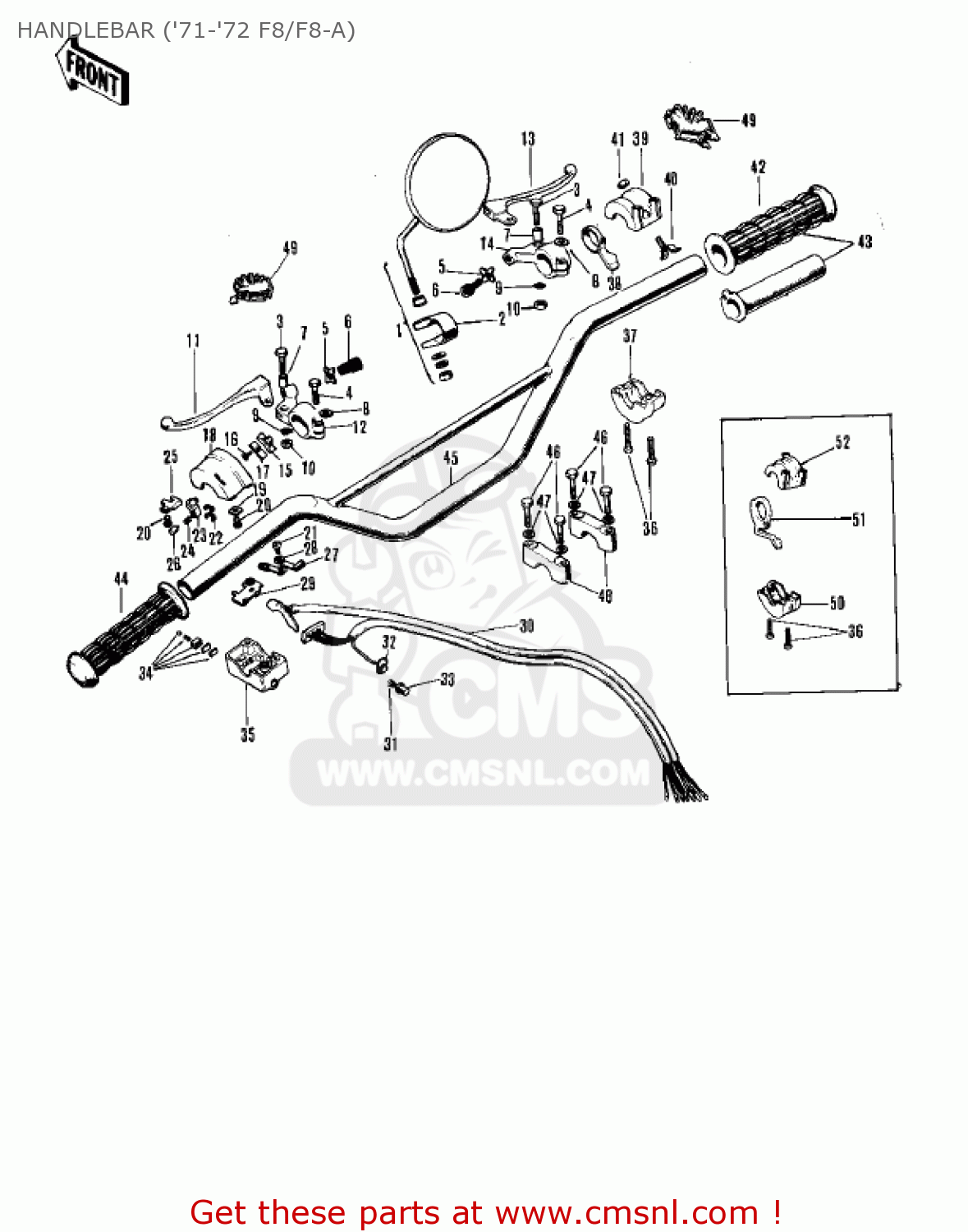

HANDLEBAR ('71-'72 F8/F8-A)

ref

part #

description

quantity

1

56001005
ref: 1

REAR VIEW MIRROR

€ 54.00

2

56006001
ref: 2

PLATE,MIRROR

€ 8.50

?

46076014
ref: ?
Includes items 3 - 1

LEVER ASSY-CLUTCH

€ 30.00

3

92007020
ref: 3

BOLT-HEX HEAD,5X20

€ 2.50

4

112N0620
ref: 4

BOLT-UPSET

€ 1.00

5

46056001
ref: 5

NUT-ADJUST SCREW LOCK

€ 2.50

6

46055003
ref: 6

SCREW-CABLE ADJUST

€ 11.50

7

46059011
ref: 7

COLLAR,LEVER

€ 3.50

8

410B0600
ref: 8

WASHER-PLAIN-SMALL,6M

€ 0.50

9

464H0500
ref: 9

WASHER-LOCK,5MM

€ 0.50

10

312B0500
ref: 10

NUT-HEX,5MM

€ 0.50

11

46092015
ref: 11

LEVER-GRIP,CLUTCH

€ 11.50

12

46094010
ref: 12

HOLDER,CLUTCH LEVER

€ 31.50

?

46021010
ref: ?
Includes items 3 - 1

LEVER ASSY-FRNT BRAKE

€ 35.50

13

46058004
ref: 13

LEVER-GRIP,FRONT BRAK

€ 24.00

14

46060006
ref: 14

HOLDER-FR BRAKE LEVER

€ 26.00

?

46091004
ref: ?
Includes items 15 -

CASE ASSY-L.H

€ 88.00

15

46044011
ref: 15

KNOB-L.H SWITCH

€ 6.00

16

221B0308A
ref: 16

SCREW-CNTSNK HD,3X8

€ 2.50

17

46031003
ref: 17

SPRING-L.H SW KNOB

€ 1.50

18

46086013
ref: 18

CASE-L.H SWITCH UPPER

€ 9.50

19

46085013
ref: 19

HOLDER-L.H SW UPPER,A

€ 1.50

20

220B0305A
ref: 20

SCREW-PAN HEAD,3X5

€ 1.00

21

220B0308
ref: 21

SCREW-PAN-CROS

€ 0.50

22

46080002
ref: 22

PLATE-L.H SW CONTACT

€ 1.50

23

46089003
ref: 23

SWITCH-L.H

€ 2.50

24

46031004
ref: 24

SPRING-L.H SWITCH

€ 1.50

25

46085014
ref: 25

HOLDER-L.H SW LOWER,B

€ 1.00

26

46079002
ref: 26

CONTACT-L.H SWITCH

€ 1.50

27

46044006
ref: 27

KNOB-SWITCH

€ 2.50

28

92095010
ref: 28

WASHER

€ 2.50

29

46085015
ref: 29

HOLDER-L.H SW LOWER

€ 1.00

30

46082017
ref: 30

WIRING HARNESS-L.H SW

€ 12.50

31

270101009
ref: 31

SWITCH ASSY,HORN BUTN

€ 5.50

32

270101009
ref: 32

SWITCH ASSY,HORN BUTN

€ 5.50

33

270101009
ref: 33

SWITCH ASSY,HORN BUTN

€ 5.50

34

46089004
ref: 34

SLIDE BLOCK AY-L.H SW

€ 6.50

35

46077015
ref: 35

CASE-L.H SWITCH LOWER

€ 9.50

?

46018019
ref: ?
Includes items 36 -

CASE ASSY-R.H

€ 67.50

36

220B0522
ref: 36

SCREW-PAN-CROS

€ 0.50

37

46023005
ref: 37

CASE-R.H LOWER

€ 13.00

38

46096006
ref: 38

LEVER-STARTER

€ 29.00

39

46041003
ref: 39

UNAVAILABLE IN PRICE BOOK

€ 0.00

40

46024002
ref: 40

SPRING-THROTTLE GRIP

€ 0.50

41

312B0500
ref: 41

NUT-HEX,5MM

€ 0.50

42

46061012
ref: 42

GRIP,RUBBER,RH

€ 18.50

43

46019013
ref: 43

GRIP ASSY,THROTTLE

€ 15.00

44

46075017
ref: 44

GRIP,LH

€ 15.50

45

46004016
ref: 45

HANDLEBAR

€ 69.00

46

920011405
ref: 46

BOLT,8X38

€ 10.00

47

461F0800
ref: 47

WASHER-SPRING,8MM

€ 0.50

48

46012008
ref: 48

HOLDER-HANDLE,UPP

€ 23.00

49

46071001
ref: 49

DUST COVER

€ 9.00

?

46018019
ref: ?
Includes items 36 an

CASE ASSY-R.H

€ 67.50

50

46023005
ref: 50

CASE-R.H LOWER

€ 13.00

51

46096006
ref: 51

LEVER-STARTER

€ 29.00

52

46041005
ref: 52

CASE-R.H UPPER

€ 59.50

HANDLEBAR ('71-'72 F8/F8-A)

all assemblies
