CARBURETOR ('71-'72 F8/F8-A)
F8A 1972 USA

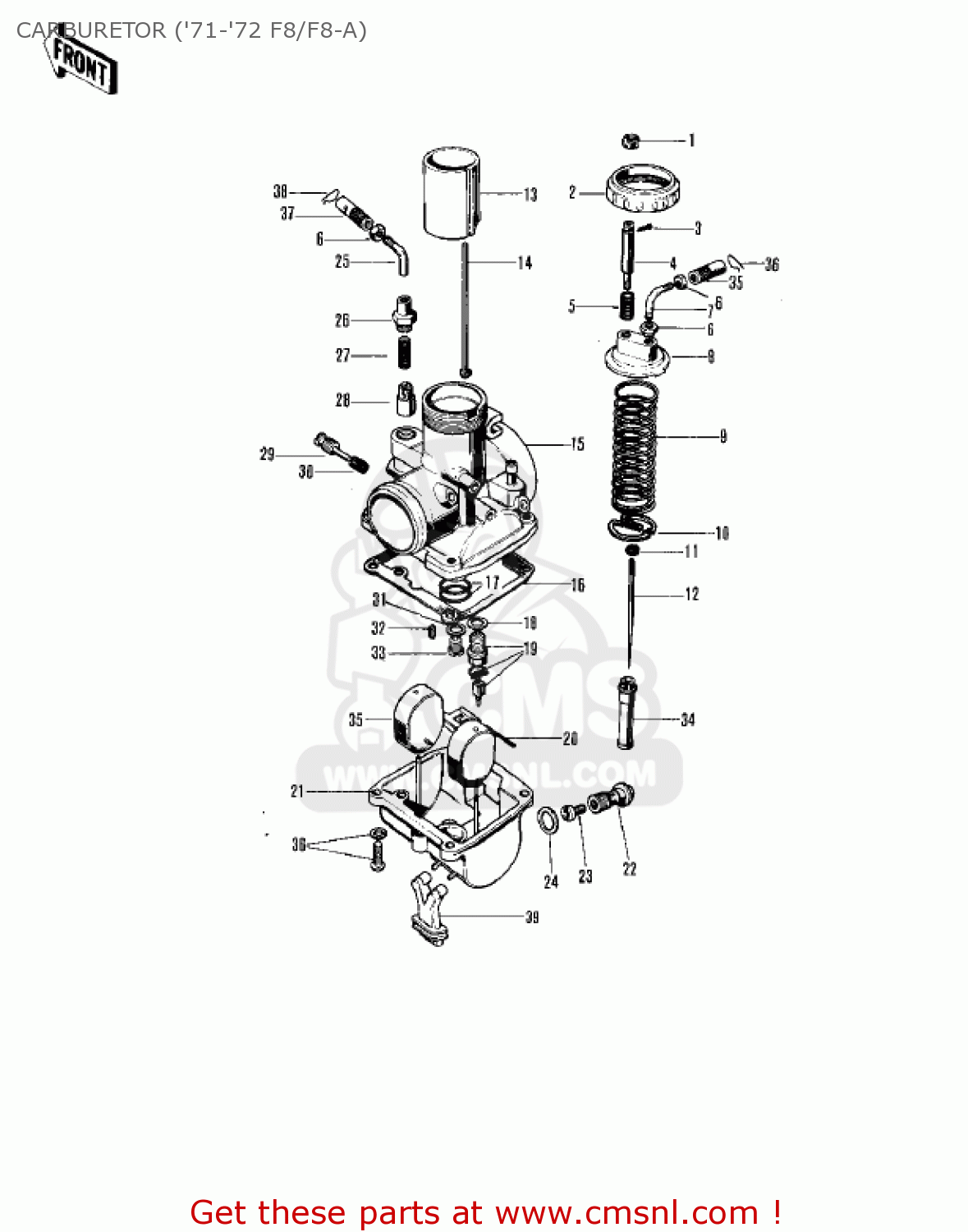

Carburetor ('71-'72 f8/f8-a) diagram F8A 1972 USA
CARBURETOR ('71-'72 F8/F8-A) F8A 1972 USA
×
prices are in EUR
ref
part #
description
quantity
?
16001121
ref: ?
Includes items 1 - 3
CARBURETOR ASSEMBLY
€ 551.00
1
16037002
ref: 1
CAP,PILOT SCREW
€ 4.50
2
16004015
ref: 2
MIXING CHAMBER CAP
€ 25.00
3
550D1210
ref: 3
PIN-COTTER,1.2X10
€ 1.50
4
16021009
ref: 4
SCREW-THROTTLE STOP
€ 4.50
5
16022005
ref: 5
SPRING-THR STOP SCREW
€ 5.50
6
16003004
ref: 6
NUT-CABLE ADJUST LOCK
€ 4.50
7
16077001
ref: 7
GUIDE,CABLE
€ 6.50
8
16005022
ref: 8
TOP-MIXING CHAMBER
€ 15.50
9
16006016
ref: 9
SPRING-THROTTLE VALVE
€ 12.50
10
16007014
ref: 10
THROTTLE VALVE SPRING SEAT
€ 12.00
11
16008010
ref: 11
CLAMP,E-TYPE
€ 5.00
12
16009039
ref: 12
SEL9
JET,NEEDLE,5EL9
€ 71.00
13
16025033
ref: 13
CA2.5
THROTTLE VALVE
€ 95.50
14
16024010
ref: 14
THROTTLE VALVE STOP ROD
€ 9.50
16
16019015
ref: 16
GASKET-FLOAT CHAMBER (MCA)
€ 9.00
17
92055042
ref: 17
V-RING
€ 23.50
18
16029004
ref: 18
WASHER-FLOAT VLV SEAT
€ 2.50
19
16030013
ref: 19
FLOAT VALVE ASSEMBLY
€ 61.00
20
16032005
ref: 20
FLOAT PIN
€ 8.00
21
92001097
ref: 21
BOLT-BANJO
€ 15.50
23
92063077
ref: 23
STD
JET-MAIN,#117.5R
€ 10.00
23
92063076
ref: 23
OPTION
MAIN JET,#115R
€ 5.50
23
92063078
ref: 23
OPTION
MAIN JET,#120R
€ 11.50
23
920631101
ref: 23
OPTION
JET-MAIN,#A122.5
€ 9.50
24
16034005
ref: 24
WASHER,BANJO BOLT (MCA)
€ 3.00
25
16077005
ref: 25
CABLE GUIDE
€ 3.50
26
16012013
ref: 26
CAP-STARTER PLUNGER
€ 3.00
27
16013003
ref: 27
SPRING-STARTER PLUNG
€ 4.00
28
16016002
ref: 28
PLUNGER,STARTER
€ 20.00
29
16014006
ref: 29
SCREW-PILOT AIR
€ 9.00
30
16022007
ref: 30
SPRING-THR STOP SCREW
€ 5.50
31
16034001
ref: 31
WASHER-MAIN JET
€ 2.50
32
92064022
ref: 32
PILOT JET #30 ISO
€ 11.50
33
92063102
ref: 33
JET,MAIN,#2.4R
€ 11.50
34
16017042
ref: 34
JET,NEEDLE,#0-8
€ 25.00
35
16031020
ref: 35
FLOAT
€ 52.50
36
223B0414
ref: 36
SCREW PAN-WS-CROS
€ 2.50
37
16002007
ref: 37
ADJUSTER-CABLE,THROTT
€ 7.50
38
92036018
ref: 38
CIRCLIP
€ 2.50
39
16136004
ref: 39
OVERFLOW PIPE GROMMET
€ 12.00
