CRANKSHAFT/PISTON/ROTARY VALVE
F8A 1972 USA

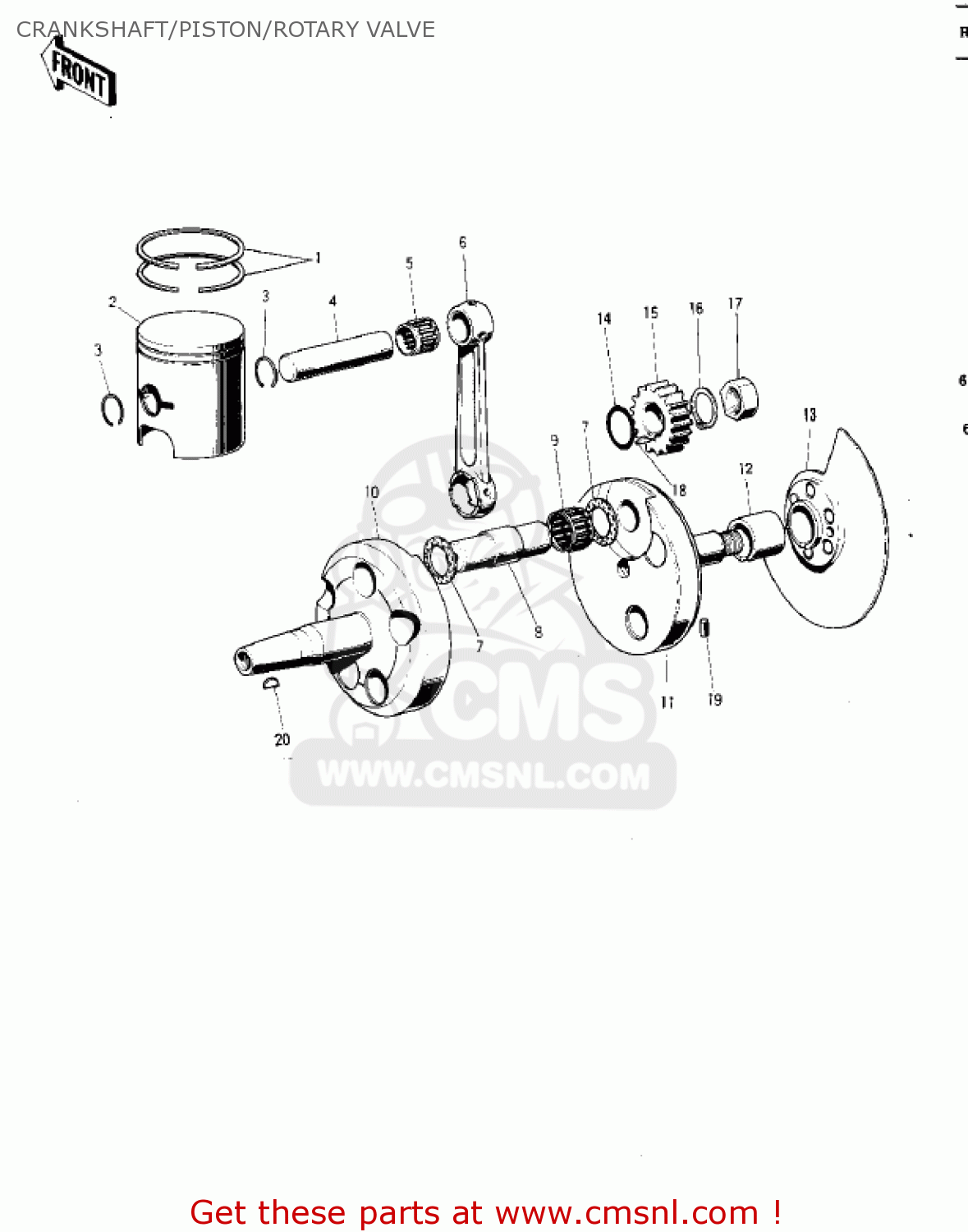

Crankshaft/piston/rotary valve diagram F8A 1972 USA
CRANKSHAFT/PISTON/ROTARY VALVE F8A 1972 USA
×
prices are in EUR
ref
part #
description
quantity
1
13008030
ref: 1
RING SET,STD
€ 28.50
2
13001046
ref: 2
PISTON,STD
€ 114.50
3
92036015
ref: 3
RING-SNAP,PISTON PIN
€ 3.00
4
13002017
ref: 4
PIN-PISTON
€ 17.50
5
130331010
ref: 5
KDK
BEARING-NEEDLE,KBK18X
€ 22.50
?
13036029
ref: ?
Includes items 6 - 1
CRANK AND CONNECTING ROD ASSEMBLY
€ 908.00
?
13044016
ref: ?
Includes items 6 - 9
CONNECTING ROD SET
€ 278.00
7
92026069
ref: 7
WASHER-CONROD SIDE
€ 4.00
8
13035026
ref: 8
CRANK PIN
€ 44.50
9
13034032
ref: 9
PK293817.8X
BRG-N,PK293817.8X2
€ 12.50
1
13037041
ref: 1
CRANKSHAFT,LH
€ 305.50
11
13038088
ref: 11
UNAVAILABLE IN PRICE BOOK
€ 0.00
12
92027097
ref: 12
COLLAR-CRANKSHAFT
€ 15.00
13
12001021
ref: 13
ROTARY DISC VALVE
€ 173.50
14
670B3022
ref: 14
'O' RING,22MM
€ 2.00
15
13121028
ref: 15
PRIMARY PINION,24T
€ 216.50
16
92024029
ref: 16
WASHER-LOCK,18MM
€ 1.00
17
92015019
ref: 17
NUT,18MM
€ 4.00
18
510A5100
ref: 18
KEY-WOODRUFF
€ 1.50
19
610A0412
ref: 19
ROLLER,4X12
€ 2.50
20
92038001
ref: 20
WOODRUFF KEY
€ 3.00
