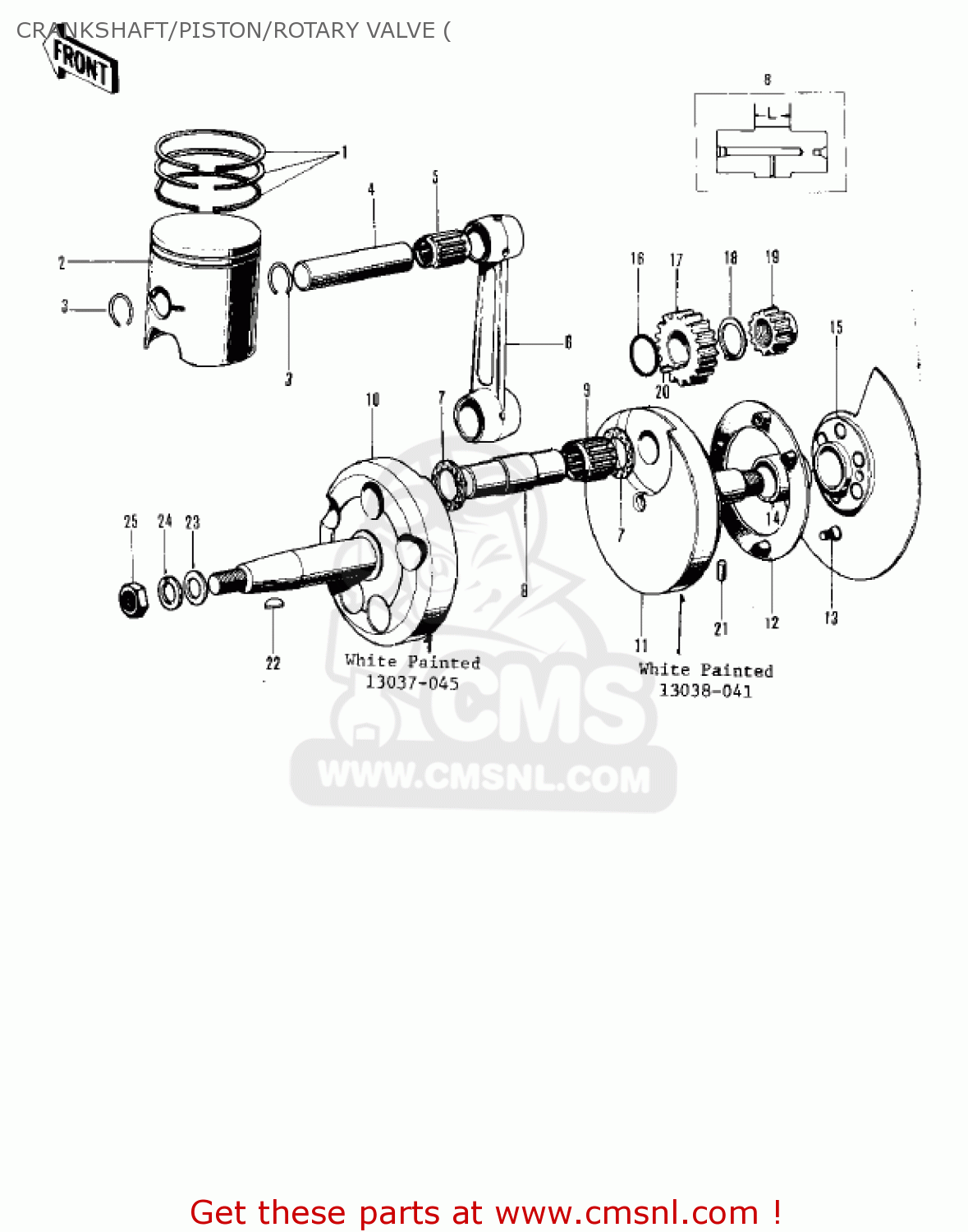

CRANKSHAFT/PISTON/ROTARY VALVE (

ref

part #

description

quantity

1

13008026
ref: 1

RING SET,STD

€ 75.50

2

13001041
ref: 2

PISTON,STD

€ 37.50

3

92036015
ref: 3

RING-SNAP,PISTON PIN

€ 3.00

4

13002017
ref: 4

PIN-PISTON

€ 17.50

5

130331010
ref: 5
KBK182223.8X

BEARING-NEEDLE,KBK18X

€ 22.50

6-13

13036036
ref: 6-13

CRANK&CONROD ASSY

€ 796.50

6-13

13036036
ref: 6-13

CRANK&CONROD ASSY

€ 796.50

6-9

13044009
ref: 6-9

CONNECTING ROD SET

€ 104.50

6-9

13044017
ref: 6-9

CONNECTING ROD SET

€ 144.50

7

92026065
ref: 7
T=1 M/M

WASHER,PLAIN

€ 13.50

7

92026069
ref: 7
T=2 M/M

WASHER-CONROD SIDE

€ 4.00

8

13035021
ref: 8
L=20 M/M

CRANK PIN

€ 127.00

8

13035026
ref: 8
L=2 M/M

CRANK PIN

€ 44.50

9

13034032
ref: 9
PK293817.8X

BRG-N,PK293817.8X2

€ 12.50

10

13037035
ref: 10

CRANKSHAFT,LH

€ 264.50

10

13037045
ref: 10
WHITE PAINTED

CRANKSHAFT,L.H

€ 796.50

11

13038031
ref: 11

CRANKSHAFT,RH

€ 154.50

11

13038045
ref: 11
WHITE PAINTED

CRANKSHAFT,R.H

€ 796.50

12

13045006
ref: 12

HOLDER-CRANKSHAFT OIL

€ 8.00

13

92012002
ref: 13

SCREW-OVL CNTSNK,5X10

€ 1.50

14

92027097
ref: 14

COLLAR-CRANKSHAFT

€ 15.00

15

12001020
ref: 15

VALVE-ROTARY DISC

€ 177.00

16

670B3022
ref: 16

'O' RING,22MM

€ 2.00

17

13121028
ref: 17
24T

PRIMARY PINION,24T

€ 216.50

18

92024029
ref: 18

WASHER-LOCK,18MM

€ 1.00

19

16084011
ref: 19
15T

PINION-OIL PUMP

€ 61.00

20

510A5100
ref: 20

KEY-WOODRUFF

€ 1.50

21

610A0412
ref: 21

ROLLER,4X12

€ 2.50

22

92038001
ref: 22

WOODRUFF KEY

€ 3.00

23

92022172
ref: 23

WASHER,14.5X25X3.6

€ 6.50

24

461F1400
ref: 24

WASHER-SPRING,14MM

€ 0.50

25

92015043
ref: 25

NUT,14MM

€ 3.50

CRANKSHAFT/PISTON/ROTARY VALVE (

all assemblies
