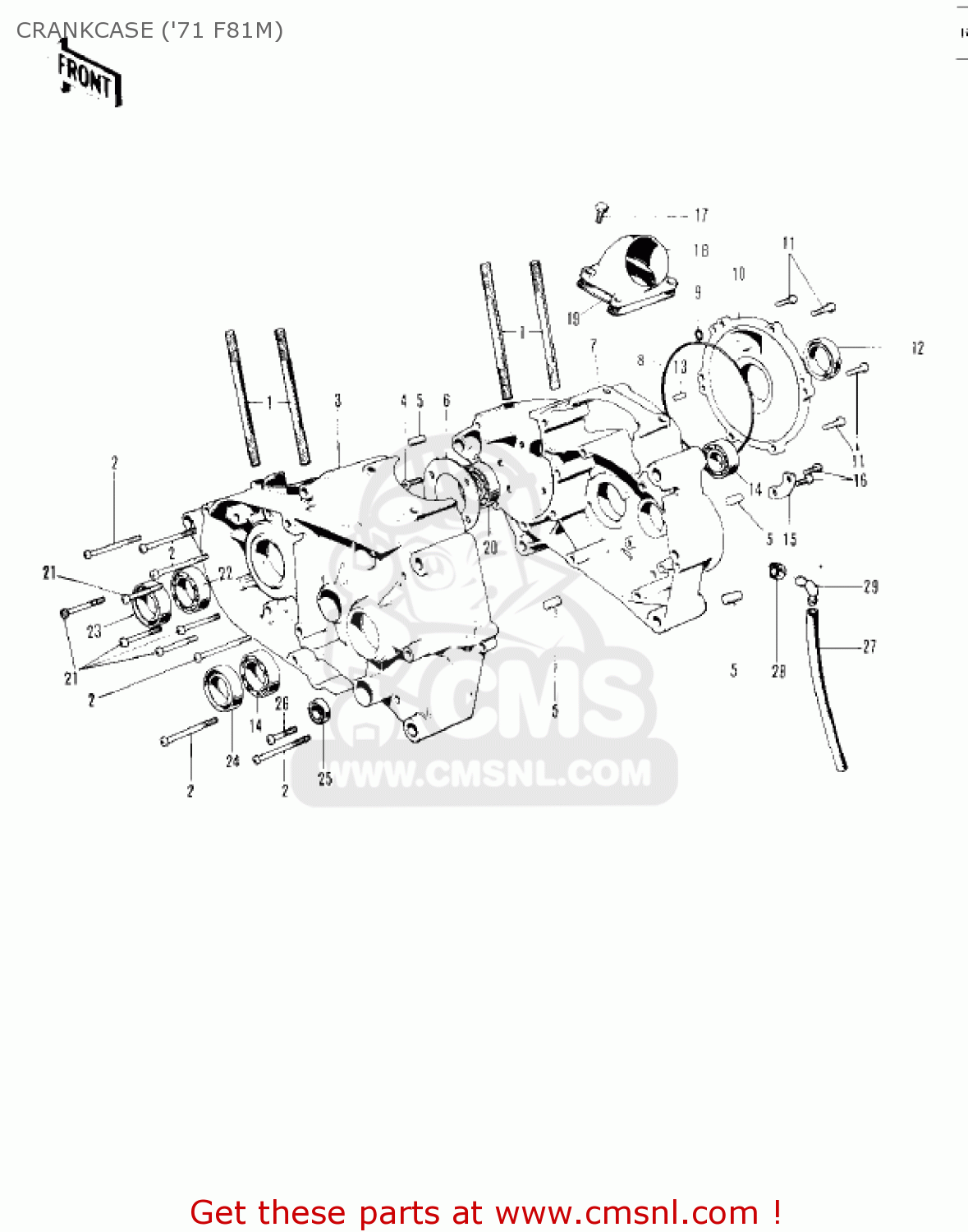

CRANKCASE ('71 F81M)

ref

part #

description

quantity

1

172G1075
ref: 1

STUD,10X75

€ 8.00

2

220B0675
ref: 2

SCREW,PAN HEAD,6X75

€ 3.00

3

14001065
ref: 3

CRANKCASE SET

€ 306.00

4

221B0616
ref: 4

SCREW-CNTSNK HD,6X16

€ 0.50

5

920431037
ref: 5

PIN,DOWEL,10X8.2X14

€ 0.50

6

14014019
ref: 6

HOLDER-CRANK BEARING

€ 5.50

7

14003056
ref: 7

CRANKCASE,R

€ 111.00

8

92055039
ref: 8

'O' RING 134.5MM

€ 9.00

9

670B1505
ref: 9

O RING,5MM

€ 1.00

1

14019047
ref: 1

ROTARY DISC VALVE COVER

€ 89.00

11

220B0620
ref: 11

SCREW-PAN HEAD,6X20

€ 2.50

12

653B354808
ref: 12

OIL SEAL,TB35488

€ 12.50

13

610A0512
ref: 13

ROLLER,5X12

€ 3.00

14

601B6205
ref: 14

BEARING-BALL,#6205C3

€ 14.00

15

14014020
ref: 15

HOLDER-MISSION BERNG

€ 1.00

16

220B0614
ref: 16

SCREW-PAN HEAD,6X14

€ 2.00

17

112G0620
ref: 17

BOLT 6X20

€ 1.00

18

11015021
ref: 18

INLET PIPE

€ 18.00

19

11017005
ref: 19

GASKET-INLET PIPE (NAS)

€ 1.50

20

92045016
ref: 20

BEARING-BALL,#SC0626C

€ 36.00

21

220B0650
ref: 21

SCREW-PAN HEAD,6X50

€ 2.00

22

601B6305
ref: 22

BEARING-BALL,#6305C3

€ 30.00

23

920491250
ref: 23

SEAL-OIL

€ 12.00

24

92050033
ref: 24

SEAL-OIL,TB3040

€ 14.00

25

92049004
ref: 25

OIL SEAL SB12205

€ 6.00

26

220B0630
ref: 26

SCREW-PAN HEAD,6X30

€ 2.50

27

140691001
ref: 27

BREATHER

€ 17.50

28

92071042
ref: 28

GROMMET

€ 2.50

29

92059061
ref: 29

PIPE-BREATHER

€ 3.00

all assemblies
