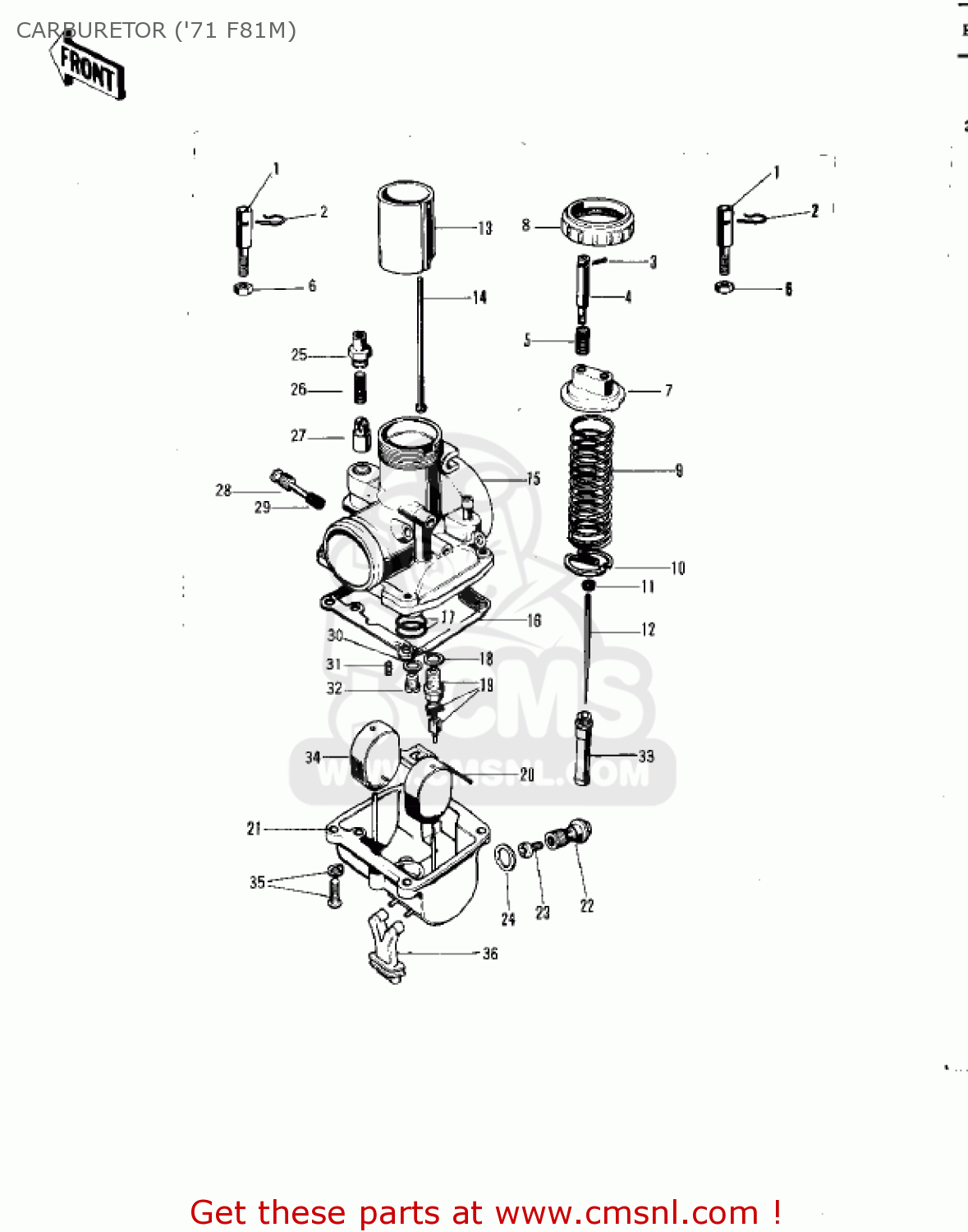

CARBURETOR ('71 F81M)

ref

part #

description

quantity

1

92120001
ref: 1

CABLE ADJUSTER

€ 10.00

2

92036018
ref: 2

CIRCLIP

€ 2.50

?

16001127
ref: ?
Includes items 3 - 3

CARBURETOR ASSEMBLY

€ 413.50

3

550D1610
ref: 3

PIN-COTTER,1.6X10

€ 2.00

4

16021011
ref: 4

THROTTLE STOP SCREW

€ 16.00

5

16022005
ref: 5

SPRING-THR STOP SCREW

€ 5.50

6

16003004
ref: 6

NUT-CABLE ADJUST LOCK

€ 4.50

7

16005022
ref: 7

TOP-MIXING CHAMBER

€ 15.50

8

16004015
ref: 8

MIXING CHAMBER CAP

€ 25.00

9

16006016
ref: 9

SPRING-THROTTLE VALVE

€ 12.50

10

16007014
ref: 10

THROTTLE VALVE SPRING SEAT

€ 12.00

11

16008010
ref: 11

CLAMP,E-TYPE

€ 5.00

12

16009044
ref: 12

JET,NEEDLE,#5EH7

€ 20.00

13

16025033
ref: 13

THROTTLE VALVE

€ 95.50

14

16024011
ref: 14

THROTTLE VALVE STOP ROD

€ 9.50

16

16019015
ref: 16

GASKET-FLOAT CHAMBER (MCA)

€ 9.00

17

92055042
ref: 17

V-RING

€ 23.50

18

16029004
ref: 18

WASHER-FLOAT VLV SEAT

€ 2.50

19

16030013
ref: 19

FLOAT VALVE ASSEMBLY

€ 61.00

20

16032005
ref: 20

FLOAT PIN

€ 8.00

22

92001097
ref: 22

BOLT-BANJO

€ 15.50

23

92063057
ref: 23
S.T.D.

MAIN JET,#130R

€ 9.50

23

92063055
ref: 23
OPTION

MAIN JET,#125R

€ 9.50

23

920631100
ref: 23
OPTION

JET-MAIN,#A127.5

€ 9.50

23

92063103
ref: 23
OPTION

MAIN JET,#132.5R

€ 8.50

23

92063104
ref: 23
OPTION

JET-MAIN,#135R

€ 8.50

24

16034005
ref: 24

WASHER,BANJO BOLT (MCA)

€ 3.00

25

16012004
ref: 25

CAP-STARTER PLUNGER

€ 7.50

26

16013003
ref: 26

SPRING-STARTER PLUNG

€ 4.00

27

16016002
ref: 27

PLUNGER,STARTER

€ 20.00

28

16014006
ref: 28

SCREW-PILOT AIR

€ 9.00

29

16022007
ref: 29

SPRING-THR STOP SCREW

€ 5.50

30

16034001
ref: 30

WASHER-MAIN JET

€ 2.50

31

92064024
ref: 31

JET-PILOT,#40

€ 14.00

32

92063102
ref: 32

JET,MAIN,#2.4R

€ 11.50

33

16017053
ref: 33

JET,NEEDLE

€ 38.00

34

16031020
ref: 34

FLOAT

€ 52.50

35

223B0414
ref: 35

SCREW PAN-WS-CROS

€ 2.50

36

16136004
ref: 36

OVERFLOW PIPE GROMMET

€ 12.00
