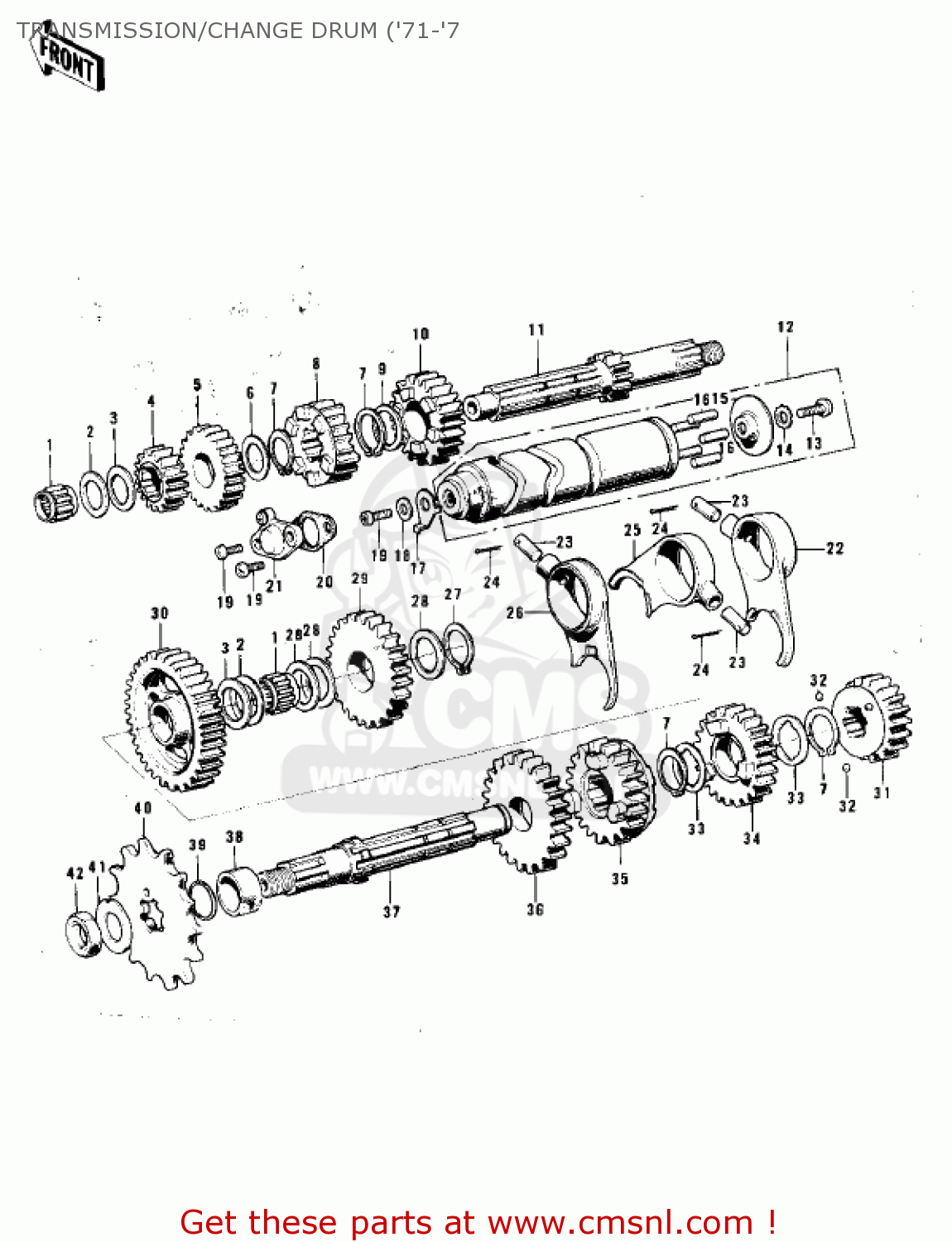

TRANSMISSION/CHANGE DRUM ('71-'7

ref

part #

description

quantity

1

92046026
ref: 1

BEARING-NEEDLE,#7E-HK

€ 24.50

2

92022170
ref: 2
I.D.=16.5

WASHER-THRUST

€ 6.00

3

92022171
ref: 3
PHOSPHOR-BRONZ

WASHER-THRUST

€ 2.50

4

13130024
ref: 4
16T

2ND GEAR-DRIVE SHAFT

€ 29.50

5

13134008
ref: 5
23T

4TH GEAR-DRIVE SHAFT

€ 33.00

6

92022181
ref: 6
I.D=22.5

WASHER,22.5X30X2.6

€ 3.50

7

480J2100
ref: 7

CIRCLIP-TYPE-C,21MM

€ 3.00

8

13132022
ref: 8
I.D=22.5

3RD GEAR-DRIVE SHAFT

€ 71.00

9

92022106
ref: 9
I.D=22.5

WASHER,22.5X30X1

€ 2.50

10

13136031
ref: 10
25T

TOP GEAR-DRIVE SHAFT

€ 33.00

11

13127029
ref: 11
12T

SHAFT-DRIVE

€ 86.00

12

13239002
ref: 12

DRUM ASSY-GEAR CHANGE

€ 125.00

13

220B0614
ref: 13

SCREW-PAN HEAD,6X14

€ 2.00

14

464H0600
ref: 14

WASHER-LOCK,6MM

€ 0.50

15

13142009
ref: 15

PLATE-CHANGE DRUM PIN

€ 6.00

16

92042014
ref: 16

PIN-GEAR CHANGE DRUM

€ 0.50

17

210071003
ref: 17

ROTOR,TOP & NEUTRAL

€ 4.50

18

410B0600
ref: 18

WASHER-PLAIN-SMALL,6M

€ 0.50

19

220B0616
ref: 19

SCREW-PAN HEAD,6X16

€ 2.50

20

13146002
ref: 20

GASKET,NEUTRAL SWITCH (NAS)

€ 2.50

21

131511001
ref: 21

SWITCH-COMP,NEUTRAL

€ 9.50

22

13140050
ref: 22

FORK-SELECTOR

€ 38.00

23

92043005
ref: 23

PIN,DOWEL,8X15

€ 4.50

24

550D3020
ref: 24

PIN-COTTER,3.0X20

€ 2.00

25

13140049
ref: 25

FORK-SELECTOR

€ 38.00

26

13140030
ref: 26

FORK-SELECTOR

€ 60.50

27

480J1500
ref: 27

CIRCLIP-TYPE-C,15MM

€ 1.00

28

92022169
ref: 28
I.D=16.5

WASHER-PLAIN

€ 3.00

29

13073009
ref: 29
29T

IDLE GEAR-KICKSTARTER

€ 68.50

30

13129051
ref: 30
32T

LOW GEAR,OUTPUT SHAF

€ 25.50

31

13137016
ref: 31
18T

TOP GEAR-OUTPUT SHAFT

€ 38.50

32

600A0500
ref: 32

BALL-STEEL,5/32

€ 0.50

33

92024031
ref: 33

WASHER,TOOTHED,22.5X3

€ 4.00

34

13133021
ref: 34
24T

3RD GEAR-OUTPUT SHAFT

€ 41.50

35

13135012
ref: 35
21T

4TH GEAR-OUTPUT SHAFT

€ 49.50

36

13131029
ref: 36
28T

2ND GEAR-OUTPUT SHAFT

€ 68.50

37

13128028
ref: 37

SHAFT-OUTPUT

€ 78.50

38

92027180
ref: 38

COLLAR,ENG SPROCKET

€ 29.50

39

92055022
ref: 39

'O' RING

€ 4.00

40

13249002
ref: 40
S.T.D

ENG SPROCKET ASY,14T

€ 18.00

40

13249001
ref: 40
OPTION

ENG SPROCKET ASY,13T

€ 43.00

40

13249003
ref: 40
OPTION

ENG SPROCKET,ASY,15T

€ 35.50

41

92024002
ref: 41

WASHER,CLAW,12.5X30X0

€ 3.50

42

92016024
ref: 42

NUT,12MM

€ 3.50
