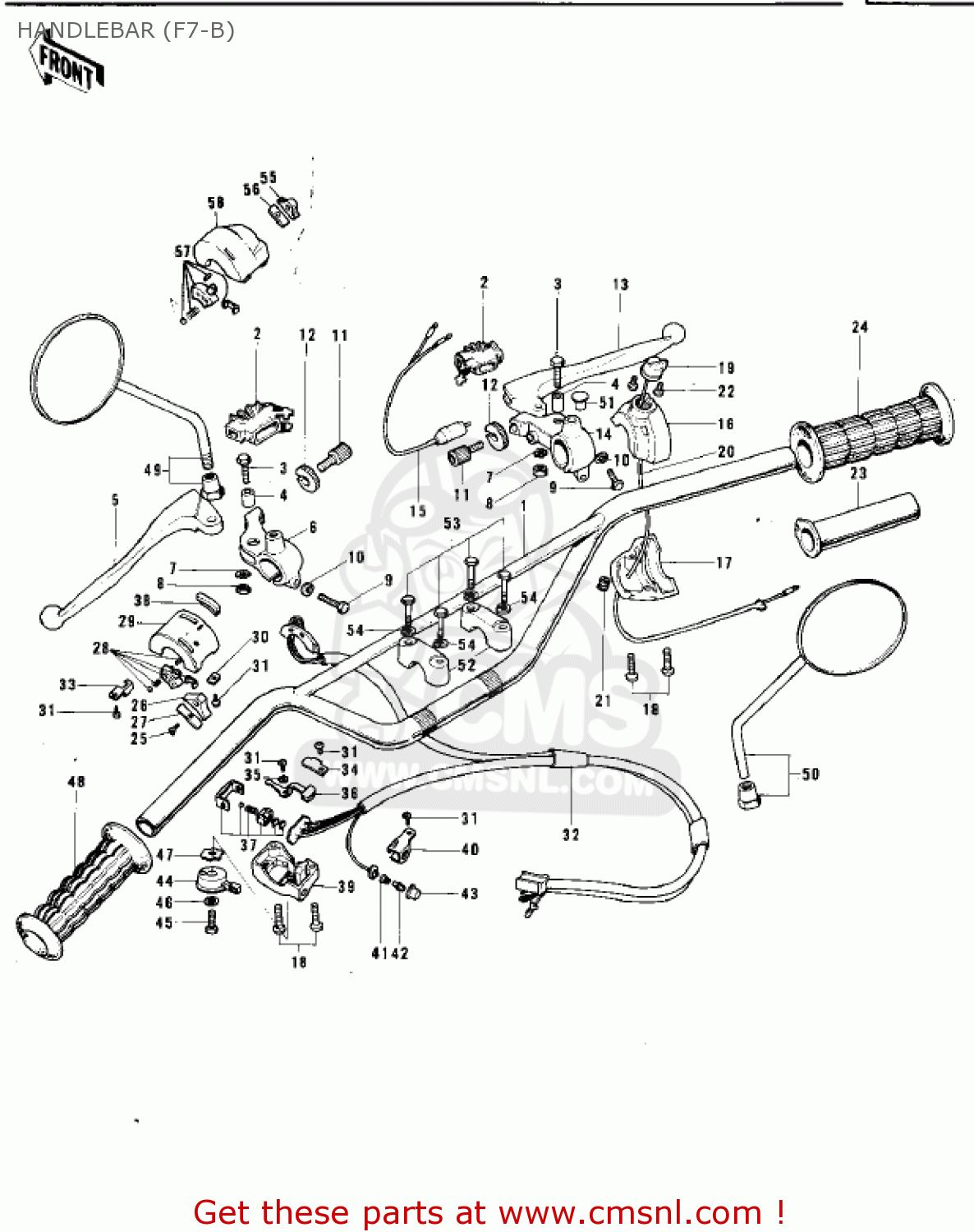

HANDLEBAR (F7-B)

ref

part #

description

quantity

1

46004016
ref: 1

HANDLEBAR

€ 69.00

2

46071002
ref: 2

DUST COVER

€ 12.50

3

92007020
ref: 3

BOLT-HEX HEAD,5X20

€ 2.50

4

46059011
ref: 4

COLLAR,LEVER

€ 3.50

5

46092015
ref: 5

LEVER-GRIP,CLUTCH

€ 11.50

6

4609401121
ref: 6

HOLDER-CLUTCH LEV,BLK

€ 23.00

7

464H0500
ref: 7

WASHER-LOCK,5MM

€ 0.50

8

312B0500
ref: 8

NUT-HEX,5MM

€ 0.50

9

110N0625
ref: 9

BOLT-HEX HEAD,6X25

€ 3.50

10

410B0600
ref: 10

WASHER-PLAIN-SMALL,6M

€ 0.50

11

46055010
ref: 11

SCREW,CABLE ADJUST

€ 21.00

12

46056005
ref: 12

NUT-LOCK

€ 6.00

13

46058004
ref: 13

LEVER-GRIP,FRONT BRAK

€ 24.00

14

4606000921
ref: 14

HOLDER,BRAKE LEVER,FR

€ 27.00

15

27021004
ref: 15

SWITCH,FR BRAKE LAMP

€ 23.00

?

4601802010
ref: ?
Includes items 16 -

CASE ASSY,R.H.

€ 59.50

16

46041008
ref: 16

CASE-R.H UPPER

€ 23.50

17

46023008
ref: 17

CASE-R.H LOWER

€ 17.50

18

220B0525
ref: 18

SCREW-PAN-CROS,5X25

€ 2.50

19

46027008
ref: 19

SWITCH-ENGINE STOP

€ 15.50

20

46082021
ref: 20

WIRING HARNESS-STP SW

€ 2.00

21

92071060
ref: 21

GROMMET-WIRING HARNES

€ 0.50

22

220B0305A
ref: 22

SCREW-PAN HEAD,3X5

€ 1.00

?

46019020
ref: ?
Includes items 23 an

GRIP ASSY-THROTTLE

€ 14.00

24

46061013
ref: 24

RUBBER-R.H GRIP

€ 9.50

?

46091007
ref: ?
Includes items 18 an

CASE ASSY-L.H

€ 40.00

25

221B0308A
ref: 25

SCREW-CNTSNK HD,3X8

€ 2.50

26

46044009
ref: 26

KNOB-L.H SWITCH

€ 3.00

27

46031006
ref: 27

SPRING-L.H SW KNOB,B

€ 3.50

28

46089008
ref: 28

SWITCH-L.H

€ 8.00

29

46086015
ref: 29

CASE,UPPER,LH

€ 31.50

30

46085019
ref: 30

HOLDER-L.H SW UPPER,B

€ 0.50

31

220B0305A
ref: 31

SCREW-PAN HEAD,3X5

€ 1.00

32

46082020
ref: 32

WIRING HARNESS-L.H SW

€ 18.50

33

46085020
ref: 33

HOLDER-L.H SW UPPER,A

€ 1.50

34

46085016
ref: 34

HOLDER-L.H SW LOWER,A

€ 2.00

35

92095010
ref: 35

WASHER

€ 2.50

36

46044010
ref: 36

KNOB-SWITCH

€ 6.00

37

46089007
ref: 37

SLIDE BLOCK AY-L.H SW

€ 10.00

38

46089009
ref: 38

CAP-L.H SWITCH

€ 1.50

39

46077017
ref: 39

CASE-L.H LOWER

€ 7.50

40

46085017
ref: 40

HOLDER-L.H SW LOWER,B

€ 1.00

41

270101009
ref: 41

SWITCH ASSY,HORN BUTN

€ 5.50

42

270101009
ref: 42

SWITCH ASSY,HORN BUTN

€ 5.50

43

270101009
ref: 43

SWITCH ASSY,HORN BUTN

€ 5.50

44

4609600810
ref: 44

LEVER,STARTER,BLACK

€ 17.00

45

110B0608
ref: 45

BOLT-HEX HEAD,6X8

€ 0.50

45

112B0608
ref: 45

BOLT-HEX,HEAD,6X8

€ 0.50

46

410B0600
ref: 46

WASHER-PLAIN-SMALL,6M

€ 0.50

47

92095012
ref: 47

WASHER-LOCK

€ 3.50

48

46075018
ref: 48

RUBBER-L.H GRIP

€ 10.00

49

56003009
ref: 49

MIRROR-ASSY,LH

€ 50.00

50

56002020
ref: 50
OPTION

MIRROR-ASSY,RH

€ 47.50

51

92102009
ref: 51
NOT REQUIRED FOR 560

CAP-RR VIEW MIRROR

€ 3.00

52

46012008
ref: 52

HOLDER-HANDLE,UPP

€ 23.00

53

920011405
ref: 53

BOLT,8X38

€ 10.00

54

461F0800
ref: 54

WASHER-SPRING,8MM

€ 0.50

?

46091019
ref: ?
Includes items 18 an

CASE ASSY,L.H

€ 40.00

55

46044011
ref: 55
*

KNOB-L.H SWITCH

€ 6.00

56

46031003
ref: 56
*

SPRING-L.H SW KNOB

€ 1.50

57

46089012
ref: 57
*

SWITCH ASSY,L.H

€ 8.00

58

4608601621
ref: 58
*

CASE-L.H UPPER,BLACK

€ 12.50

all assemblies
