IGNITION/GENERATOR/RECTIFIER ('7
F7C 1974 USA

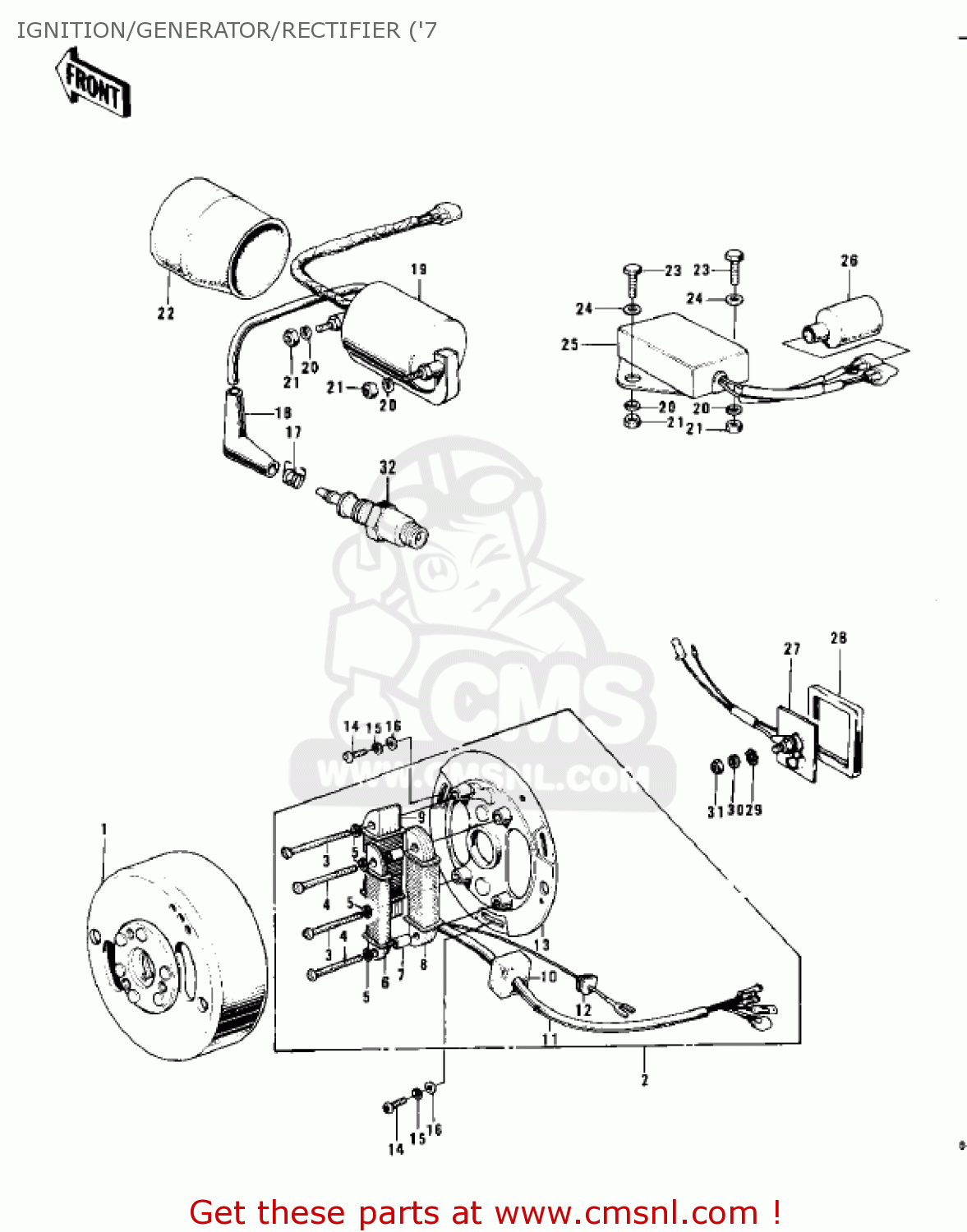

Ignition/generator/rectifier ('7 diagram F7C 1974 USA
IGNITION/GENERATOR/RECTIFIER ('7 F7C 1974 USA
×
prices are in EUR
ref
part #
description
quantity
1
21050015
ref: 1
FLYWHEEL
€ 357.00
2
21003011
ref: 2
STATOR
€ 319.50
3
220E0430
ref: 3
SCREW-PAN-CROS
€ 2.50
3
220E0430
ref: 3
SCREW-PAN-CROS
€ 2.50
4
220E0435A
ref: 4
SCREW-PAN HEAD,4X35
€ 4.50
4
220E0435A
ref: 4
SCREW-PAN HEAD,4X35
€ 4.50
5
461F0400
ref: 5
WASHER-SPRING,4MM
€ 0.50
6
21157001
ref: 6
COIL-PULSING
€ 132.00
7
21033002
ref: 7
COLLAR
€ 1.50
8
21049011
ref: 8
COIL-PRIMARY
€ 112.50
9
21047012
ref: 9
COIL-LIGHTING
€ 66.50
10
92071050
ref: 10
GROMMET-WIRING HARN
€ 5.50
11
21029020
ref: 11
WIRING HARNESS-MAG
€ 21.00
12
21017005
ref: 12
GROMMET-WIRING HARN,C
€ 2.00
13
21048013
ref: 13
BASE-MAGNETO
€ 39.00
14
220B0520
ref: 14
SCREW-PAN-CROS
€ 0.50
15
461F0500
ref: 15
WASHER-SPRING,5MM
€ 0.50
16
410B0500
ref: 16
WASHER-PLAIN-SMALL,5M
€ 0.50
17
92101001
ref: 17
SPRING-SPARK PLUG CAP
€ 1.50
18
21130009
ref: 18
CAP-SPARK PLUG
€ 15.00
19
21121039
ref: 19
COIL-IGNITION
€ 155.00
20
461F0600
ref: 20
WASHER-SPRING,6MM
€ 0.50
21
311B0600
ref: 21
NUT,6MM
€ 0.50
22
92073016
ref: 22
RUBBER CAP-IGN COIL
€ 4.50
23
112G0618
ref: 23
BOLT-UPSET
€ 0.50
24
410B0600
ref: 24
WASHER-PLAIN-SMALL,6M
€ 0.50
25
21119013
ref: 25
IGNITION UNIT
€ 554.50
26
26009003
ref: 26
COVER-WIRING HARNESS
€ 2.00
27
210615001
ref: 27
RECTIFIER
€ 29.00
28
32103020
ref: 28
MAT
€ 1.50
29
464H0500
ref: 29
WASHER-LOCK,5MM
€ 0.50
30
461F0500
ref: 30
WASHER-SPRING,5MM
€ 0.50
31
311B0500
ref: 31
NUT-HEX
€ 0.50
32
B9HSA
ref: 32
SPARK PLUG,B9HS
€ 2.50
32
B9HSA
ref: 32
SPARK PLUG,B9HS
€ 2.50
32
B9HSA
ref: 32
SPARK PLUG,B9HS
€ 2.50
32
B9HSA
ref: 32
SPARK PLUG,B9HS
€ 2.50
