SWING ARM/SHOCK ABSORBERS ('74-'
F7C 1974 USA

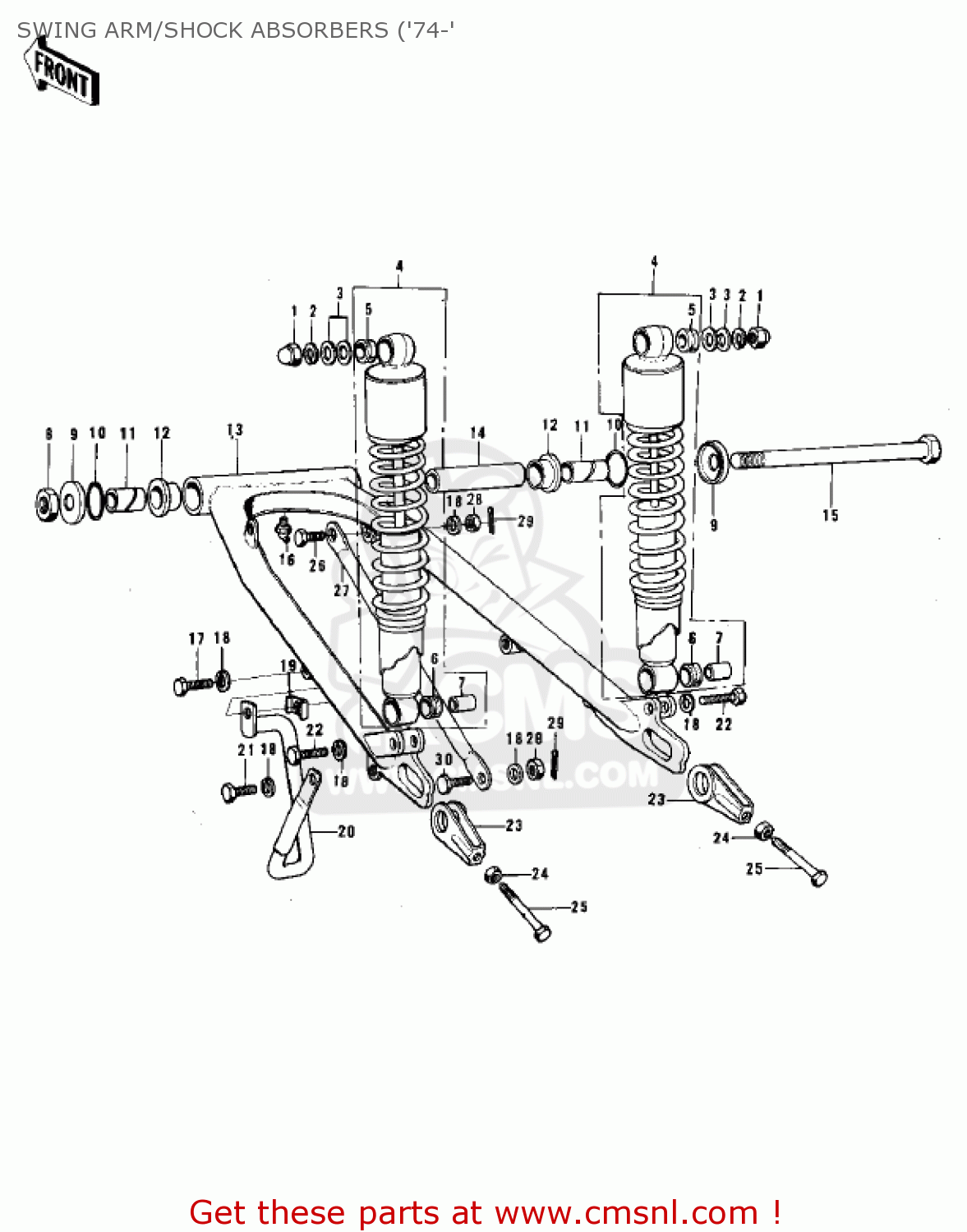

Swing arm/shock absorbers ('74-' diagram F7C 1974 USA
SWING ARM/SHOCK ABSORBERS ('74-' F7C 1974 USA
×
prices are in EUR
ref
part #
description
quantity
1
92020003
ref: 1
NUT-SHOCK ABSORBER
€ 4.00
2
461F1000
ref: 2
WASHER-SPRING,10MM
€ 0.50
3
92022044
ref: 3
WASHER,10.5X26X2.3
€ 2.50
4
45014075
ref: 4
SHOCK ABSORBER-REAR
€ 116.50
5
45017018
ref: 5
DAMPER,SHOCKABSORBER
€ 4.00
6
920751020
ref: 6
DAMPER,SHOCKABSORBER
€ 3.00
7
45016003
ref: 7
COLLAR,SHOCKABSORBER
€ 12.50
8
92019009
ref: 8
NUT,LOCK,12MM
€ 5.00
9
33035005
ref: 9
CAP,SWING ARM
€ 5.50
10
671B2530
ref: 10
O RING,30MM
€ 3.00
11
33034016
ref: 11
SLEEVE,12.1X22X39
€ 14.50
12
33033009
ref: 12
BUSHING,SWING ARM
€ 57.00
14
33036002
ref: 14
COLLAR,SWING ARM
€ 8.00
15
33032029
ref: 15
SHAFT-SWING ARM
€ 18.50
16
92005002
ref: 16
GREASE NIPPLE
€ 4.00
17
920011254
ref: 17
BOLT,HEX HEAD,10X50
€ 2.50
18
461F1000
ref: 18
WASHER-SPRING,10MM
€ 0.50
19
92017009
ref: 19
NUT-CHAIN GUARD
€ 1.00
20
55020005
ref: 20
GUARD-CHAIN
€ 12.00
21
113G1018
ref: 21
BOLT,HEX HEAD,10X18
€ 2.50
22
113N1035
ref: 22
BOLT-HEX HEAD,10X35
€ 6.00
23
33040048
ref: 23
CHAIN ADJUSTER
€ 51.00
24
312B0800
ref: 24
NUT,8MM
€ 0.50
25
920011399
ref: 25
BOLT,8X50
€ 6.00
26
92003017
ref: 26
BOLT-TRQ LINK 10X25
€ 3.50
27
43007018
ref: 27
TORQUE LINK,REAR BRK
€ 8.50
28
314B1000
ref: 28
NUT,10MM
€ 0.50
29
550D2015
ref: 29
PIN-COTTER,2.0X15
€ 1.00
30
92003003
ref: 30
BOLT-HEX HEAD,10X32
€ 4.00
