CHASSIS ELECTRICAL EQUIPMENT
F7C 1974 USA

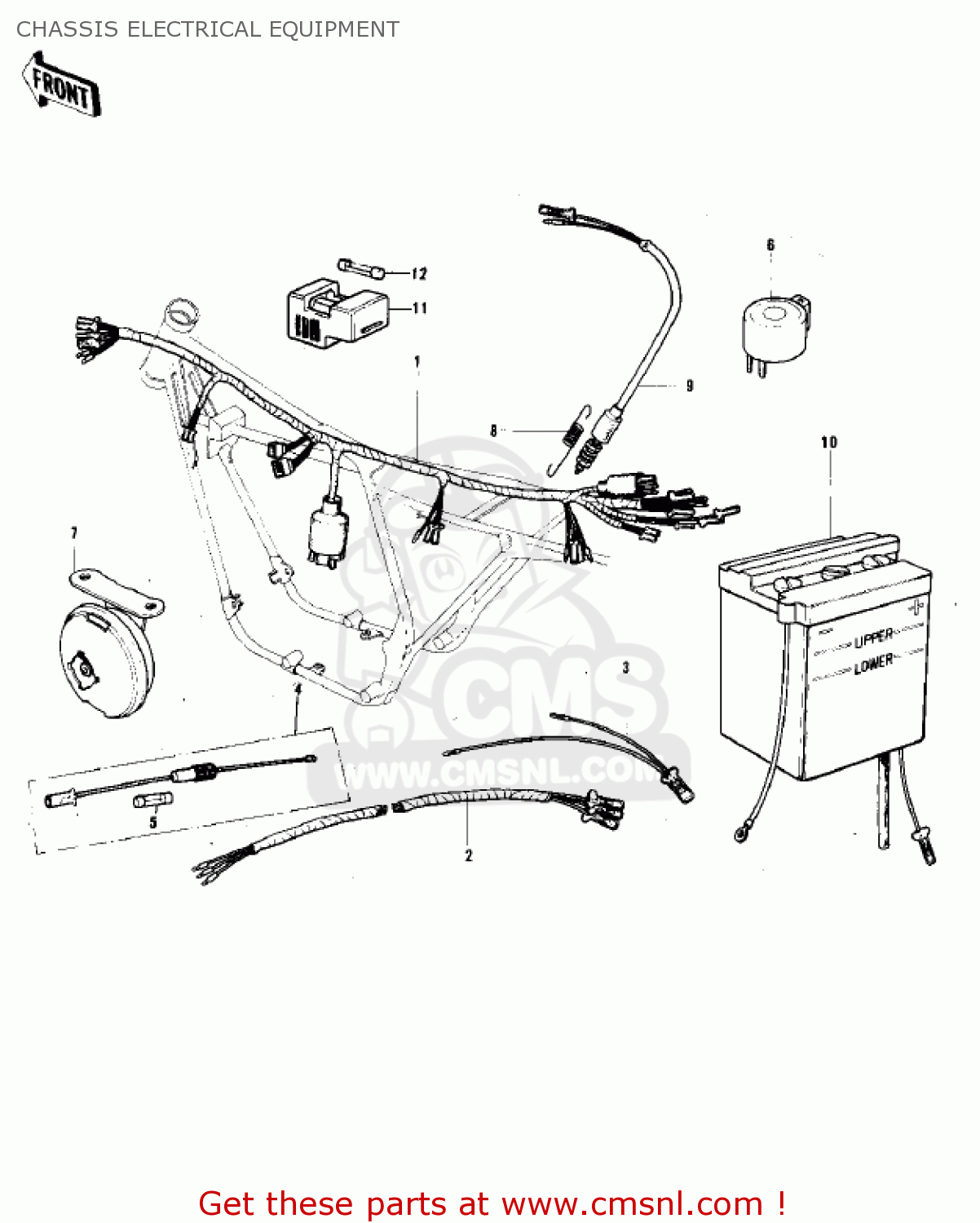

Chassis electrical equipment diagram F7C 1974 USA
CHASSIS ELECTRICAL EQUIPMENT F7C 1974 USA
×
prices are in EUR
ref
part #
description
quantity
1
26001076
ref: 1
WIRING HARNESS,MAIN
€ 244.50
2
26002029
ref: 2
WIRING HARNESS-REAR
€ 8.00
3
26011042
ref: 3
WIRE-LEAD
€ 3.00
4
26004017
ref: 4
FUSE-ASSY
€ 10.00
5
26006003
ref: 5
FUSE 10A
€ 3.00
6
27002013
ref: 6
RELAY-ASSY,TURN SIGNA
€ 27.00
7
27003061
ref: 7
HORN
€ 36.00
8
27011004
ref: 8
SPRING-BRAKE LAMP SW
€ 2.50
9
27010018
ref: 9
SWITCH-BRAKE LAMP
€ 23.00
10
K26012020
ref: 10
6N4-2A-5
BATTERY,YUA,6N4-2A-5
€ 55.50
11
26016003
ref: 11
HOLDER,SPARE FUSE
€ 8.50
12
26006003
ref: 12
FUSE 10A
€ 3.00
